Introduction

Welcome

Product description

Vaporizer sub-system
Delivery sub-system
Table-top and mobile
configurations
Table-top vaporizer sub-
system configuration
V1.0 VisualSonics Vevo Integrated Rail System Operator Manual
Need help? Call us toll-free: 1-866-416-4636 or E-mail us: support@visualsonics.com
Thank you for choosing the Vevo™ Compact Anesthesia System, the
Visualsonics' anesthesia solution for small animals, such as mice.
The Vevo Compact Anesthesia System integrates two sub-systems: a
vaporizer sub-system and a delivery sub-system.
The vaporizer sub- system mixes oxygen and anesthesia into a vapor. It
features a stand assembly with oxygen flowmeter, oxygen flush valve,
precision vaporizer and a 10-foot oxygen hose assembly with threaded
DISS (Diameter Index Safety System) connections.
The delivery system supplies the metabolic and anesthetic gas mixture to
the mouse. It features a dual breathing circuit that includes a 2-liter
induction chamber breathing circuit, a mouse mask breathing circuit, and
two activated charcoal filters for waste gas removal.
The system is also designed to function as a companion to the Vevo
Integrated Rail System and the Vevo 660™ High Resolution System to
provide an efficient and complete mouse imaging workspace.
The Vevo Compact Anesthesia System is offered in two system
configurations: a table-top configuration and a mobile configuration.

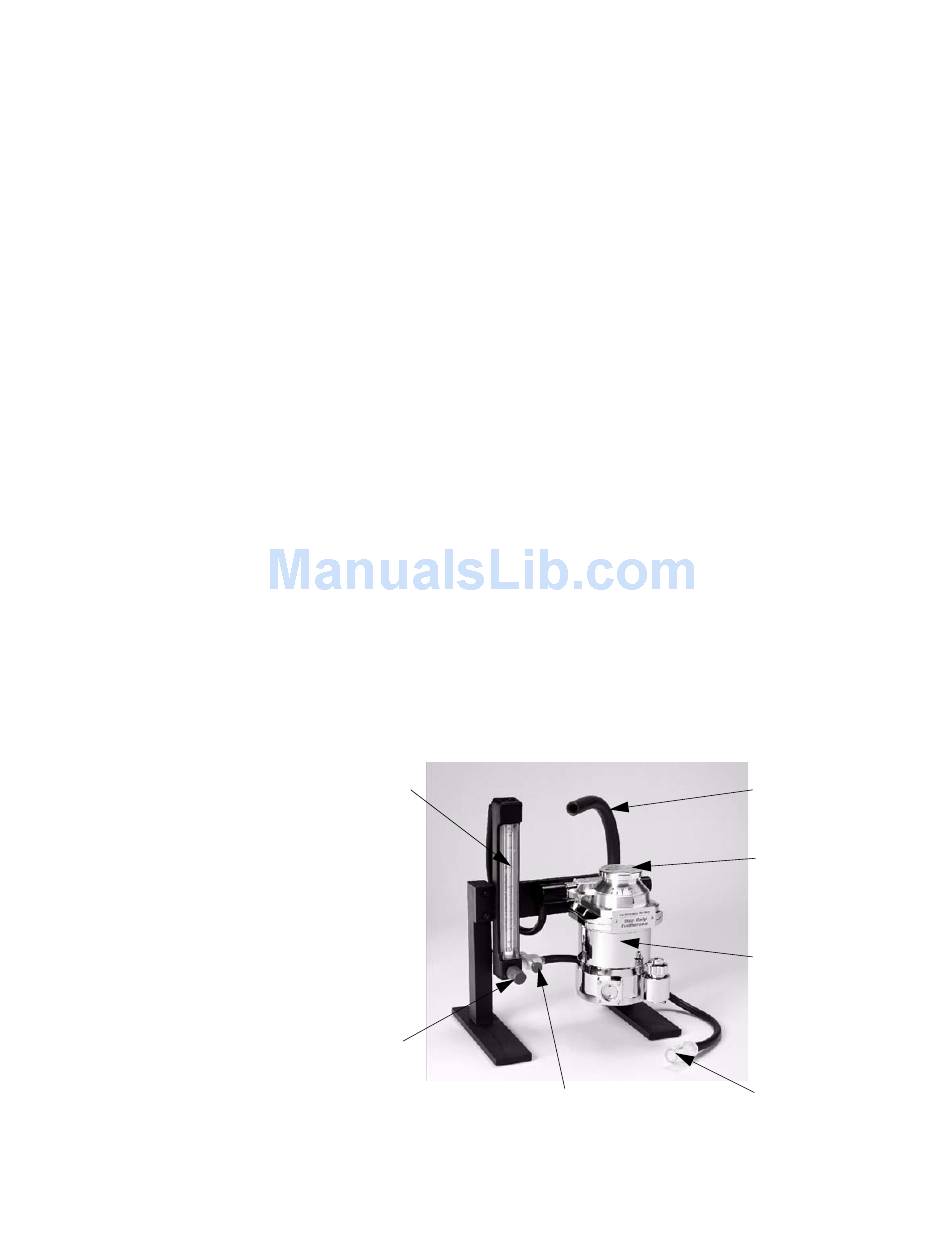

The compact and versatile table-top sub-system features a tiny footprint
of 8" x 11", making it easy to integrate into existing lab counter space. The
sub-system includes weight-balanced handles and non-skid feet so you
can set it in place anywhere - quickly, safely and securely.
Oxygen
flowmeter
Flow
control
knob
Oxygen flush
Introduction
Carrying
handles
Vaporizer
dial
Vaporizer
Common
outlet
