Summary of Contents for NewLine LED 75

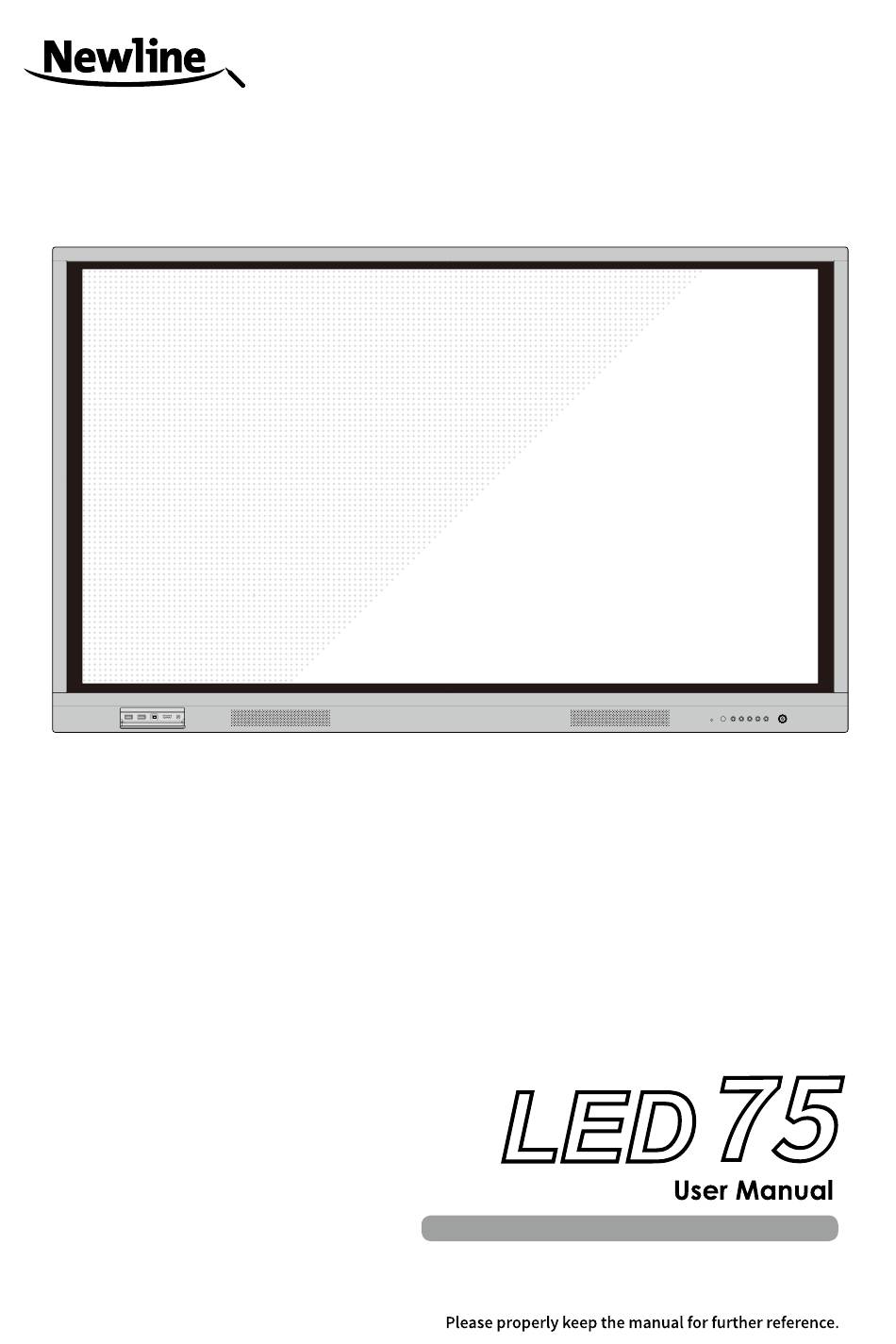

  • Page 1 Collaboration Touch Screen and Interactive Dispaly...
  • Page 2 Welcome: Thanks for purchasing this product. Please read the instructions carefully before using this product. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 3: Table Of Contents

    Contents About This Document Safety Instruction Parts and Functions Parts Ports Buttons Remote Controller Installation Guide Safety Precautions Installation Precautions Installation Installing the Internal PC (Optional) Turning On/Off Power On Power Off Calibration Menu Select Signal Source Picture Setting Sound Setting Option Setting Audio Only Function Multi-Media...
  • Page 4: About This Document

    About This Document This document describes multiple functions, instructions, and notes about the product. Symbols are used in this document to indicate operations that need particular attention. The symbols are defined as follows: Provides additional information to supplement operation in the main NOTE text.
  • Page 5: Safety Instruction

    Safety Instruction For your safety, please read the following instruction before you use the product. Serious injury or property damage may be caused by improper operations. Do not try to repair the product on your own. WARNING Disconnect the product from the power supply immediately if major failures occur.
  • Page 6 WARNING Do not put items on the top of the product. Do not put items, such as a container for liquid (a vase, flowerpot, cosmetics ● or liquid medicine) on the top of the product. If any water or liquid is spilled on the product, the product may short circuit ●...
  • Page 7 CAUTION Keep the product away from the radio. The product complies with the international EMI standard to prevent radio interference. However, interference may still exists and causes noise in the radio. If noise occurs in the radio, try the following solutions. Adjust the direction of the radio antenna to avoid the interference from the product.
  • Page 8: Parts And Functions

    Parts and Functions Thank you for choosing interactive touch screen. As our latest independently developed and produced human-machine interactive products, Under no signal, if there is no operation, the interactive touch screen will automatically shut down. The interactive touch screen are multi-functional teaching displays for interactive teaching, digital demonstration, multi-media presentation and touch operations.
  • Page 9: Parts

    Parts Front View ◆ Rear View ◆...
  • Page 10 Speakers Power On/Off Front Ports Power Supply Plug Front Ports Cover Power Switch Remote control receiver Internal PC Port (OPS) Front Buttons Rear Ports...
  • Page 11: Ports

    Ports CAUTION Front USB ports and rear USB 3.0/USB 2.0 ports switch connections based on signal sources. If the current signal source is reading the data from an external product connecting to the port, please switch the signal source after the data reading is complete. Otherwise, the data or product may be damaged.
  • Page 12 Rear Ports ◆ Note Touch Port 2 corresponds to VGA-IN, HDMI 2 and HDMI 3. Name Function Description The input port 3 for high definition signal, which is used with the HDMI 3 “TOUCH 2” to operate PC in the way of touch control. The input port 2 for high definition signal, which is used with the HDMI 2 “TOUCH 2”...
  • Page 13 Rear Port Panel 2 ◆ Name Function Description The port used to connect to the speaker or ear phone. EAR PHONE The input port for series signals, which is used by specific control device of serial port to input serial port protocol in order to control the RS232 panel.
  • Page 14: Buttons

    Buttons Buttons Operations Functions Short press Decrease the sound volume Vol- Long press for more Decrease the sound volume continuously than 1 second Short press Increase the sound volume Vol+ Long press for more Increase the sound volume continuously than 1 second Mute Short press Mute/Unmute...
  • Page 15 Switch to HDMI 1 signal source Switch to display mode (Standard – Energy saving) Enable Audio Only mode Reserve button...
  • Page 16 Remote Controller Instructions ◆ The usage scope of the remote controller includes the vertical distance within five meters in front of the product, and the area within an angle of 30 degrees from the vertical point to the left and the right.
  • Page 17: Installation Guide

    Installation Guide Safety Precautions Installation Environment ◆ Do Not Install Tilted Installation Direction ◆...
  • Page 18: Installation Precautions

    Installation Precautions Weight Loading ◆ Weight of the product: 125.7 lb/57.0 kg (75”) When using a mobile stand, ensure that the weight of the product is less than the ● loading capacity of the mobile stand. When using the wall-mount bracket, ensure that the wall can support the weight of ●...
  • Page 19 Ventilation ◆ Ensure adequate ventilation and/or an air conditioned environment. We recommend keeping certain distances from the side of the product to the wall or panels. Ventilation requirements are shown in following figure:...
  • Page 20: Installation

    Installation The dimensions of the four bracket mounting holes on the back panel are VESA MIS-Fcompliant (75”: 800 x 400 mm/31.50 x 15.75 in;). Use metric M8 screws with length of 10 mm to 15 mm (0.40 to 0.59 in) to secure the touch screen with the mounting system.
  • Page 21: Installing The Internal Pc (Optional)

    Installing the Internal PC (Optional) CAUTION The internal PC does not support hot plugging. Therefore, you must insert or remove it when the screen is powered is off. Otherwise, the screen or internal PC may be damaged. You will need to purchase the internal PC separately. Perform the following steps to install the internal PC.
  • Page 22: Turning On/Off

    Turning On/Off Power On Step 1: Plug the power supply into the power outlet fully and plug the power connector into the side of the product. Ensure the power supply is in the range of 100V to 240V with frequency at 50 Hz/60 Hz ± 5%. The power current must be grounded.
  • Page 23: Power Off

    Power Off Step 1: Press the power button on the front panel or the power button on the remote control again. the power indicator will turn to red. Step 2: If you are not going to use the product for an extended period of time, we recommend you to switch the power switch to “Off”.
  • Page 24 Step 4: Select in the Tablet PC Settings window. Step 5: Select Touch input from the option and start calibration.
  • Page 25 Step 6: Use finger or pencil to click and hold the center of the flickering cross Do not release until moves to the next positioning point. Complete the calibration process as instructed. To provide calibration samples, tap the crosshair each time that it appears on the screem.
  • Page 26: Menu

    Menu After the interactive touch screen is powered on, press MENU to enter the user menu setting interface. The menu items include INPUT SOURCE, PICTURE, SOUND, and OPTION. By default, the PICTURE interface appears. Use your finger to perform screen touch operation or press ◄/►/▲/▼ on the remote controller to select a menu item and press OK to complete the menu switching and option setting in the menu.
  • Page 27: Sound Setting

    Sound Setting In the SOUND interface, you can select the Standard, Meeting, Theater, Classroom, or User mode for sound setting. Only in the User mode, you can manually adjust the Treble, Bass, and Balance values. Drag the sliders on the right sides of to adjust the volume and brightness ●...
  • Page 28: Audio Only Function

    Option Description OSD Language Sets the on-screen menu language. Sets the aspect ratio for the screen display. Options include 16:9, Point- Aspect Ratio to-point, Panorama, Zoom2, Zoom1, 14:9, 4:3, Auto, and Just Scan. Color Range Sets color range. Options include 0-255, 16-235, and auto. Enables or disables the machine sleep function.
  • Page 29: Multi-Media

    Multi-Media Press SOURCE to enter the signal source selection menu. Press ◄/►/▲/▼ to switch to DMP signal source and press OK on the remote controller to enter the single source. INPUT SOURCE PICTURE SOUND OPTION HDMI 1 HDMI 2 HDMI 3 Composite YPbPr Multi-media File Type...
  • Page 30: Enter Usb Flash

    Press ◄/► on the remote controller or screen to select the USB flash. ● Press OK on the remote controller or directly click the icon to enter the corresponding ● USB flash. Press EXIT on the remote controller or click to return to the preview menu.
  • Page 31: Eco Mode

    ECO Mode CAUTION Please switch off the panel when it is not used and enable the ● function of Audio Only when you do not need to watch the display, which help reduce power consumption and save energy. On the premise of ensuring viewing effect, the energy consumption ●...
  • Page 32: Serial Port Control

    Serial Port Control The RS-232 port of the interactive touch screen is defined as follows: Connect RS-232 port to the PC or controlling device. Enable RS-233 serial port connection and complete the following configuration. Port: COM1 (Set according to PC or controlling device’s port number) Bit rate 38400 Odd/even check...
  • Page 33 Function Controlling Code Function Controlling Code 7F 08 99 A2 B3 C4 02 FF 7F 08 99 A2 B3 C4 02 FF Auto ADJ 01 21 CF 01 20 CF 7F 08 99 A2 B3 C4 02 FF 7F 08 99 A2 B3 C4 02 FF 01 23 CF 01 22 CF 7F 08 99 A2 B3 C4 02 FF...
  • Page 34: Specifications Of Pc Mode (Vga Input)

    Specifications of PC Mode (VGA Input) Pixel Horizontal Vertical Horizontal/ Standard Resolution Clock Frequency Frequency Vertical Sync (MHz) (kHz) (Hz) Polarity (TTL) VESA 1024x768 65.00 48.363 60.004 VESA 1080x720 74.25 VESA 1280x960 VESA 1280x1024 63.981 60.020 VESA 1360x768 85.50 47.712 60.015 VESA 1440x900...
  • Page 35: Formats Supported By Multi-Media

    Formats Supported by Multi-media Media category Formats Photo Progressive JPEG, Baseline JPEG, Non-Interlaced, Interlaced Movie MPEG1, MPEG2, MPEG4, H.264, HEVC, VC1 Music WMA, MP3, AAC, M4A, AC-3 Text...
  • Page 36: Faq & Troubleshooting

    FAQ & Troubleshooting Before you contact the technical support staff, please identify a fault according to the following table. If the fault cannot be restored based on the solutions, contact the local distributor for help. For your safety, please do not repair the product by your own. Failure Possible Cause Solution...
  • Page 37 Symptom Possible Cause Solution Find out the electric appliance that causes the interference ● and move it away from the interactive touch screen. Image or sound is interrupted. Do not share the power socket of the panel with the electric ●...
  • Page 38: Maintenance Tips

    Maintenance Tips Do not put or install the product near a heat source or under direct sunlight, or ● in dusty or humid places, or somewhere the product may be hit or damaged by mechanical vibration. To maximize the performance, it needs to be put away from equipment such as grid, large metal objects and radar stations as far as possible.
  • Page 39: Clean The Infrared Tube

    Clean the Infrared Tube The interactive touch screen uses the horizontal and vertical infrared matrix to detect and locate the user's touch. The screen is surrounded by an infrared tube (including the infrared acceptor and emitter), which forms an infrared net covering on the screen surface.
  • Page 40: Technical Parameters

    Technical Parameters Specification Parameter Backlight type Size 1770mmx1071mmx109mm Aspect ratio 16:9 Viewing angle 178° Physical resolution 3840 × 2160 Pixel Display color 10bit(D), 1.07Billon colors Display contrast 4000:1 Working voltage 100 - 240V, 50/60Hz Standby power consumption ≤ 0.5W Rated power ≤...
  • Page 41: More Information

    More Information For More Information Please visit our website (www.newline-interactive.com) for detailed instruction manual. Our company is devoted to product innovation and technology enhancement. Therefore, we may change product spec and information without notice. Product pictures in the manual are for reference only, please refer to actual products.
