Vega VEGAPULS 66 Operating Instructions Manual
Standpipe version 4...20 ma/hart - two-wire
Hide thumbs
Also See for VEGAPULS 66:
- Operating instructions manual (88 pages) ,
- Quick setup manual (24 pages) ,
- Safety manual (16 pages)
Related Manuals for Vega VEGAPULS 66
Summary of Contents for Vega VEGAPULS 66
-
Page 1: Operating Instructions

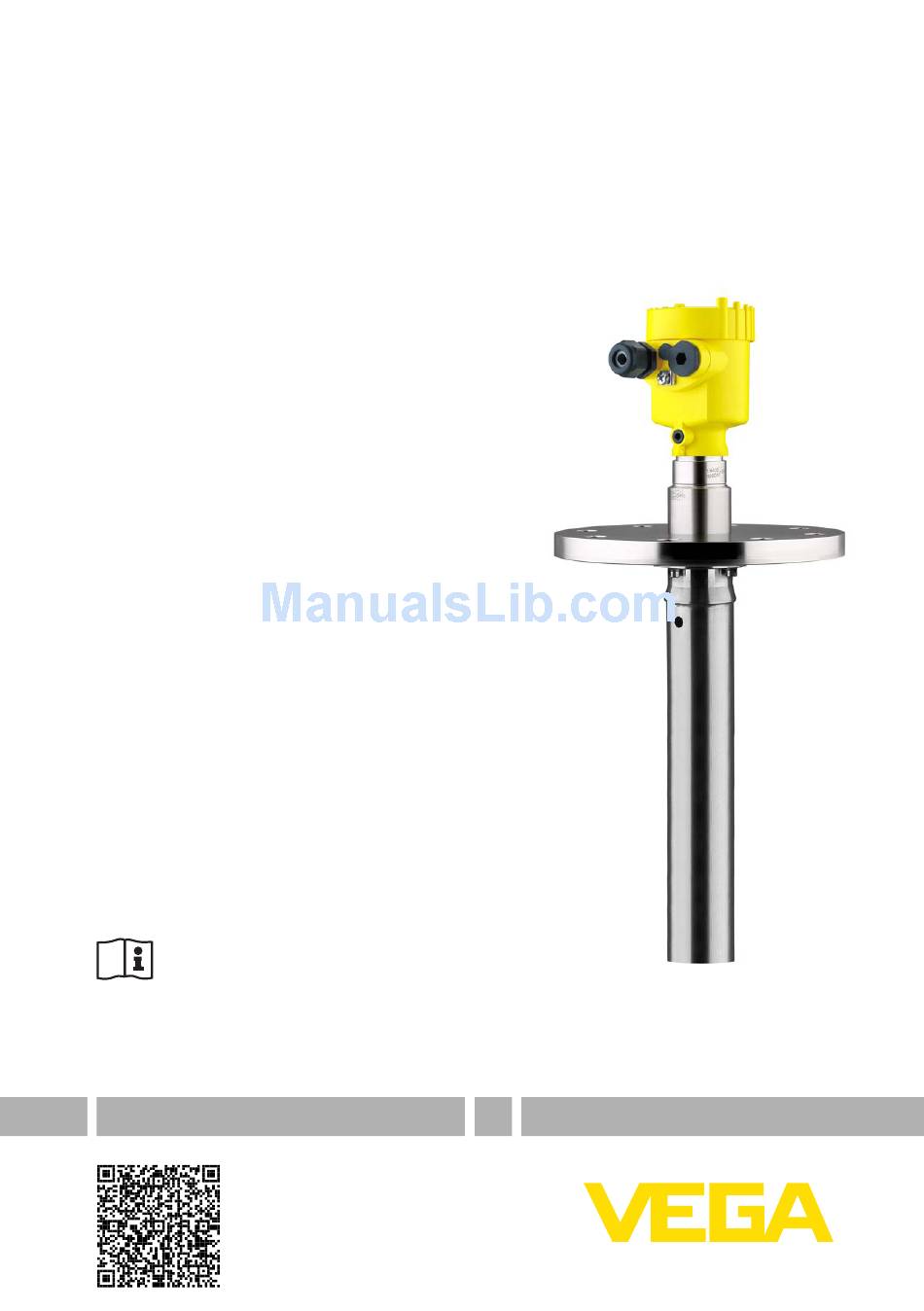

Operating Instructions VEGAPULS 66 standpipe ver- sion 4 … 20 mA/HART - two-wire Document ID: 28741... -
Page 2: Table Of Contents
Set up with PACTware and other adjustment programs Connect the PC ......................34 Parameter adjustment with PACTware ................35 7.3 Parameter adjustment with AMS™ and PDM ..............36 Saving the parameter adjustment data ................37 8 Maintenance and fault rectification 8.1 Maintenance ........................38 VEGAPULS 66 standpipe version • 4 … 20 mA/HART - two-wire... - Page 3 Supplementary documents appropriate to the ordered version come with the delivery. You can find them listed in chapter "Product descrip- tion". Instructions manuals for accessories and replacement parts Tip: To ensure reliable setup and operation of your VEGAPULS 66, we of- fer accessories and replacement parts. The corresponding documen- tations are: • 27835 - Display and adjustment module PLICSCOM •...
-
Page 4: About This Document
This arrow indicates a single action. Sequence of actions Numbers set in front indicate successive steps in a procedure. Battery disposal This symbol indicates special information about the disposal of bat- teries and accumulators. VEGAPULS 66 standpipe version • 4 … 20 mA/HART - two-wire... -
Page 5: For Your Safety
Safety label on the instrument The safety approval markings and safety tips on the device must be observed. VEGAPULS 66 standpipe version • 4 … 20 mA/HART - two-wire... -
Page 6: Ce Conformity
FCC ID: O6QPULS6566 • IC: 3892A-PS6566 Modifications not expressly approved by VEGA will lead to expiry of the operating licence according to FCC. VEGAPULS 66 is in conformity with part 15 of the FCC regulations. Take note of the respective operating regulations: • The instrument must not cause any interfering emissions •... -
Page 7: Environmental Instructions
That is why we have introduced an environment management system with the goal of continuously improving company environmental pro- tection. The environment management system is certified according to DIN EN ISO 14001. Please help us fulfill this obligation by observing the environmental instructions in this manual: • Chapter "Packaging, transport and storage" • Chapter "Disposal" VEGAPULS 66 standpipe version • 4 … 20 mA/HART - two-wire... -
Page 8: Product Description
The VEGAPULS 66 consists of the components: • Process fitting with standpipe antenna • Housing with electronics, optionally available with plug connector, optionally available with connection cable • Housing cover, optionally available with display and adjustment module PLICSCOM The components are available in different versions. VEGAPULS 66 standpipe version • 4 … 20 mA/HART - two-wire... - Page 9 3 Product description Fig. 1: VEGAPULS 66 in flange version up to 150 °C with plastic housing Housing cover with integrated PLICSCOM (optional) Housing with electronics Process fitting with standpipe antenna Type label The type label contains the most important data for identification and use of the instrument: • Instrument type •...
-
Page 10: Principle Of Operation
VEGAPULS 66 is a radar sensor in C-band (emitting frequency ap- prox. 6 GHz) for continuous level measurement. A special version of VEGAPULS 66 is available for each area of ap- plication. The version with flange and standpipe is particularly suitable for the measurement of solvents and liquid gases. -
Page 11: Packaging, Transport And Storage
Protected against solar radiation • Avoiding mechanical shock and vibration • Storage and transport Storage and transport temperature see chapter "Supplement - temperature Technical data - Ambient conditions" • Relative humidity 20 … 85 % VEGAPULS 66 standpipe version • 4 … 20 mA/HART - two-wire... -
Page 12: Mounting
The reference plane for the measuring range is the lower edge of the Measuring range flange or the seal surface of the thread. The measuring range extends from the vent hole in the standpipe below the reference plane up to the tube end. VEGAPULS 66 standpipe version • 4 … 20 mA/HART - two-wire... - Page 13 You can find the specifications in chapter "Technical data" and on the nameplate. VEGAPULS 66 standpipe version • 4 … 20 mA/HART - two-wire...
-
Page 14: Mounting Instructions
Take care that the plastic tip of the radar sensor is not damaged during transport. Fig. 5: Polarisation marking Marking of the polarisation direction Vent hole ø 8 mm (0.3 in) Inflowing medium Do not mount the instruments in or above the filling stream. Fig. 6: Inflowing liquid VEGAPULS 66 standpipe version • 4 … 20 mA/HART - two-wire... -
Page 15: Connecting To Power Supply
No grease should be used when screwing the NPT cable gland or steel tube into the threaded insert. Standard grease can contain additives that corrode the connection between threaded insert and VEGAPULS 66 standpipe version • 4 … 20 mA/HART - two-wire... -
Page 16: Connection Procedure
1 cm (0.4 in) of insulation from the ends of the individual wires 5. Insert the cable into the sensor through the cable entry 6. Lift the opening levers of the terminals with a screwdriver (see following illustration) VEGAPULS 66 standpipe version • 4 … 20 mA/HART - two-wire... -
Page 17: Wiring Plan, Single Chamber Housing
12. Screw the housing lid back on The electrical connection is finished. Wiring plan, single chamber housing The following illustrations apply to the non-Ex as well as to the Ex-ia version. VEGAPULS 66 standpipe version • 4 … 20 mA/HART - two-wire... - Page 18 Fig. 9: Electronics and terminal compartment, single chamber housing Plug connector for VEGACONNECT (I²C interface) Spring-loaded terminals for connection of the external indication VEGADIS Ground terminal for connection of the cable screen Spring-loaded terminals for voltage supply VEGAPULS 66 standpipe version • 4 … 20 mA/HART - two-wire...
-
Page 19: Wiring Plan, Double Chamber Housing
Fig. 11: Double chamber housing Housing cover, connection compartment Blind plug or plug M12 x 1 for VEGADIS 61 (optional) Housing cover, electronics compartment Filter element for air pressure compensation Cable gland VEGAPULS 66 standpipe version • 4 … 20 mA/HART - two-wire... - Page 20 I 2 C Fig. 13: Terminal compartment, double chamber housing Spring-loaded terminals for voltage supply Plug connector for VEGACONNECT (I²C interface) Ground terminal for connection of the cable screen VEGAPULS 66 standpipe version • 4 … 20 mA/HART - two-wire...
-
Page 21: Wiring Plan, Double Chamber Housing Ex D
Fig. 15: Double chamber housing Housing cover, connection compartment Blind plug or plug M12 x 1 for VEGADIS 61 (optional) Housing cover, electronics compartment Filter element for air pressure compensation Cable gland VEGAPULS 66 standpipe version • 4 … 20 mA/HART - two-wire... - Page 22 Terminals for VEGADIS 81 Terminal compartment Fig. 17: Connection compartment, Ex-d-ia double chamber housing Spring-loaded terminals for power supply and cable screen Ground terminal for connection of the cable screen VEGAPULS 66 standpipe version • 4 … 20 mA/HART - two-wire...
-
Page 23: Wiring Plan - Version Ip 66/Ip 68, 1 Bar
(+) and blue (-) to power supply or to the processing system Shielding Switch-on phase Switch-on phase After connecting VEGAPULS 66 to power supply or after a voltage recurrence, the instrument carries out a self-check for approx. 30 seconds: •... -
Page 24: Set Up With The Display And Adjustment Module Plicscom
4. Screw housing cover with inspection window tightly back on Disassembly is carried out in reverse order. The display and adjustment module is powered by the sensor, an ad- ditional connection is not necessary. VEGAPULS 66 standpipe version • 4 … 20 mA/HART - two-wire... -
Page 25: Adjustment System
Adjustment system Fig. 21: Display and adjustment elements LC display Indication of the menu item number Adjustment keys • Key functions [OK] key: VEGAPULS 66 standpipe version • 4 … 20 mA/HART - two-wire... -
Page 26: Setup Steps
These settings can be made ahead of time without the instrument having to be installed. VEGAPULS 66 standpipe version • 4 … 20 mA/HART - two-wire... - Page 27 1. Prepare the % value for editing with [OK] and set the cursor to the requested position with [->]. Set the requested percentage value with [+] and save with [OK]. The cursor jumps now to the distance value. VEGAPULS 66 standpipe version • 4 … 20 mA/HART - two-wire...
- Page 28 If the volume should not be displayed in percent but e.g. in l or kg, a scaling can be also set in the menu item "Display". Linearisation curve Linear VEGAPULS 66 standpipe version • 4 … 20 mA/HART - two-wire...
- Page 29 > 1 m/min.". Extended setting quick level change > 1 m/min. Note: Since with the function "Quick level change > 1 m/min." the genera- tion of an average value of the signal processing is considerably reduced, false reflections by agitators or vessel installations can VEGAPULS 66 standpipe version • 4 … 20 mA/HART - two-wire...
- Page 30 (see chart): Menu item Reset value Max. adjustment 0 m(d) Min. adjustment Meas. range end in m(d) Medium Liquid Vessel form not known Damping Linearization Linear Sensor-TAG Sensor Displayed value Distance Sensor-specific basic adjustment. Depending on the sensor type, see chapter "Technical data". VEGAPULS 66 standpipe version • 4 … 20 mA/HART - two-wire...
-
Page 31: Menu Schematic
Menu schematic Information: Depending on the version and application, the light-coloured menu windows are not always available or offer nor selection possibility. Special parameters are parameters which are set customer-specifically on the service level with the adjustment software PACTware. VEGAPULS 66 standpipe version • 4 … 20 mA/HART - two-wire... -
Page 32: Basic Adjustment
Info Peak value indicator Meas. reliability Curve selection Echo curve 15 dB ▼ Distance min.: 0.234 m(d) Sensor status Presentation of the echo Echo curve curve Distance max.: 5.385 m(d) VEGAPULS 66 standpipe version • 4 … 20 mA/HART - two-wire... -
Page 33: Saving The Parameter Adjustment Data
They are thus available for multiple use or service purposes. If VEGAPULS 66 is equipped with a display and adjustment module, the most important data can be read out of the sensor into the display and adjustment module. -
Page 34: Set Up With Pactware And Other Adjustment Programs
Fig. 23: Connection via VEGACONNECT externally I²C bus (com.) interface on the sensor I²C connection cable of VEGACONNECT VEGACONNECT USB cable to the PC Necessary components: • VEGAPULS 66 • PC with PACTware and suitable VEGA DTM VEGAPULS 66 standpipe version • 4 … 20 mA/HART - two-wire... -
Page 35: Parameter Adjustment With Pactware
To ensure that all instrument functions are supported, you should always use the latest DTM Collection. Furthermore, not all described functions are included in older firmware versions. You can download the latest instrument software from our homepage. A description of the update procedure is also available in the Internet. VEGAPULS 66 standpipe version • 4 … 20 mA/HART - two-wire... -
Page 36: Parameter Adjustment With Ams™ And Pdm
Parameter adjustment with AMS™ and PDM For VEGA sensors, instrument descriptions for the adjustment programs AMS™ and PDM are available as DD or EDD. The instru- ment descriptions are already implemented in the current versions of AMS™ and PDM. For older versions of AMS™ and PDM, a free-of-charge download is available via Internet. Move via www.vega.com and "Downloads" to "Software". VEGAPULS 66 standpipe version • 4 … 20 mA/HART - two-wire... -
Page 37: Saving The Parameter Adjustment Data
It is recommended to document or save the parameter adjustment data. That way they are available for multiple use or service purposes. The VEGA DTM Collection and PACTware in the licensed, profession- al version provide suitable tools for systematic project documentation and storage. VEGAPULS 66 standpipe version • 4 … 20 mA/HART - two-wire... -
Page 38: Maintenance And Fault Rectification
Current sig- Electronics mod- Exchange the instrument or send it in nal greater than ule in the sensor for repair 22 mA or less defective than 3.6 mA VEGAPULS 66 standpipe version • 4 … 20 mA/HART - two-wire... -
Page 39: Exchanging The Electronics Module
The electronics modules are adapted to the respective sensor and distinguish also in the signal output or power supply. Software update The software version of VEGAPULS 66 can be determined as follows: • on the type label of the electronics •... -
Page 40: How To Proceed If A Repair Is Needed
If a repair is necessary, please proceed as follows: • Print and fill out one form per instrument • Clean the instrument and pack it damage-proof • Attach the completed form and, if need be, also a safety data sheet outside on the packaging VEGAPULS 66 standpipe version • 4 … 20 mA/HART - two-wire... - Page 41 8 Maintenance and fault rectification • Please contact the agency serving you to get the address for the return shipment. You can find the agency on our home page www.vega.com. VEGAPULS 66 standpipe version • 4 … 20 mA/HART - two-wire...
-
Page 42: Dismount
Materials: see chapter "Technical data" If you have no way to dispose of the old instrument properly, please contact us concerning return and disposal. VEGAPULS 66 standpipe version • 4 … 20 mA/HART - two-wire... -
Page 43: Supplement
Ʋ 1. HART value (Primary Value) Distance to the level Ʋ 2. HART value (Secondary Value) Distance to the level - scaled (for example hl, %) Resolution, digital > 1 mm (0.039 in) VEGAPULS 66 standpipe version • 4 … 20 mA/HART - two-wire... - Page 44 Time to output the correct level (with max. 10 % deviation) after a sudden level change. at the aperture of a horn antenna with ø 150 mm Incl. non-linearity, hysteresis and non-repeatability. VEGAPULS 66 standpipe version • 4 … 20 mA/HART - two-wire...
- Page 45 -100 … 4000 kPa/-1 … 40 bar (-14.5 … 580 psi) with PN 40 Ʋ Ceramic -100 … 16000 kPa/-1 … 160 bar (-14.5 … 2321 psi) with PN 160 Relating to the nominal measuring range, in the temperature range -40 … +80 °C . VEGAPULS 66 standpipe version • 4 … 20 mA/HART - two-wire...
- Page 46 Ʋ Min. bending radius 25 mm (0.984 in) with 25 °C (77 °F) Ʋ Diameter approx. 8 mm (0.315 in) Tested according to the guidelines of German Lloyd, GL directive 2. Depending on the version M12 x 1, according to DIN 43650, Harting, 7/8" FF. VEGAPULS 66 standpipe version • 4 … 20 mA/HART - two-wire...
- Page 47 - electro-polished Ʋ Aluminium and stainless housing, in- IP 66/IP 68 (1 bar) NEMA 6P vestment casting (optionally available) Overvoltage category A suitable cable is the prerequisite for maintaining the protection rating. VEGAPULS 66 standpipe version • 4 … 20 mA/HART - two-wire...
- Page 48 Instruments with approvals can have different technical specifications depending on the version. For that reason the associated approval documents of these instruments have to be carefully noted. They are part of the delivery or can be downloaded under www.vega.com via "VEGA Tools" and "Instrument search" as well as via "Downloads" and "Approvals". VEGAPULS 66 standpipe version • 4 … 20 mA/HART - two-wire...
-
Page 49: Dimensions
9 mm/0.35 in higher Plastic housing Aluminium housing Aluminium double chamber housing Stainless steel housing, electropolished Stainless steel housing - precision casting Stainless steel double chamber housing - precision casting VEGAPULS 66 standpipe version • 4 … 20 mA/HART - two-wire... - Page 50 For process temperatures up to 250 °C (482 °F) For process temperatures up to 400 °C (752 °F) The plant operator must provide a suitable support for the standpipe depending on the length and the process conditions. VEGAPULS 66 standpipe version • 4 … 20 mA/HART - two-wire...
-
