Wyrestorm EX-70-H2X v1 Quick Start Manual

4K UHD HDCP 2.2 HDBaseT 5-Play Extender Set with 2-way PoH,
Ethernet, IR and RS-232 (4K: 70m/230ft | 1080p: 100m/328ft)

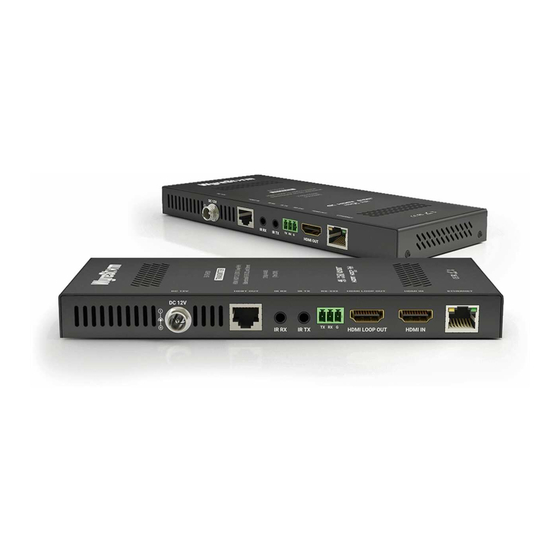

EX-70-H2X v1
Note: The following information applies to version 1 of this product as identified by v1 after the model number on the product label.
WyreStorm recommends reading through this document in its entirety to become familiar with the product's features prior to starting the
installation process.
In the Box
1x EX-70-H2X Transmitter
1x EX-70-H2X Receiver
1x 12V DC 2A Power Supply (US/UK/EU)
2x 2-pin Screw Down Phoenix Connectors
2x 3-pin Screw Down Phoenix Connectors
2x Wide-band IR Emitters
2x Wide-band IR Receivers (30-50KHz)
4x Mounting Brackets (1pr for TX and 1pr for RX)
1x Quickstart Guide (this document)

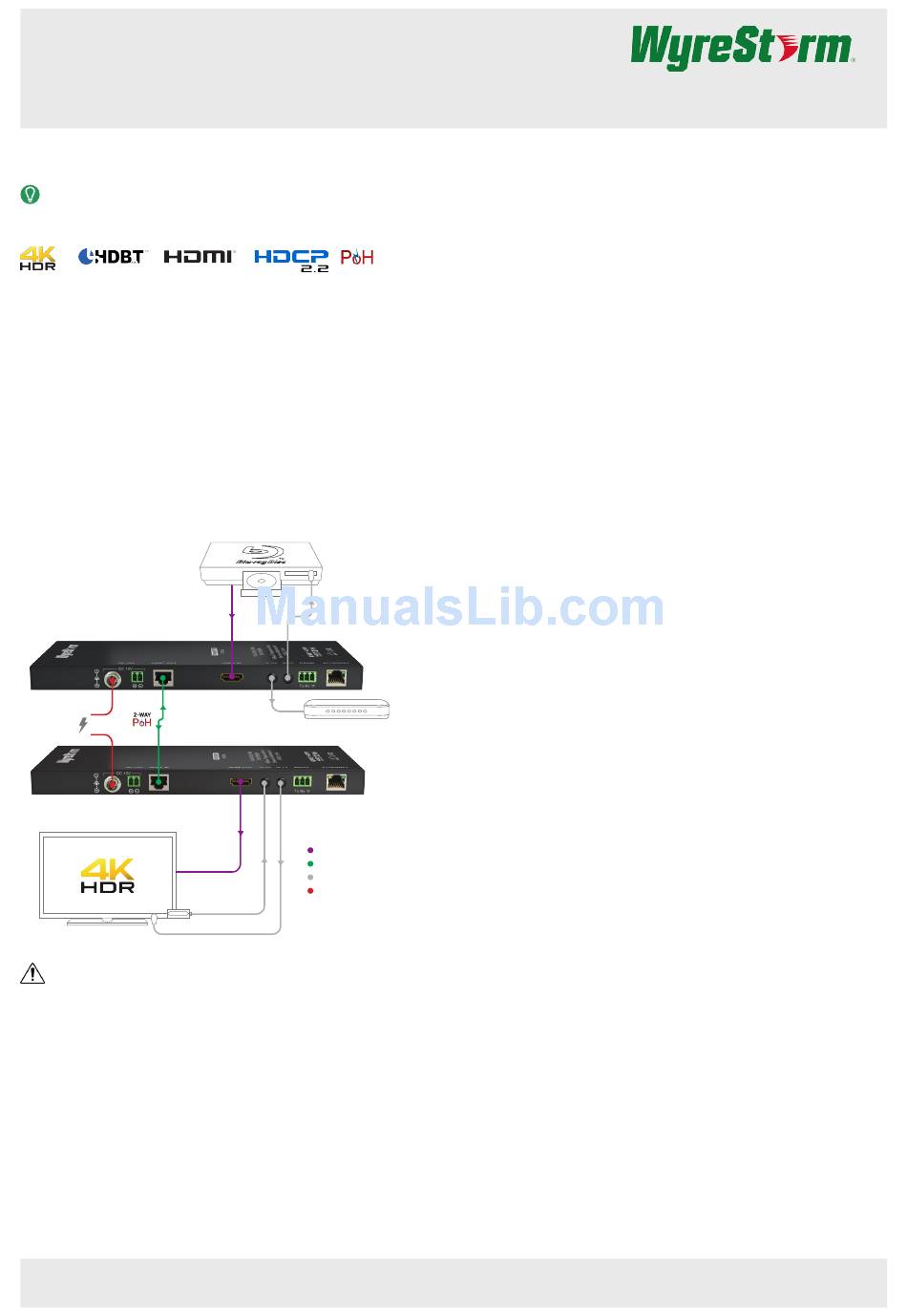

Basic Wiring Diagram
EX-70-H2X Transmitter (TX)
HDBaseT
12 DC 2A
or Cat5e/6/6a
Power Supply
EX-70-H2X Receiver (RX)
UHD/4K Display
IMPORTANT!
Disconnecting and connecting (hot plugging) HDMI or HDBaseT while devices
are powered on may cause damage. WyreStorm recommends powering off
devices before disconnecting these connections.
Additional Information
This Quickstart Guide provides the basic steps for the common uses of this
product. Refer to the Installation Guide and other documentation on the
product page for additional information.
Copyright © 2016 WyreStorm Technologies |
EX-70-H2X V1 Quickstart Guide | 161102
HDMI Source
HDMI
IR Emitter
IR to Control System
CAB-IR-LINK (Sold Separately)
HDMI KEY
HDMI
HDBaseT Cat5e/6
IR TX and RX
Power
IR Receiver
IR Emitter
wyrestorm.com
Installation
Before Beginning
• WyreStorm recommends visiting the product page before installing this
product for updates to this Quickstart Guide as well as other information
about the product.
• Verify that all items are included in the packaging per the
Pre Wire
1. Run a Cat5e/6/6a cable from the transmitter location to the receiver
location. Terminate the cable per the
2. (Optional) If using 3rd party IR emitters or connecting blocks at either
the transmitter or receiver, run the wire and terminate per the
(Emitter) Wiring section.
3. (Optional) If using RS-232 pass-through, run the wire and terminate per
the RS-232 Wiring section.
4. (Optional) If using 3rd party IR receivers at either the transmitter or
receiver, run the wire and terminate per the
section.

Transmitter Installation

1. Connect an HDMI source to the HDMI In on the transmitter using an
HDMI cable from a high quality brand such as
2. (Optional) Place an IR emitter onto the source device near the device's
IR receiver and connect it the IR TX port.
3. Connect the cable created in
(Optional) Connect the 3-pin connector to the RS-232 port on the
4.
transmitter and the opposite end to a port on a control system.
5. If using PoH from the transmitter to power the receiver, connect the
included 18V DC 1A power supply to the DC 12V jack.

Receiver Installation

1. Connect the HDMI Out on the receiver to an input on the display using
an HDMI cable from a high quality brand such as
2. (Optional) Place an IR emitter onto the source device near the device's
IR receiver and connect it the IR TX port.
3. Connect the cable created in
4. (Optional) If using RS-232 pass-through, connect the 3-pin connector
to the RS-232 port on the receiver and the opposite end to a port on the
device being controlled.
5. If not using PoH to power either the transmitter or receiver, connect the
included 18V DC 1A power supply to the 18V DC 1A jack on the either
device.
North America: 518-289-1294 | EMEA/ROW: 44 (0) 1793 230 343
1 of 4
Quickstart Guide
In the Box
HDMI/HDBaseT Wiring
IR RX (Receiver) Wiring
WyreStorm Express.
step 1 to the HDBT Out.
Pre Wire
WyreStorm
Pre Wire step 1 to the HDBT In.
support@wyrestorm.com
list.
section.
IR TX
Express.
