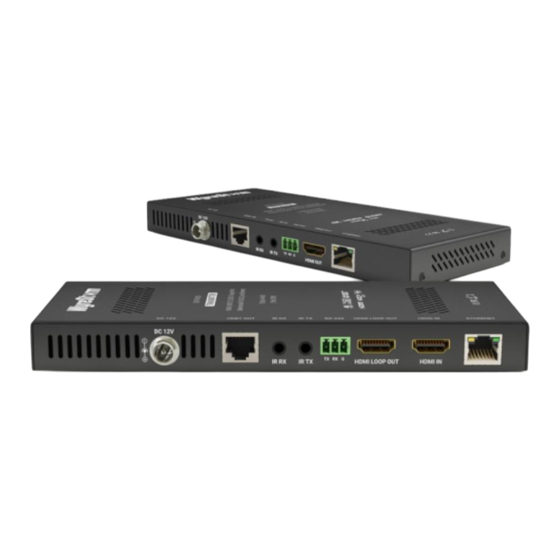

4K UHD 4:4:4/60 HDBaseT extender with HDMI Loop Out
and 2-way PoH (70m/230ft)
EX-70-H2X
WyreStorm recommends reading through this document in its entirety to become familiar with the product's features prior to starting the
installation process.
IMPORTANT! Installation Requirements
• This product was released in 2 different versions which contain
different chassis designs and feature sets. This Quickstart Guide
contains information for version 2 of this product only. See
Product Versions
for details.
• Visit the product page to download the latest firmware, document
version, additional documentation, and configuration tools.
• Read through the
guidelines before creating or choosing premade cables.
• While this product supports CEC, WyreStorm cannot guarantee
compatibility with all forms of CEC communication.
Identifying Product Versions
This product has been released with different versions which contain different chassis designs and/or feature sets. This Quickstart Guide contains information
for version 2 of this product only, information for version 1 can be found in the previous Quickstart Guide. Versions can be identified by a v# after the model
number on the product chassis model sticker. Note that version 1 of this product may not contain a v1 after the product while all versions above version 1 will
contain a version number.

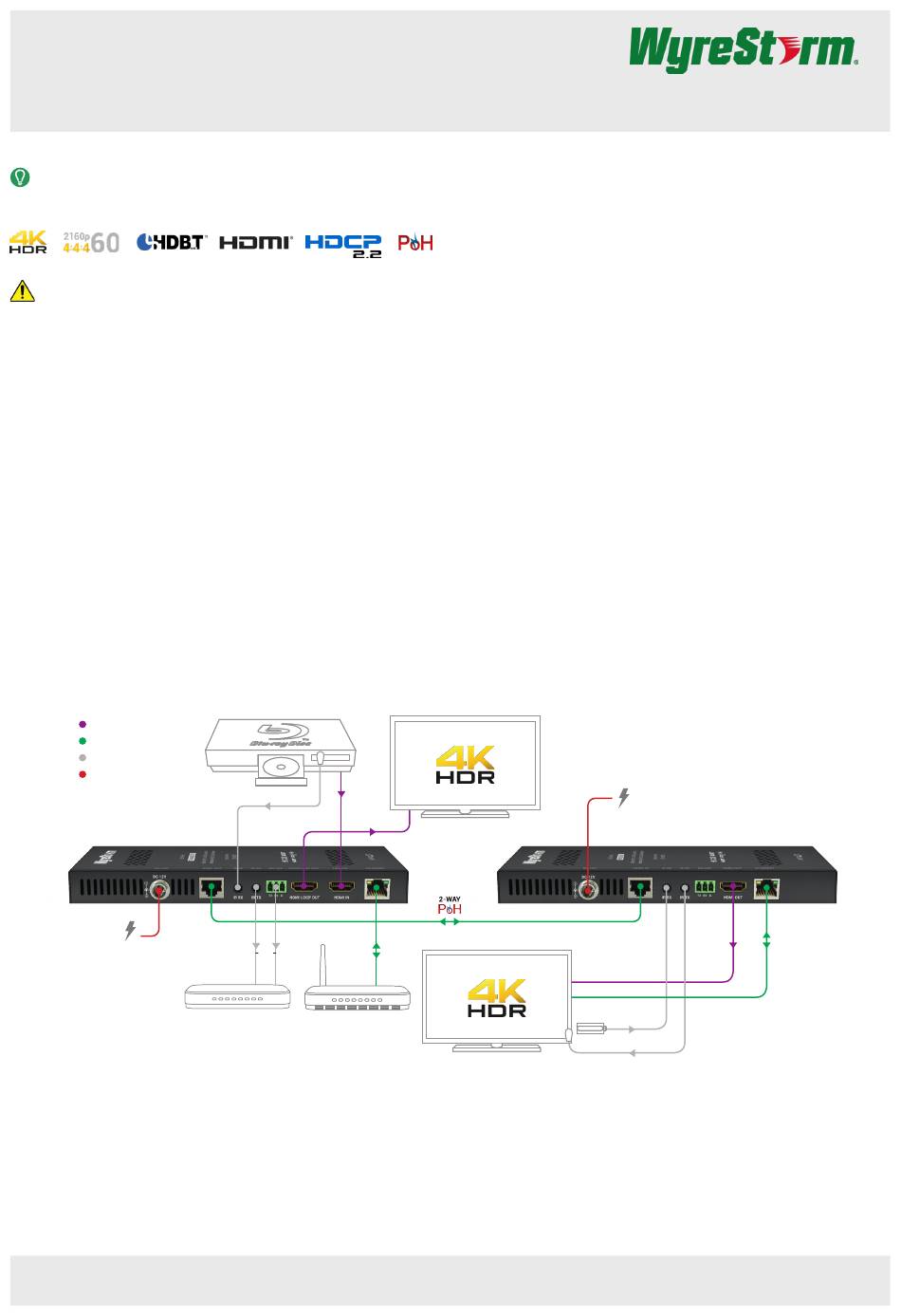

Basic Wiring Diagram
KEY
HDMI
HDBaseT/Ethernet
IR/RS-232
Power
EX-70-H2X Transmitter (TX)
12 DC
Power Supply
Note: Extender set may be powered
by either the TX or RX. Only one
power supply is required.
CAB-IR-LINK (Sold Separately)
Copyright © 2018 WyreStorm Technologies |
EX-70-H2X v2 Quickstart Guide | 181023
Identifying
section for important wiring
HDMI Source
HDMI
IR Emitter
HDMI
Ethernet
OR
IR to Control System
Router
wyrestorm.com
In the Box
1x EX-70-H2X Transmitter
1x EX-70-H2X Receiver
1x 12V DC 3A Power Supply (US | UK | EU)
2x 3-pin Screw Down Phoenix Connectors
1x IR Emitters
1x IR Receivers
4x Mounting Brackets (2x for TX | 2x for RX)
1x Quickstart Guide (this document)
HDMI Display
HDBaseT Cat5e/6/6a
HDMI Display
1 of 4
Quickstart Guide
Note: Extender set may be powered
12 DC
by either the TX or RX. Only one
Power Supply
power supply is required.
EX-70-H2X Receiver (RX)
HDMI
IR Receiver
IR Emitter
UK: +44 (0) 1793 230 343 | ROW: 844.280.WYRE (9973)
support@wyrestorm.com
Ethernet
