Wyrestorm EX-40 Instruction Manual

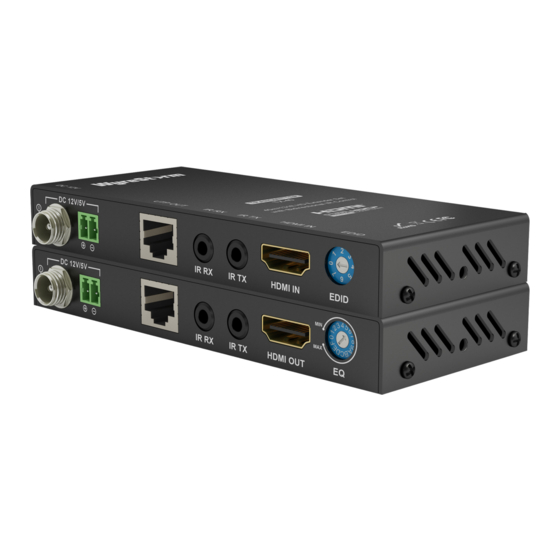

40m/131ft low profile single cable hd extender set with bidirectional ir control
Hide thumbs Also See for EX-40:
Table of Contents

Advertisement

Quick Links

Wyrestorm EX-40 Instruction Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EX-40 and is the answer not in the manual?

Questions and answers

Related Manuals for Wyrestorm EX-40

Summary of Contents for Wyrestorm EX-40

  • Page 1 PDF provided by Conference Room AV WyreStorm EX-40 1080P HDMI Extender Kit with 2-Way IR - 131'...
  • Page 2 Extender Set with Bidirectional IR Control Instruction Manual Thank you for choosing this WyreStorm product. Please read these instructions carefully before installing to avoid complications later. Technical Support: support@wyrestorm.com US: +1 866 677 0053 EU: +44 (0) 1793 230 343 REV1214A...

  • Page 3: Table Of Contents

    For further information on this product and other WyreStorm ranges, visit our website or download our latest product guide. wyrestorm.com Technical Support: support@wyrestorm.com US: +1 866 677 0053 EU: +44 (0) 1793 230 343...

  • Page 4: Features

    2 x Wide-band IR RX Receiver (30-50KHz) 2 x 3.5mm Phoenix male Connector (2 pin) 1 x Printed quickstart guide - Full instruction manual and quickstart downloadable from wyrestorm.com Technical Support: support@wyrestorm.com US: +1 866 677 0053 EU: +44 (0) 1793 230 343...

  • Page 5: Specification

    -4°F to 140°F (-20°C to 70°C) 10% to 90%, non-condensing Dimensions (HxWxD) 17mm x 127mm × 54mm / 0.67’’x 5.0’’ x 2.12’’ Weight 0.15kg / 0.33lb (each) Certification CE, FCC, RoHS Technical Support: support@wyrestorm.com US: +1 866 677 0053 EU: +44 (0) 1793 230 343...
  • Page 6 IR TX - IR IN connecting to supplied IR Emitter on source device HDMI IN - connects to HDMI source device EDID DIP Switch - manual adjustment of EDID settings for improved communication and compatibility between devices Technical Support: support@wyrestorm.com US: +1 866 677 0053 EU: +44 (0) 1793 230 343...
  • Page 7 IR TX - connects to supplied IR Emitter on display device HDMI OUT - connects to HDMI display device EQ DIP Switch - manual adjustment of cable distance settings for improved transmission between devices Technical Support: support@wyrestorm.com US: +1 866 677 0053 EU: +44 (0) 1793 230 343...

  • Page 8: Typical Application

    Check POWER, STATUS lights are illuminated on both EX-40 Transmitters and Receiver to indicate a successful connection. Note: We do not recommend passing remote power through the EX-40 - local power is required at the display point. Technical Support: support@wyrestorm.com US: +1 866 677 0053 EU: +44 (0) 1793 230 343...

  • Page 9: Ir Control Connection

    For 3D - with both units powered OFF, set Transmitter DIP switch to position 2, connect the 3D source and the Receiver to the 3D display. Power on all devices. The EX-40 will now detect and output 3D to the display.

  • Page 10: Troubleshooting

    1080p up to 40m/131ft so make sure the cable distance matches the project requirements and is well within the maximum transmission Technical Support: support@wyrestorm.com US: +1 866 677 0053 EU: +44 (0) 1793 230 343...
  • Page 11 If not, try changing incompatibility with devices. the HDMI cable between the source and the transmitter to rule out defective cabling. Technical Support: support@wyrestorm.com US: +1 866 677 0053 EU: +44 (0) 1793 230 343...

  • Page 12: Faqs

    IR outputs at the switch end, to assess if one location in particular is the problem. Technical Support: support@wyrestorm.com US: +1 866 677 0053 EU: +44 (0) 1793 230 343...

  • Page 13: Maintenance

    – either those specified by the manufacturer or parts possessing the same characteristics as the original parts. Technical Support: support@wyrestorm.com US: +1 866 677 0053 EU: +44 (0) 1793 230 343...

  • Page 14: Mail In Service

    It is non-transferable to subsequent owners, even during the warranty period. A purchase receipt or other proof of original purchase date is required for the limited warranty service. Technical Support: support@wyrestorm.com US: +1 866 677 0053 EU: +44 (0) 1793 230 343...

  • Page 15: Installation Notes

    Installation Notes Technical Support: support@wyrestorm.com US: +1 866 677 0053 EU: +44 (0) 1793 230 343...
  • Page 16 Technical Support: support@wyrestorm.com US: +1 866 677 0053 EU: +44 (0) 1793 230 343...
  • Page 17 US: + 1 866 677 0053 UK:- +44 (0) 1793 230 343 Email: support@wyrestorm.com WyreStorm Technologies reserve the right to change physical appearance or technical specification of this product at any time. Visit www.wyrestorm.com for the latest information on products..
