Wyrestorm EX-70-H2 Quick Start Manual & User Manual

HDBaseT 4K UHD Extender Set with 1-way PoH
and Bidirectional IR & RS-232 (70m/230ft)

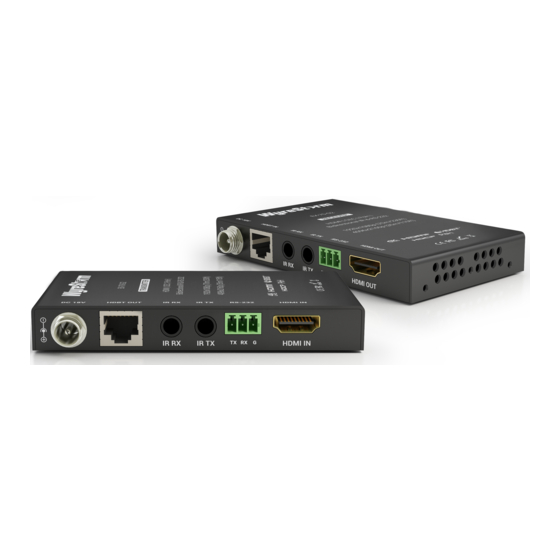

EX-70-H2
WyreStorm recommends reading through this document in its entirety to become familiar with the product's features prior to starting the
installation process.
In the Box
1x EX-70-H2 Transmitter
1x EX-70-H2 Receiver
1x 18V DC 1A Power Supply (US/UK/EU)
2x 3-pin Screw Down Phoenix Connectors
2x Wide-band IR Emitters
2x Wide-band IR Receivers (30-50KHz)
4x Mounting Brackets (1pr for TX and 1pr for RX)
1x Quickstart Guide (this document)

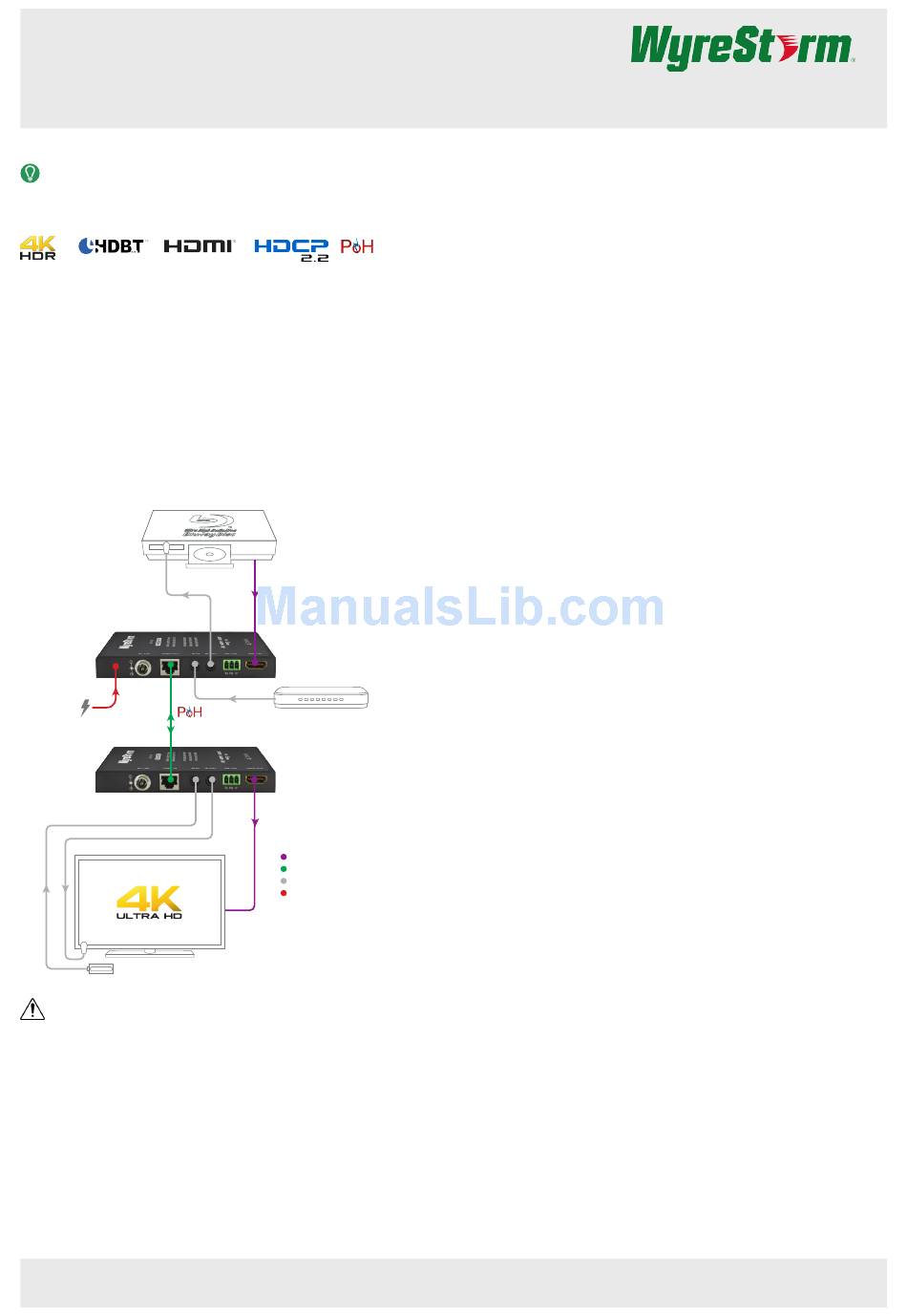

Basic Wiring Diagram
4K/UHD HDMI Source
IR Emitter
EX-70-H2 Transmitter (TX)
18V DC 1A
Power Supply
HDBaseT
Cat5e/6/6a
EX-70-H2 Receiver (RX)
IR Emitter
HDMI Display
IR Receiver
IMPORTANT!
Disconnecting and connecting (hot plugging) HDMI or HDBaseT while devices
are powered on may cause damage. WyreStorm recommends powering off
devices before disconnecting these connections.
Additional Information
This Quickstart Guide provides the basic steps for the common uses of this
product. Detailed installation and configuration information may be found in
the download tab located on the product page.
Copyright © 2016 WyreStorm Technologies |
EX-70-H2 Quickstart Guide | 160803
HDMI
IR to Control System
CAB-IR-LINK (Sold Separately)
HDMI
KEY
HDMI
HDBaseT Cat5e/6/6a
IR TX and RX
Power
wyrestorm.com
Installation
Before Beginning
• WyreStorm recommends visiting the product page before installing this
product for updates to this Quickstart Guide as well as other information
about the product.
• Verify that all items are included in the packaging per the
Pre Wire
1. Run a Cat5e/6/6a cable from the matrix location to the receiver location.
Terminate the cable per the
2. If using 3rd party IR emitters or connecting blocks at either the
transmitter or receiver, run the wire and terminate per the
Wiring section.
3. (Optional) If using RS-232 pass-through, run the wire and terminate per
the RS-232 Wiring section.
4. (Optional) If using 3rd party IR receivers at either the transmitter or
receiver, run the wire and terminate per the
section.
Transmitter Installation
1. Connect an HDMI source to the HDMI In on the transmitter using an
HDMI cable from a high quality brand such as
2. (Optional) Place an IR emitter onto the source device near the device's
IR receiver and connect it the IR TX port.
3. Connect the cable created in
4. (Optional) Connect the 3-pin connector to the RS-232 port on the
transmitter and the opposite end to a port on a control system.
5. If using PoH from the transmitter to power the receiver, connect the
included 18V DC 1A power supply to the 18V DC 1A jack.
Receiver Installation
1. Connect the HDMI Out on the receiver to an input on the display using
an HDMI cable from a high quality brand such as
2. (Optional) Place an IR emitter onto the source device near the device's
IR receiver and connect it the IR TX port.
3. Connect the cable created in
4. (Optional) If using RS-232 pass-through, connect the 3-pin connector
to the RS-232 port on the receiver and the opposite end to a port on the
device being controlled.
5. If not using PoH from the transmitter to power the receiver, connect the
included 18V DC 1A power supply to the 18V DC 1A jack.
North America: 518-289-1294 | EMEA/ROW: 44 (0) 1793 230 343
1 of 4
Quickstart Guide
In the Box
HDMI/HDBaseT Wiring section.
IR TX (Emitter)
IR RX (Receiver) Wiring
WyreStorm Express.
Pre Wire step 1 to the HDBT Out.
WyreStorm
Pre Wire step 1 to the HDBT In.
