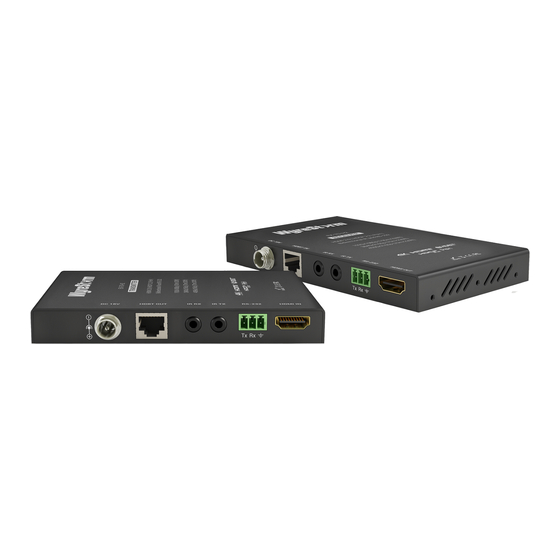

18Gbps 4K HDR HDBaseT Extender with
HDCP 2.2 and 2-way PoH
EX-70-H2 v2
WyreStorm recommends reading through this document in its entirety to become familiar with the product's features prior to starting the
installation process.
IMPORTANT! Installation Requirements
• This product was released in 2 different versions which contain different
chassis designs and feature sets.
• See Identifying Product Versions for details.
• Visit the product page to download the latest firmware, document version,
additional documentation, and configuration tools.
• Read through the
Wiring and Connections
guidelines before creating or choosing premade cables.
• While this product supports CEC, WyreStorm cannot guarantee
compatibility with all forms of CEC communication.
Basic Wiring Diagram
IR to Control System
CAB-IR-LINK (Sold Separately)
18V DC 1A
Power Supply
Note: Extender set may be powered
by either the TX or RX. Only one
power supply is required.
Copyright © 2019 WyreStorm Technologies | wyrestorm.com
EX-70-H2 v2 Quickstart Guide | 190227
section for important wiring
4K/UHD HDMI Source
IR Emitter
HDMI
EX-70-H2 Transmitter (TX)
In the Box
1x EX-70-H2 v2 Transmitter
1x EX-70-H2 v2 Receiver
1x IR Emitter
1x IR Receiver
2x 3-pin Terminal Block
1x 18V DC 1A Power Supply (US/UK/EU)
4x Mounting Brackets (2x for TX | 2x for RX)
1x Quickstart Guide (this document)
4K/UHD HDMI Display
IR Receiver
HDBaseT
Cat5e/6/6a/7
1 of 4
Quickstart Guide
KEY
HDMI
HDBaseT Cat6/7
IR TX and RX
Power
IR Emitter
HDMI
EX-70-H2 Receiver (RX)
UK: +44 (0) 1793 230 343 | ROW: 844.280.WYRE (9973)
