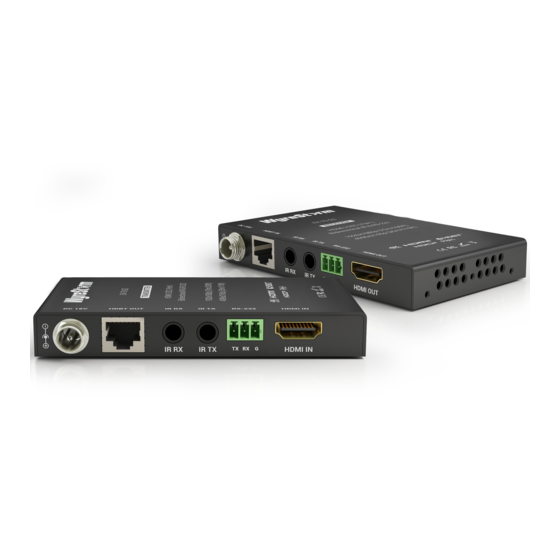

Wyrestorm EX-70-G2 Quick Start Manual

70m/230ft 2K HDMI Extender
with IR control and CEC pass-through
EX-70-G2
WyreStorm recommends reading through this document in its entirety to become familiar with the product's features prior to starting the
installation process.
In the Box
1x EX-70-G2 Transmitter
1x EX-70-G2 Receiver
1x 18V DC 1A Power Supply (US/UK/EU)
1x Wide-band IR Emitters
1x Wide-band IR Receivers (30-50KHz)
4x Mounting Brackets (1pr for TX and 1pr for RX)
1x Quickstart Guide (this document)

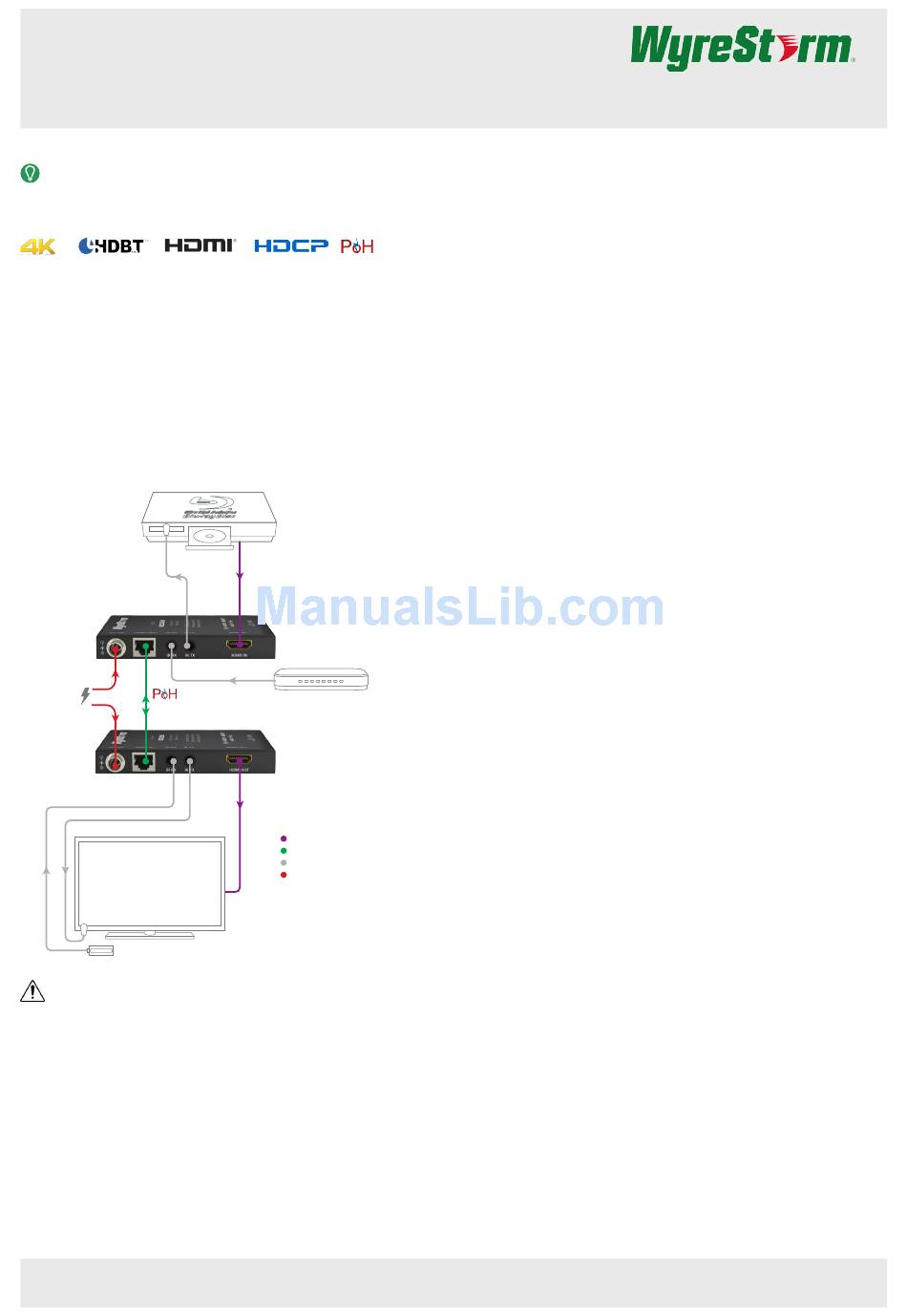

Basic Wiring Diagram
HDMI Source
IR Emitter
EX-70-G2 Transmitter (TX)
18V DC 1A
or
Power Supply
HDBaseT
Cat6/6a/7
EX-70-G2 Receiver (RX)
IR Emitter
HDMI Display
IR Receiver
IMPORTANT!
Disconnecting and connecting (hot plugging) HDMI, or HDBaseT while
devices are powered on may cause damage. WyreStorm recommends
powering off devices before disconnecting these connections.
Additional Information
This Quickstart Guide provides the basic steps for the common uses of this
product. Refer to the Installation Guide and other documentation on the
product page for additional information.
Copyright © 2017 WyreStorm Technologies |
EX-70-G2 Quickstart Guide | 170724
HDMI
IR to Control System
CAB-IR-LINK (Sold Separately)
HDMI
KEY
HDMI
HDBaseT Cat5e/6/6a
IR TX and RX
Power
wyrestorm.com
Installation
Before Beginning
• Verify that all items are included in the packaging per the
Pre Wire
1. Run a Cat5e/6/6a cable from the transmitter location to the receiver
location. Terminate the cable per the
2. (Optional) If using 3rd party IR emitters or connecting blocks at either
the transmitter or receiver, run the wire and terminate per the
(Emitter) Wiring section.
3. (Optional) If using 3rd party IR receivers at either the transmitter or
receiver, run the wire and terminate per the
section.

Transmitter Installation

Connect an HDMI source to the HDMI In on the transmitter using an
1.
HDMI cable from a high quality brand such as
2. (Optional) Place an IR emitter onto the source device near the device's
IR receiver and connect it the IR TX port.
3. Connect the cable created in
4. If using PoH from the transmitter to power the receiver, connect the
included 18V DC 1A power supply to the 18V DC 1A jack.

Receiver Installation

1. Connect the HDMI Out on the receiver to an input on the display using
an HDMI cable from a high quality brand such as
2. (Optional) Place an IR emitter onto the source device near the device's
IR receiver and connect it the IR TX port.
3. Connect the cable created in
4. If not using PoH from the transmitter to power the receiver, connect the
included 18V DC 1A power supply to the 18V DC 1A jack.
North America: 518-289-1294 | EMEA/ROW: 44 (0) 1793 230 343
1 of 4
Quickstart Guide
In the Box
HDMI/HDBaseT Wiring
IR RX (Receiver) Wiring
WyreStorm Express.
Pre Wire step 1 to the HDBT Out.
WyreStorm
Pre Wire step 1 to the HDBT In.
support@wyrestorm.com
list.
section.
IR TX
Express.
