Wyrestorm EX-70-H2X-ARC Quick Start Manual

4K UHD HDCP 2.2 HDBaseT 5-Play Extender Set with ARC, 2-way
PoH, Ethernet, IR and RS-232 (4K: 70m/230ft | 1080p: 100m/328ft)
EX-70-H2X-ARC
Extends UHD and HDR content up to 70m/230ft (1080p to 100m/328ft) and features a revised chipset for improved compatibility with 4K UHD sources.
Additional features include 2-way PoH, bidirectional Ethernet, IR & RS-232 pass-through.
WyreStorm recommends reading through this document in its entirety to become familiar with the product's features prior to starting the installation
process.
In the Box
1x EX-70-H2X-ARC Transmitter
1x EX-70-H2X-ARC Receiver
1x 12V DC 2A Power Supply (US/UK/EU)
2x 3-pin Screw Down Phoenix Connectors
2x IR Emitters
2x Wide-band IR Receivers (30-50KHz)
4x Mounting Brackets (1pr for TX and 1pr for RX)
1x Quickstart Guide (this document)

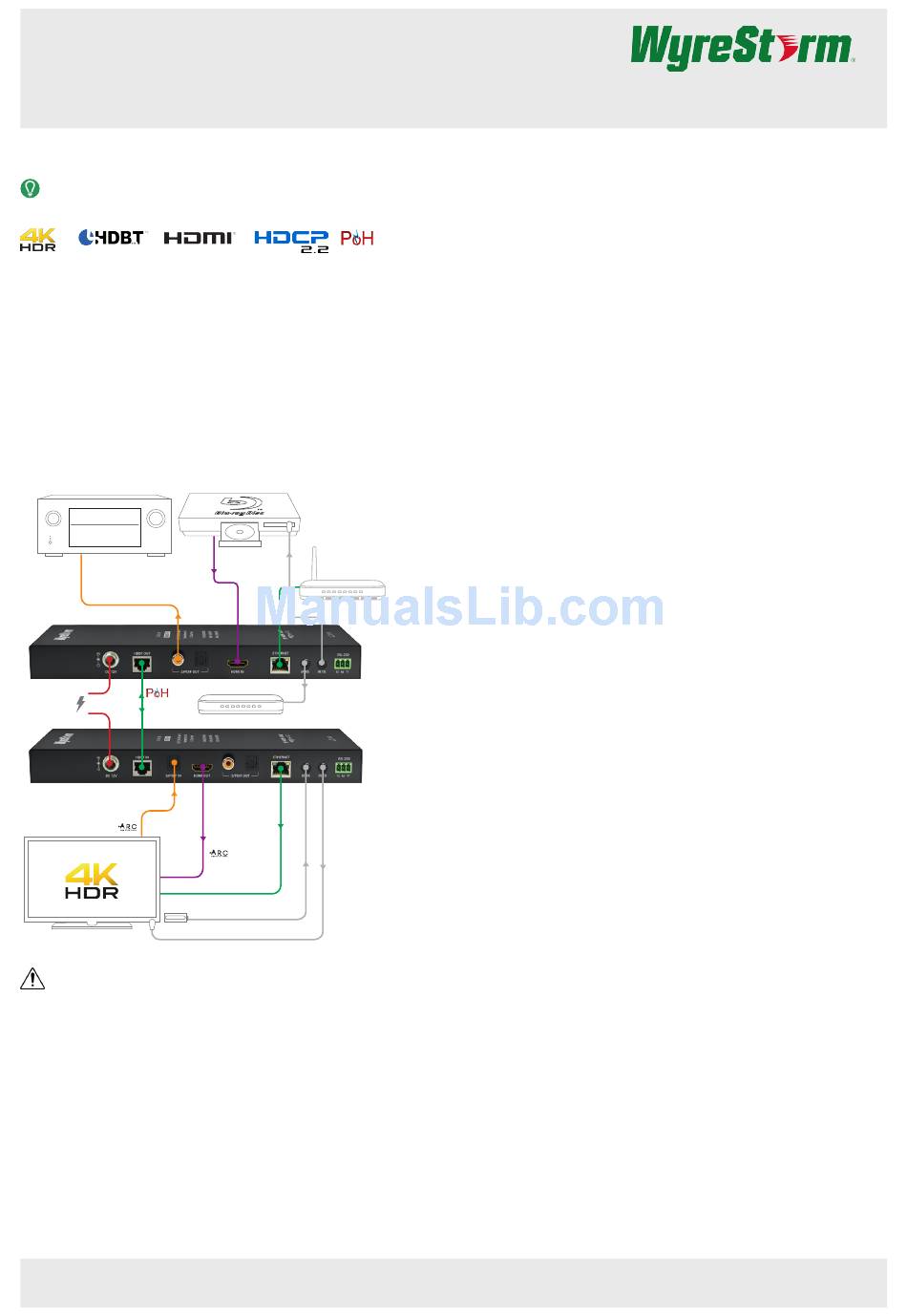

Basic Wiring Diagram
AV Receiver
Note: Audio from the RX is only
available on the S/PDIF Out. ARC
is not supported on the HDMI In.
Digital Audio
EX-70-H2X-ARC Transmitter (TX)
12 DC 2A
or
HDBaseT
Power Supply
Cat5e/6/6a
EX-70-H2X-ARC Receiver (RX)
Digital Audio
UHD/4K Display
IMPORTANT!
Do not connect or disconnect (hot plug) the HDMI, or HDBaseT connections
while the transmitter or receiver is powered on. Doing so may cause damage
to the units or connected devices.
Additional Information
This Quickstart Guide provides the basic steps for the common uses of this
product. Detailed installation and configuration information may be found in
the download tab located on the product page.
• WebUI Reference Guide – Setup for advanced Matrix features such as IP
and testing of connections
• H2 Matrix Operation User Guide – Single page document showing the
operation via front panel and included IR remote.
• Drivers and API – Preconfigured drivers for popular control systems and
API document.
Copyright © 2016 WyreStorm Technologies |
EX-70-H2X-ARC Quickstart Guide | 170210
HDMI Source
IR Emitter
HDMI
Router
IR to Control System
CAB-IR-LINK (Sold Separately)
Ethernet
HDMI
IR Receiver
IR Emitter
wyrestorm.com
Installation
Before Beginning
• Verify that all items are included in the packaging per the
Pre Wire
1. Run a Cat5e/6/6a cable from the transmitter location to the receiver
location. Terminate the cable per the
2. (Optional) If using 3 party IR emitters or connecting blocks at either the
rd
transmitter or receiver, run the wire and terminate per the
Wiring section.
3. (Optional) If using RS-232 pass-through, run the wire and terminate per
the RS-232 Wiring section.
4. (Optional) If using 3rd party IR receivers at either the transmitter or
receiver, run the wire and terminate per the
section.
Transmitter Installation
1. Connect an HDMI source to the HDMI In on the transmitter using an
HDMI cable from a high quality brand such as
2. (Optional) Place an IR emitter onto the source device near the device's
IR receiver and connect it the IR TX port.
3. (Optional) If using the ARC function to return audio from the remote
display, connect a digital input on an AV Receiver to the S/PDIF Out.
4. Connect the cable created in
5. (Optional) Connect the 3-pin connector to the RS-232 port on the
transmitter and the opposite end to a port on a control system.
6. If using PoH from the transmitter to power the receiver, connect the
included 12V DC 2A power supply to the DC 12V jack.
7. If using ARC or the audio inputs and outputs, see
Settings for switch configuration
Receiver Installation
1. Connect the HDMI Out on the receiver to an input on the display using
an HDMI cable from a high quality brand such as
2. (Optional) Place an IR emitter onto the source device near the device's
IR receiver and connect it the IR TX port.
3. Connect the cable created in
4. (Optional) If using RS-232 pass-through, connect the 3-pin connector
to the RS-232 port on the receiver and the opposite end to a port on the
device being controlled.
5. If using PoH from the receiver to power the transmitter, connect the
included 12V DC 2A power supply to the DC 12V jack.
6. If using ARC or the audio inputs and outputs, see
Settings for switch configuration.
North America: 518-289-1294 | EMEA/ROW: 44 (0) 1793 230 343
1 of 4
Quickstart Guide
In the Box
HDBaseT Wiring section.
IR TX (Emitter)
IR RX (Receiver) Wiring
WyreStorm Express.
step 1 to the HDBT Out.
Pre Wire
ARC and Audio In/Out
WyreStorm
Pre Wire step 1 to the HDBT In.
ARC and Audio In/Out
