Extending 4K & 1080p HDMI
using single Cat5e/6
Please read these instructions carefully before installing to avoid complications later.
Technical Support: support@wyrestorm.com US: +1 866 677 0053 EU: +44 (0) 1793 230 343

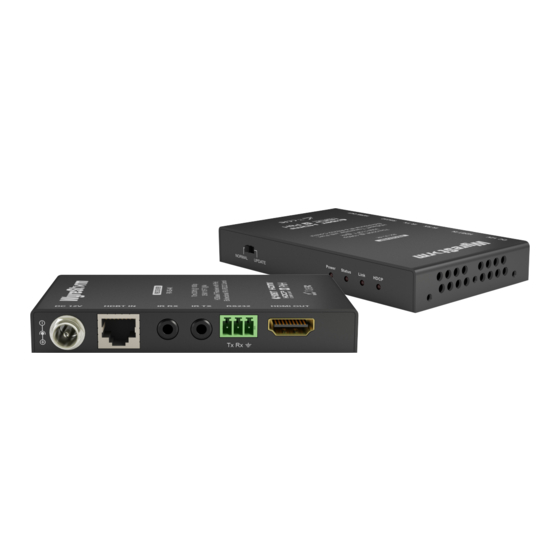

eX-35-4K
WyreStorm Low Profile 4K HDBaseT Extender
Set with 2-Way IR, RS232 and POH
(4K: 35m/115ft - 1080p: 70m/230ft)
Instruction Manual
Thank you for choosing this WyreStorm product.
1
0215
Advertisement
Table of Contents
Related Manuals for Wyrestorm eX-35-4K
Summary of Contents for Wyrestorm eX-35-4K
- Page 1 (4K: 35m/115ft - 1080p: 70m/230ft) Instruction Manual Thank you for choosing this WyreStorm product. Please read these instructions carefully before installing to avoid complications later. Technical Support: support@wyrestorm.com US: +1 866 677 0053 EU: +44 (0) 1793 230 343 0215...
-
Page 2: Table Of Contents
A specification, the EX-35-4K supports 70m/230ft to remotely power the Receiver - no mains power transmissions of 1080p@60Hz and 36bit Deep Color HD required at display zones Technical Support: support@wyrestorm.com US: +1 866 677 0053 EU: +44 (0) 1793 230 343... -
Page 3: Safety Precautions
Do not place this unit in a confined space such as enclosed shelving, cabinets or bookshelves. Ensure the Technical Support: support@wyrestorm.com US: +1 866 677 0053 EU: +44 (0) 1793 230 343 unit is adequately ventilated. To prevent the risk of electric shock or fire hazard due to... -
Page 4: Specification
4K @ 30Hz / Chroma sub rate 4:2:2 General Dimensions (WxHxD) 109mm × 15mm × 64mm / 4.3” x 0.59” x 2.5” (depth excludes connectors) Weight 170g/5.99oz (each) Certifiication CE, FCC, RoHS Technical Support: support@wyrestorm.com US: +1 866 677 0053 EU: +44 (0) 1793 230 343... -
Page 5: Panel Description
IR RX - connecting IR Receiver (or CAB-IR-LINK for Transmitter if using control system) IR TX - connecting to IR Emitter RS232 - 3 pin RS232 for serial control and firmware update HDMI Transmitter - HDMI IN from source Receiver - HDMI OUT to display Technical Support: support@wyrestorm.com US: +1 866 677 0053 EU: +44 (0) 1793 230 343... -
Page 6: Typical Application
Sudden movement of these devices could lead to loss of picture/sound if connections become loose or strained, resulting in unnecessary service call-backs. Technical Support: support@wyrestorm.com US: +1 866 677 0053 EU: +44 (0) 1793 230 343... -
Page 7: Ir/Rs232 Control Connection
Connect the included 12v power supply to EX-35-4K Transmitter power on. The PoH function carries power along the length of the cable one-way to power the Receiver. No additional power supply is required at the display end of the cable run. -
Page 8: Troubleshooting
, distance etc. should be 4K up to 35m/115ft and 1080p up to 70m/230ft. Ensure investigated. Swap cables out if necessary. the cable distance matches the project requirements and Technical Support: support@wyrestorm.com US: +1 866 677 0053 EU: +44 (0) 1793 230 343... - Page 9 If outputting 7.1, make sure all devices and outputting compatible transmissions. connected are also outputting 7.1 Note: Occasionally with some sources, the device settings Technical Support: support@wyrestorm.com US: +1 866 677 0053 EU: +44 (0) 1793 230 343...
-
Page 10: Faqs
Cat5e cables for video, audio and control, causes of IR interference. HDBaseT transmission only requires a single cable. • Direct sunlight, Fluorescent lighting (on cold start up) Technical Support: support@wyrestorm.com US: +1 866 677 0053 EU: +44 (0) 1793 230 343... - Page 11 HDMI Licensing LLC have now decided to simplify terminology by testing and referring to cable in terms of STANDARD or HIGH-SPEED rather than in generations 1.3, 1.4 etc. Technical Support: support@wyrestorm.com US: +1 866 677 0053 EU: +44 (0) 1793 230 343...
-
Page 12: Maintenance
A purchase receipt or other proof of original purchase electric shock, or other hazards and will invalidate your date is required for the limited warranty service. warranty. Technical Support: support@wyrestorm.com US: +1 866 677 0053 EU: +44 (0) 1793 230 343... - Page 13 The items listed here are not exclusive, but are for illustration only. Parts and service not covered by this limited warranty are not the responsibility of the warrantor and should be considered the responsibility of the individual. Technical Support: support@wyrestorm.com US: +1 866 677 0053 EU: +44 (0) 1793 230 343...
- Page 14 Technical Support: support@wyrestorm.com US: +1 866 677 0053 EU: +44 (0) 1793 230 343...
- Page 15 Technical Support: support@wyrestorm.com US: +1 866 677 0053 EU: +44 (0) 1793 230 343...
- Page 16 WyreStorm Technical Support US: +86 6677 0053 UK:- +44 (0) 1793 238 338 Email: support@wyrestorm.com WyreStorm Technologies reserve the right to change physical appearance or technical specification of this product at any time. Visit wyrestorm.com for the latest information on products..
