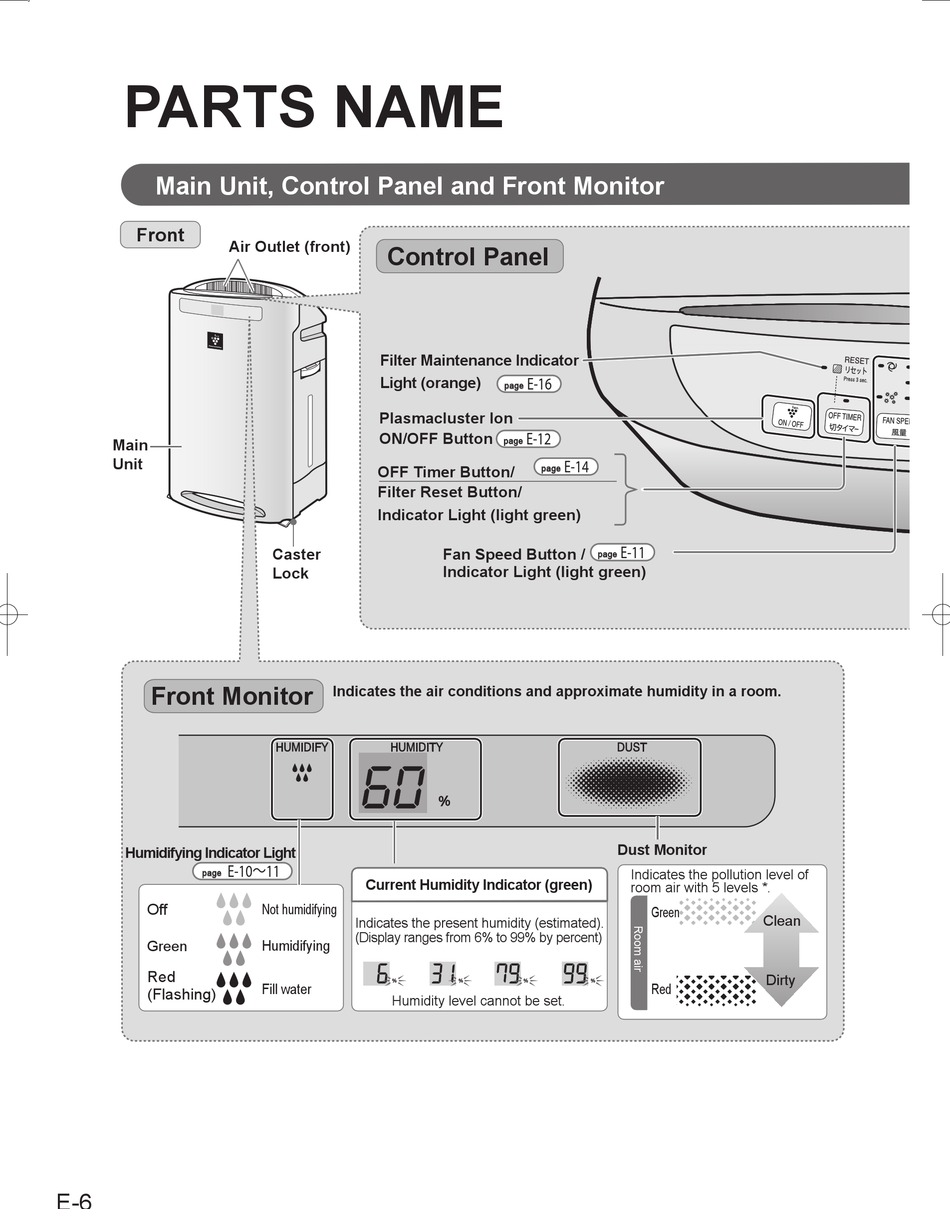

PARTS NAME

Main Unit, Control Panel and Front Monitor
Front
Main
Unit
Front Monitor
Humidifying Indicator Light
page
Off
Green
Red
(Flashing)
E-6
Air Outlet (front)
Control Panel
Filter Maintenance Indicator
Light (orange)
Plasmacluster Ion
ON/OFF Button
OFF Timer Button/
Filter Reset Button/
Indicator Light (light green)
Caster
Lock
Indicates the air conditions and approximate humidity in a room.
E-10～11
Current Humidity Indicator (green)
Not humidifying
Indicates the present humidity (estimated).
(Display ranges from 6% to 99% by percent)
Humidifying
Fill water
E-16
page
E-12
page
page
Fan Speed Button /
Indicator Light (light green)
Humidity level cannot be set.
E-14
E-11
page
Dust Monitor
Indicates the pollution level of
room air with 5 levels *.
Green
Red
Clean
Dirty
