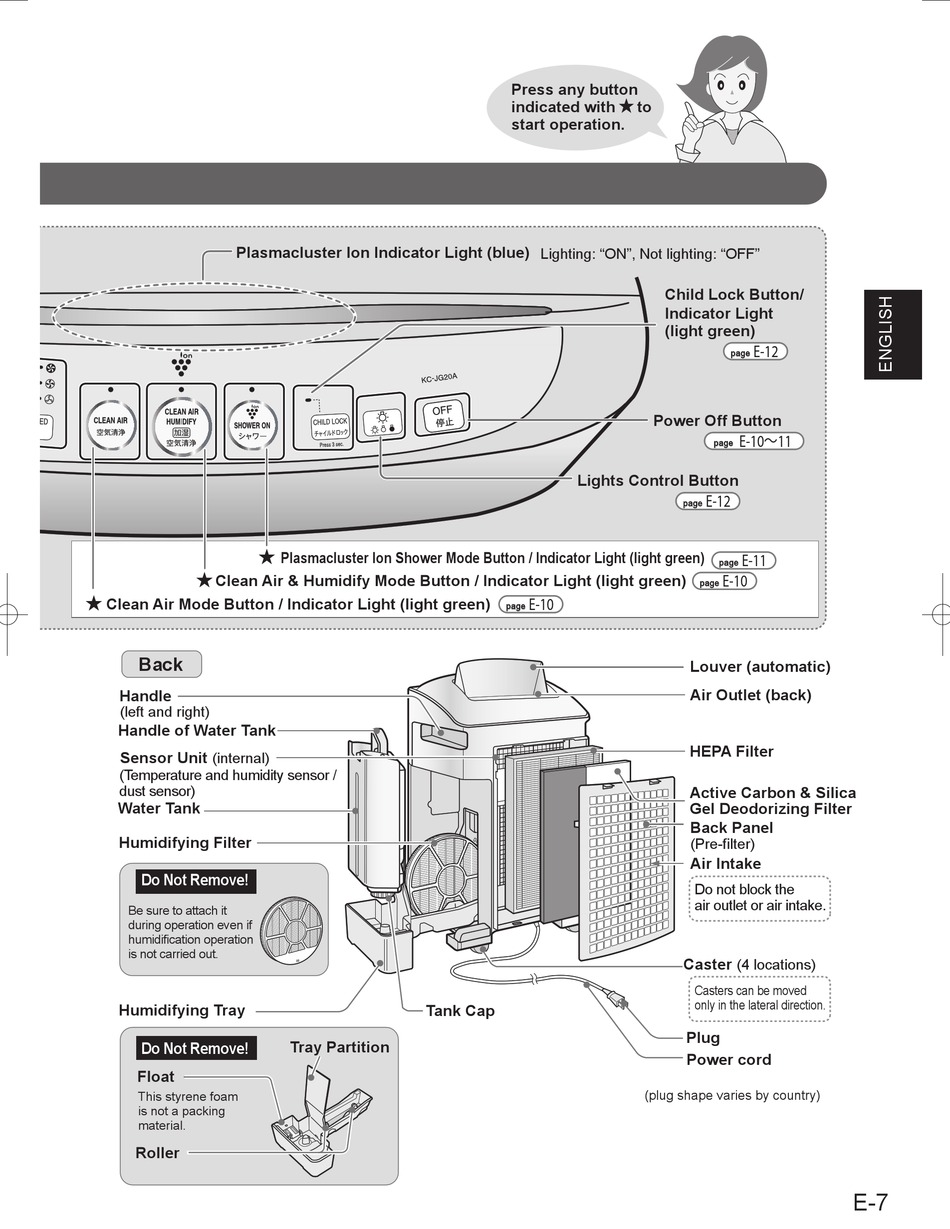

Sharp KC-JG20A Operation Manual page 9

Plasmacluster Ion Indicator Light (blue)
Clean Air & Humidify Mode Button / Indicator Light (light green)
Clean Air Mode Button / Indicator Light (light green)
Back
Handle
(left and right)
Handle of Water Tank
Sensor Unit
(internal)
(Temperature and humidity sensor /
dust sensor)
Water Tank
Humidifying Filter
Do Not Remove!
Be sure to attach it
during operation even if
humidification operation
is not carried out.
Humidifying Tray
Do Not Remove!
Float
This styrene foam
is not a packing
material.
Roller
Plasmacluster Ion Shower Mode Button / Indicator Light (light green)
Tank Cap
Tray Partition
Press any button
indicated with to
start operation.
Lighting: "ON", Not lighting: "OFF"
Child Lock Button/
Indicator Light
(light green)
Power Off Button
Lights Control Button
E-10
page
(plug shape varies by country)
E-12
page
E-10～11
page
E-12
page
E-11
page
E-10
page
Louver (automatic)
Air Outlet (back)
HEPA Filter
Active Carbon & Silica
Gel Deodorizing Filter
Back Panel
(Pre-filter)
Air Intake
Do not block the
air outlet or air intake.
Caster
(4 locations)
Casters can be moved
only in the lateral direction.
Plug
Power cord
E-7
