- Page 1 Quick Start Guide MX-241NP Model 4G LTE CBRS Wi-Fi Router Product teamsupport@bectechnologies.net | +1 972-422-0877 Ext. 2 www.bectechnologies.net...
-
Page 2: Package Contents

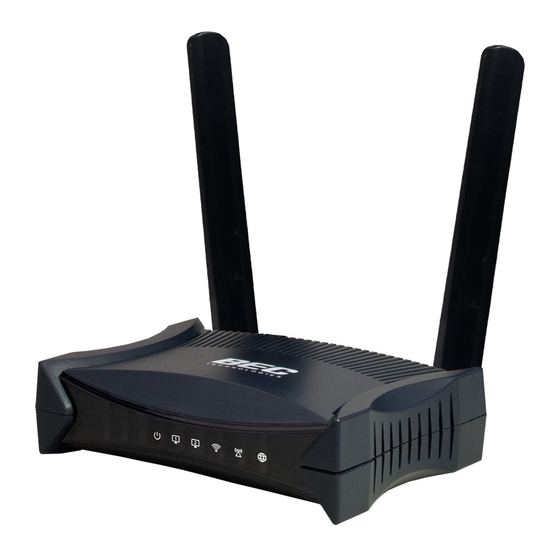

BEC MX-241NP 4G/LTE CBRS Wi-Fi Router PLEASE READ THE QUICK START GUIDE AND FOLLOW THE STEPS CAREFULLY. THIS QUICK START GUIDE WILL HELP YOU INSTALL THE DEVICE PROPERLY AND AVOID IMPROPER USAGE. IF YOU NEED MORE INFORMATION ON THIS SOFTWARE CONFIGURATION, PLEASE REFER TO THE ONLINE USER MANUAL. -
Page 3: Front Panel Leds
Orange No signal and the cellular module is in service Strength Indicator) No LTE module or LTE module fails MX-241NP is either in debug mode or in upgrading Green & Orange firmware process Green IP address has received; traffic is passing thru the device. -
Page 4: Rear Panel Connectors
(LAN 2 / EWAN) modem. Insert the mini SIM card (2FF) with the gold contact facing down. SIM Card Slot Push the mini-SIM card (2FF) inwards to eject it * Power off the MX-241NP before inserting or removing the SIM card(s) -
Page 5: Hardware Connection
BEC MX-241NP 4G/LTE CBRS Wi-Fi Router Hardware Connection WAN: 4G/LTE | Power Source: DC Power (ON) | LAN: Ethernet Devices II. WAN: 4G/LTE | Power Source: PoE Injector (OFF). LAN1: Connect to the PoE injector | LAN2: Ethernet Device (notebook, switch, etc.) -
Page 6: Hardware Installation
Select power source from using a (1) DC power adapter or (2) PoE Injector 1.1 Using the Supplied DC Power Adapter Plug in the supplied power adapter to the wall jack, the other side to the MX-241NP then power it ON the by pressing the Power On/Off button. - Page 7 BEC MX-241NP 4G/LTE CBRS Wi-Fi Router 1.2 Using a PoE Injector Power OFF the power source button then plug an Ethernet cable (RJ-45) to the LAN 1/PoE IN port and the other end of the cable directly to the Data+Power of the PoE injector.
- Page 8 BEC MX-241NP 4G/LTE CBRS Wi-Fi Router 3. WAN Link Interface and Connection BEC MX-241NP supports failover and failback on dual WAN interfaces, 4G/LTE and ETH WAN. <Please refer to User Manual for detailed Internet setup> 3.1 Mobile 4G/LTE Connection Slide the SIM card into the card slot of the device with the gold contact facing down. Make sure that the SIM card has been slid into the bottom of the slot with a click.
-
Page 9: Connecting To The Router
Quick Setup Your Router Use the Quick Start for fast connection setup. Wired Broadband Connection - before start configuring the MX-241NP, make sure you have the LAN2/EWAN port connect to your Internet box or fiber line. Step 1: Change administration password Setup a new password for “admin”... - Page 10 BEC MX-241NP 4G/LTE CBRS Wi-Fi Router Step 3: Setup Wireless Connection Access Point: select Activated SSID: Assign a unique name Channel: pick from 1~11 Security Type: select a mode Disable (No security) WPA2 (Most secure one) WPA / WPA2 (auto detect WPA mode with...
- Page 11 BEC MX-241NP 4G/LTE CBRS Wi-Fi Router LTE carrier setting. Input all relevant 4G/LTE parameters that are provided by Your carrier or ISP. If no settings are provided, you can leave as is. In this example we use Verizon and it only require APN in the setting.
-
Page 12: Troubleshooting
BEC MX-241NP 4G/LTE CBRS Wi-Fi Router Trouble Shooting 1. None of the LEDs are on when you turn on the router. Check the connection between the adapter and the router. If the error persists, you may have a hardware problem. In this case you should contact technical support.
