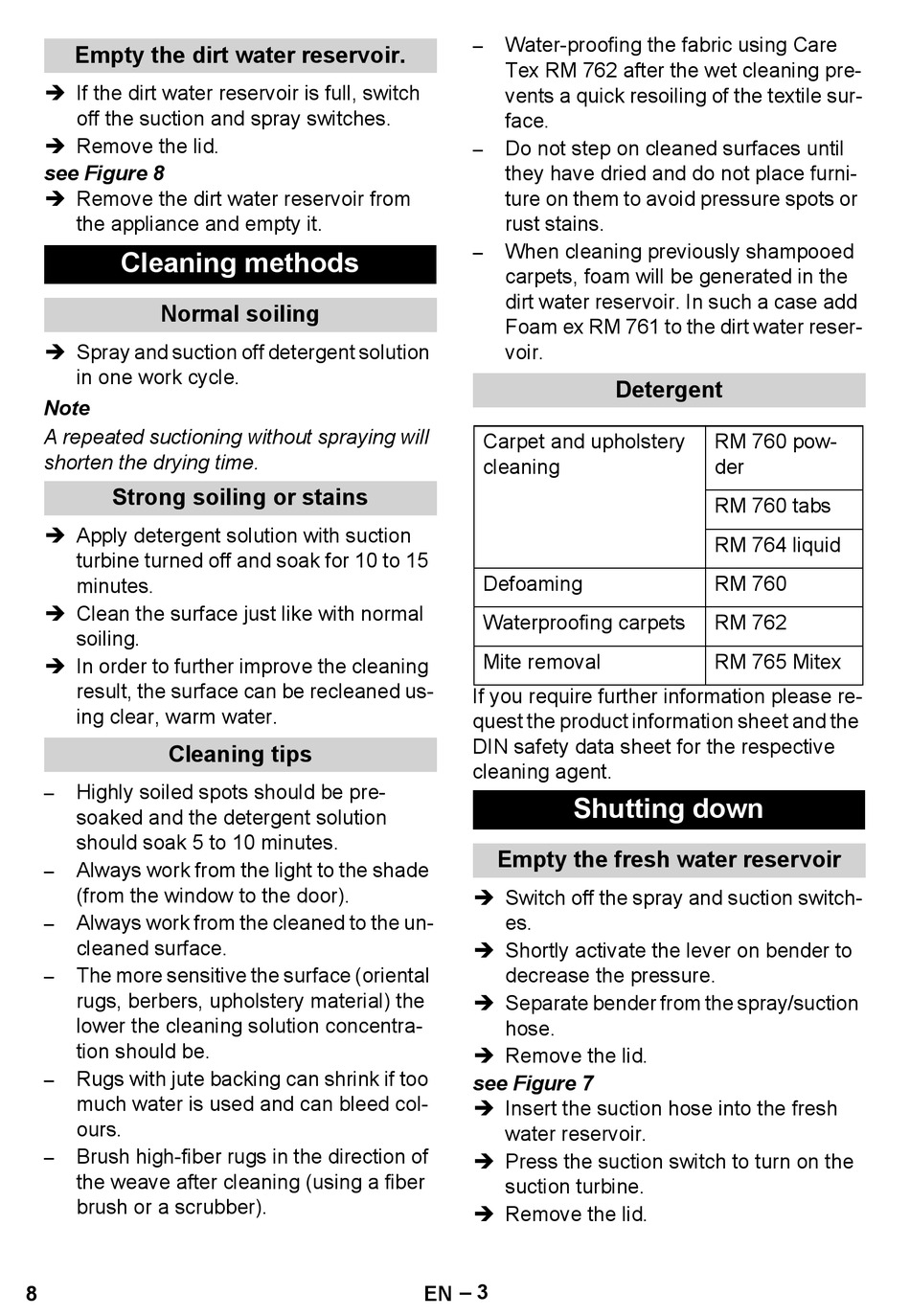

Kärcher Puzzi 8/1 C Operating Instructions Manual page 8

Hide thumbs

Advertisement

Table of Contents
Empty the dirt water reservoir.
 If the dirt water reservoir is full, switch
off the suction and spray switches.
 Remove the lid.
see Figure 8
 Remove the dirt water reservoir from
the appliance and empty it.
Cleaning methods
Normal soiling
 Spray and suction off detergent solution
in one work cycle.
Note
A repeated suctioning without spraying will
shorten the drying time.
Strong soiling or stains
 Apply detergent solution with suction
turbine turned off and soak for 10 to 15
minutes.
 Clean the surface just like with normal
soiling.
 In order to further improve the cleaning
result, the surface can be recleaned us-
ing clear, warm water.
Cleaning tips
Highly soiled spots should be pre-
soaked and the detergent solution
should soak 5 to 10 minutes.
Always work from the light to the shade
(from the window to the door).
Always work from the cleaned to the un-
cleaned surface.
The more sensitive the surface (oriental
rugs, berbers, upholstery material) the
lower the cleaning solution concentra-
tion should be.
Rugs with jute backing can shrink if too
much water is used and can bleed col-
ours.
Brush high-fiber rugs in the direction of
the weave after cleaning (using a fiber
brush or a scrubber).
8
Water-proofing the fabric using Care
Tex RM 762 after the wet cleaning pre-
vents a quick resoiling of the textile sur-
face.
Do not step on cleaned surfaces until
they have dried and do not place furni-
ture on them to avoid pressure spots or
rust stains.
When cleaning previously shampooed
carpets, foam will be generated in the
dirt water reservoir. In such a case add
Foam ex RM 761 to the dirt water reser-
voir.
Carpet and upholstery
cleaning
Defoaming
Waterproofing carpets
Mite removal
If you require further information please re-
quest the product information sheet and the
DIN safety data sheet for the respective
cleaning agent.
Shutting down
Empty the fresh water reservoir
 Switch off the spray and suction switch-
es.
 Shortly activate the lever on bender to
decrease the pressure.
 Separate bender from the spray/suction
hose.
 Remove the lid.
see Figure 7
 Insert the suction hose into the fresh
water reservoir.
 Press the suction switch to turn on the
suction turbine.
 Remove the lid.
– 3
EN
Detergent
RM 760 pow-
der
RM 760 tabs
RM 764 liquid
RM 760
RM 762
RM 765 Mitex
