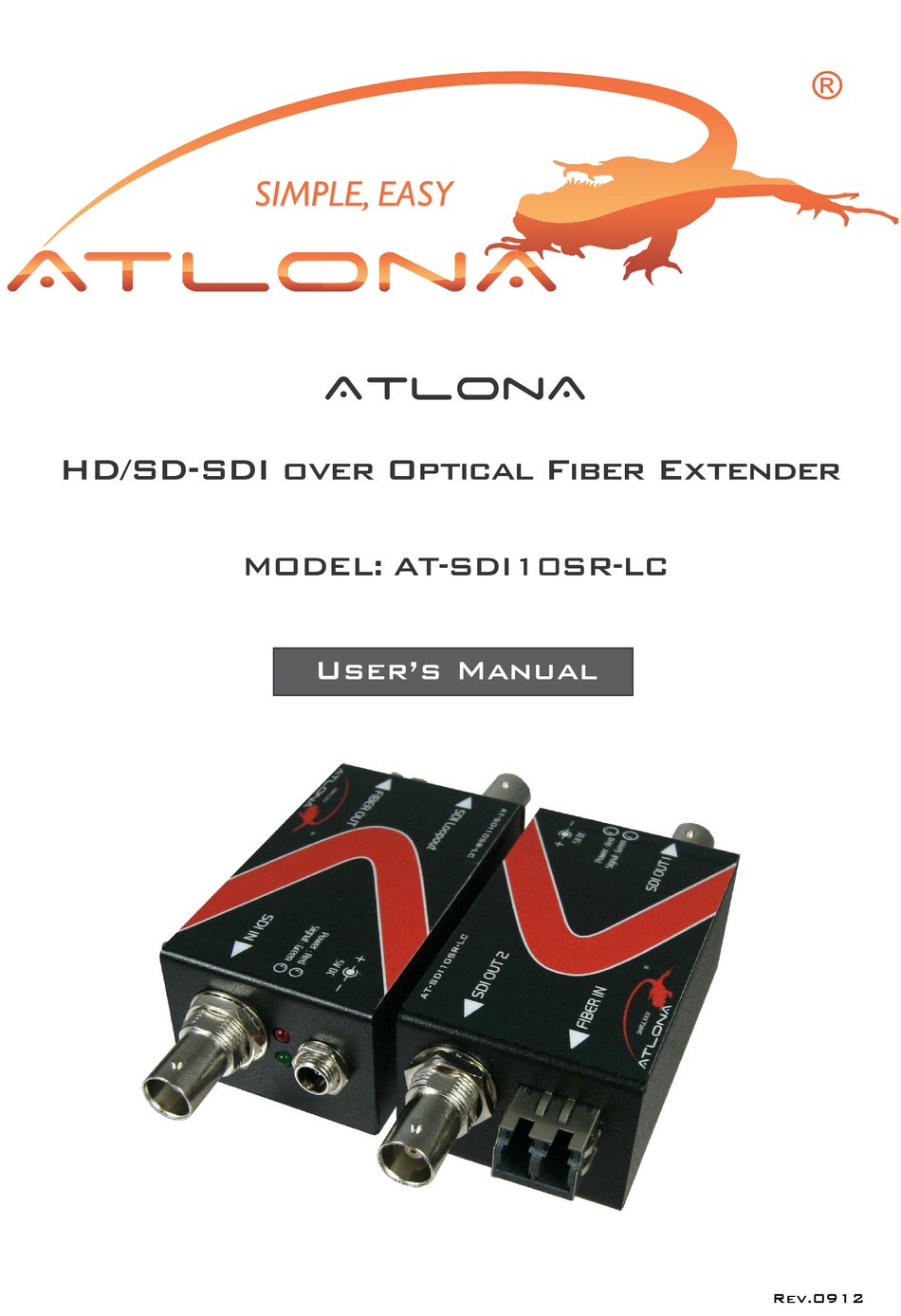

- Page 1 AtlonA HD/SD-SDI over Optical Fiber Extender MODEL: AT-SDI10SR-LC User’s Manual Rev.0912...
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. Introduction ................. 1 2. Features ................ 3. Package Contents ................ 4. Specifications ................ 5. Panel Description ................. 6. Safety Information ............... 7. Warranty ............... 5 8. Atlona Product Registration ..............6... -
Page 3: Introduction
SDI signal. Both transmitter and receiver provide equalizing and re-clocking at input unit in order to re-construct the signal for consistent quality. Atlona AT-SDI10SR-LC is perfect for today’s broadcast applications, including video production, video editing, studio to studio and studio to CATV head end. -
Page 4: Specifications
SPECIFICATIONS Model Name AT-SDI10SR-LC Technical Role of usage Sender [TX] Receiver [RX] SDI standards SD-SDI & HD-SDI Auto HD/SD-SDI detection SMPTE 259M (270Mbps & 360Mbps) / DVB-ASI (270Mbps) Supported protocols SMPTE 292M / HDTV (1.485Gbps & 1.485/1.001Gbps) Video bandwidth Single-link (1.485Gbps & 1.485/1.001Gbps) -
Page 5: Panel Description
PANEL DESCRIPTION PANEL DESCRIPTION Sender unit Power on/off LED +5V power jack: Connect to a power supply unit Optical fiber output: Plug in a SDI signal LED single mode optical fiber to the left side of the LC socket BNC Input: Plug in coaxial cable here BNC loop-out to another SDI device Receiver unit Power on/off LED... -
Page 6: Safety Information
If the wall plug does not fit into your local power socket, hire an electrician to replace Use only accessories recommended by ATLONA your obsolete socket. to avoid fire, shock or other hazards. Do not modify the wall plug. -
Page 7: Warranty
Atlona Technologies and its suppliers’ entire liability and Customer’s exclusive remedy shall be, at Atlona Technologies’ option, either return of the price paid for the Product, or repair or replacement of the Product that does not meet this Limited Warranty and which is returned to Atlona Technologies with a copy of Customer’s receipt. -
Page 8: Atlona Product Registration
At Atlona, we respect and protect your privacy and assure you that your registration information is completely secure. Of course, Atlona product registration is totally voluntary and failure to register will not diminish your limited warranty rights.
