User Manual
AtlonA
Passive VGA Extender with Wall
Plate or Box options
up to 330ft over
1 x CAT5/6/7 Cable
AT-VGA100-SR and AT-WPVGA-SR
AT-WPVGA-SR
Receiver
Transmitter

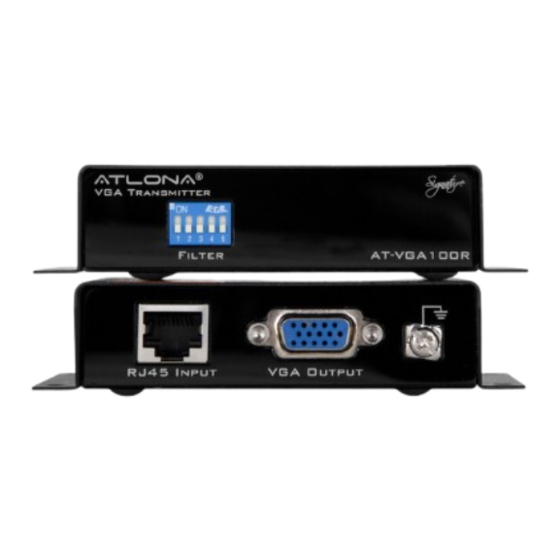

AT-VGA100-SR
Receiver
Transmitter

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AT-VGA100-SR and is the answer not in the manual?

Questions and answers

Related Manuals for Atlona AT-VGA100-SR

Summary of Contents for Atlona AT-VGA100-SR

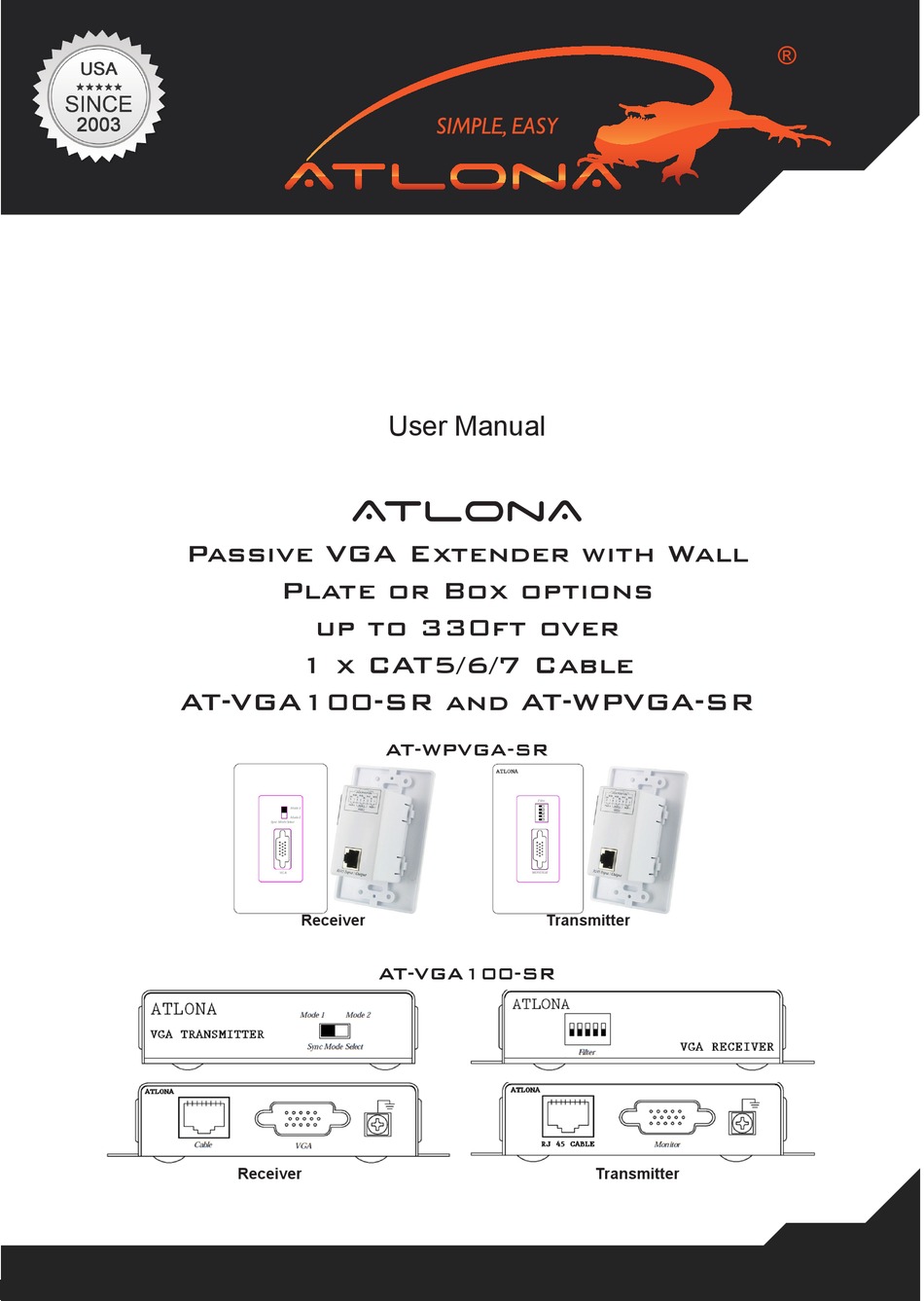

  • Page 1 User Manual AtlonA Passive VGA Extender with Wall Plate or Box options up to 330ft over 1 x CAT5/6/7 Cable AT-VGA100-SR and AT-WPVGA-SR AT-WPVGA-SR Receiver Transmitter AT-VGA100-SR Receiver Transmitter...

  • Page 2: Table Of Contents

    ..........4. Specification ..........5. Connection and Operation ..........6. Mode Selection ..........7. Dip Switch ..........8. Troubleshooting ..........9. STP Connector ..........10. Wiring Configuration ..........11. Atlona Product Registration ..........12. Safety Information ..........13. Warranty ..........

  • Page 3: Introduction

    INTRODUCTION The Atlona passive VGA Extenders over 1 x CAT5/6/7 cable up to the distance of 330ft with resolutions up to 1280x1024. The Atlona VGA Extenders are a perfect way of extending video signal away from the computer. The advanced design allows no limitations or delays when using extender versus a direct connection to the computer.

  • Page 4: Specification

    SPECIFICATIONS: AT-WPVGA-S AT-WPVGA-R AT-VGA100-S AT-VGA100-R Inputs 1 x VGA 1 x RJ45 1 x VGA 1 x RJ45 Outputs 1 x RJ45 1 x VGA 1 x RJ45 1 x VGA VGA Type (HD15) female VGA Resolution 800x600, 1024x768, 1280x768 and 1280x1024 Signal Bandwidth 300 kHz max.

  • Page 5: Mode Selection

    MODE SELECTION Mode # 1: If your display is a projector or a new display 17-inch and up, please use Mode # 1 Mode # 2: If you are using a CRT monitor or a display under 17-inch, please switch to Mode # 2 DIP SWITCH Filter There are 5 dip-switchers on the receiving module.

  • Page 6: Stp Connector

    STP CONNECTOR STP Connector is used: Step # 1 ground cable Shielded Twisted pair cable (STP cable) ground cable (folded) - Must touch the Metal Housing Step # 2 STP RJ45 connector (Metal Housing) STP Connector is not used: Step # 1 ground cable Shielded Twisted pair cable (STP cable) Step # 2...

  • Page 7: 10. Wiring Configuration

    At Atlona, we respect and protect your privacy and assure you that your registration information is completely secure. Of course, Atlona product registration is totally voluntary and failure to register will not diminish your limited war- ranty rights.

  • Page 8: 12. Safety Information

    Use only accessories recommended by ATLONA to avoid fire, shock or other Do not modify the wall plug. hazards. Doing so will void the warranty and safety features.

  • Page 9: 13. Warranty

    Product, or repair or replacement of the Product that does not meet this Limited Warranty and which is returned to Atlona Technologies with a copy of Customer’s receipt. This Limited Warranty is void if failure of the Product has resulted from accident, abuse, or misapplication.
