Hdmi extender over single cat5/6 up to 130 feet with 3d support
Hide thumbs Also See for AT-HD4-SI40SR:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual

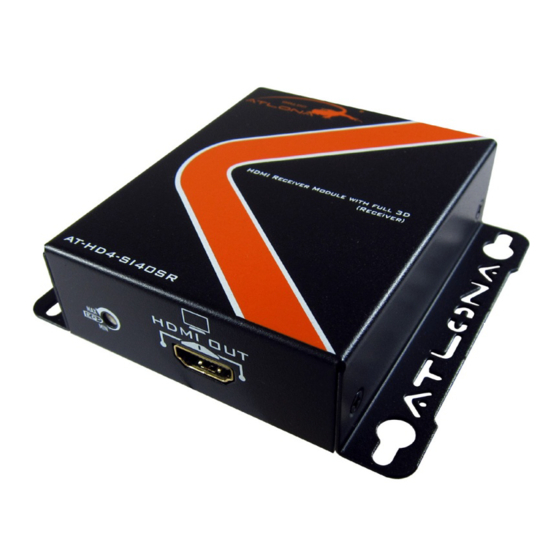

Atlona HDMI Extender
over Single CAT5/6 up to 130 feet
with 3D Support
AT-HD4-SI40SR

User Manual

Toll free: 1-877-536-3976
atlona.com
Local: 1-408-962-0515

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AT-HD4-SI40SR and is the answer not in the manual?

Questions and answers

Related Manuals for Atlona AT-HD4-SI40SR

Summary of Contents for Atlona AT-HD4-SI40SR

  • Page 1: User Manual

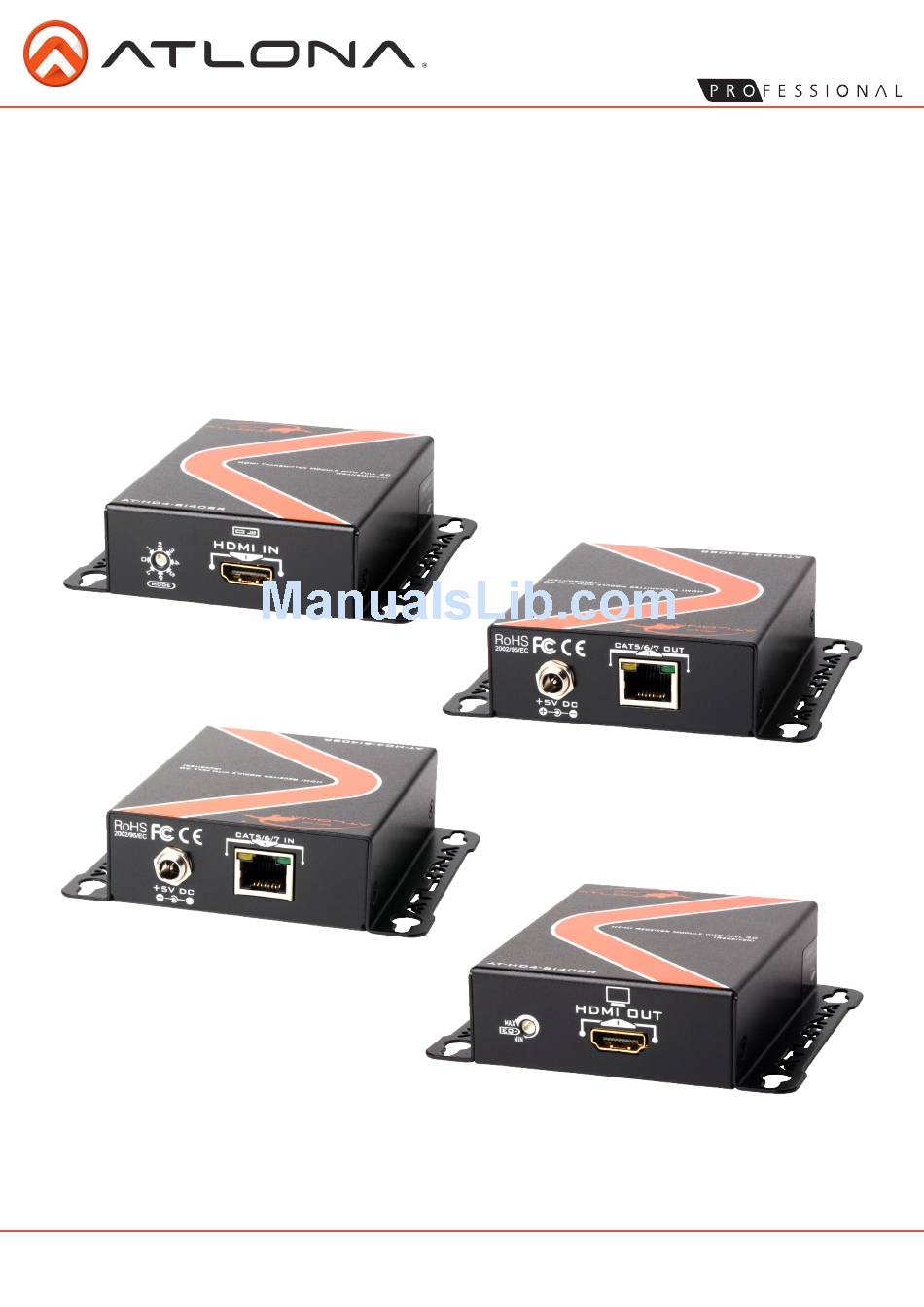

    Atlona HDMI Extender over Single CAT5/6 up to 130 feet with 3D Support AT-HD4-SI40SR User Manual Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...

  • Page 2: Table Of Contents

    9. EDID Learn ..................5 10. Connection and Installation ..................6 11. Safety Information ..................7 12. Warranty ..................8 13. Atlona Product Registration ..................9 Revision D (2/15/13): New Firmware Fixed error with Pioneer AVRs Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...

  • Page 3: Introduction

    Introduction The Atlona High Speed HDMI Extender over a single category cable ensures a quality audio/video signal up to 130ft with pass through of deep color, 3D, Dolby TrueHD and DTS-HD Master ® Audio™. Supports resolutions up to 1080p or 1920x1200 extending an HD source to any display.

  • Page 4: Panel Description

    3. EQ: The 8-level equalization dial varies from MAX (long distance) to MIN (short distance). Adjust the dial from MIN to MAX until the signal is stable. 4. HDMI OUT: Connect to an HDMI display Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...

  • Page 5: Installation

    4. Turn the EDID dial on the transmitter to mode 7 5. Plug the power cable into the transmitter The signal light on the port will dim then light again to indicate EDID learning is complete Note: Leave the dial on mode 7 Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...

  • Page 6: 10. Connection And Installation

    Connection and Installation Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...

  • Page 7: 11. Safety Information

    Attempting to do so could expose you to dangerous electrical shock or other hazards. It may also cause damage to your AT-HD4-SI40SR. Opening the product will void the warranty. Do not attempt to service the unit. Disconnect the product and contact your authorized Atlona reseller or contact Atlona directly.

  • Page 8: 12. Warranty

    Atlona Technologies’ and its suppliers’ entire liability and Customer’s exclusive remedy shall be, at Atlona Technologies’ decision, either return of the price paid for the product, repair, or replacement of the product that does not meet this Limited Warranty and which is returned to Atlona Technologies with a copy of the Customer’s receipt.

  • Page 9: 13. Atlona Product Registration

    Atlona Product Registration Thank you for purchasing this Atlona product. - We hope you enjoy it and will take an extra few moments to register your new purchase. Registration creates an ownership record if your product is lost or stolen and helps ensure you’ll receive notification of performance issues and firmware updates.
