Summary of Contents for Atlona AT-UHD-EX-70C-KIT
- Page 1 4K/UHD HDMI Over HDBaseT TX/RX with Control and PoE AT-UHD-EX-70C-KIT & AT-UHD-EX-70C-RX Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
-
Page 2: Table Of Contents
Rear Panel ................... 6 7. Captive Screw Connectors ................... 7 8. Connection Diagram ................... 8-9 9. Specifications ................... 10 10. Safety Information ................... 11 11. Warranty ................... 12-13 12. Atlona Product Registration ................... 13 Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 3: Introduction
Connect the screws to these Connect the screws to these venting! four holes when mounting to four holes when mounting to a a wall. table. *Remove the side screws from the case and use for bracket installation Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 4: Category Cable
Using the wrong size of connectors may result in interference causing loss of signal. Important! “EZ RJ45 connectors” are not recommended with HDBaseT extenders. Doing so may result in stray EMI/RFI signals to be picked up and interfere with audio and video transmission. Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -

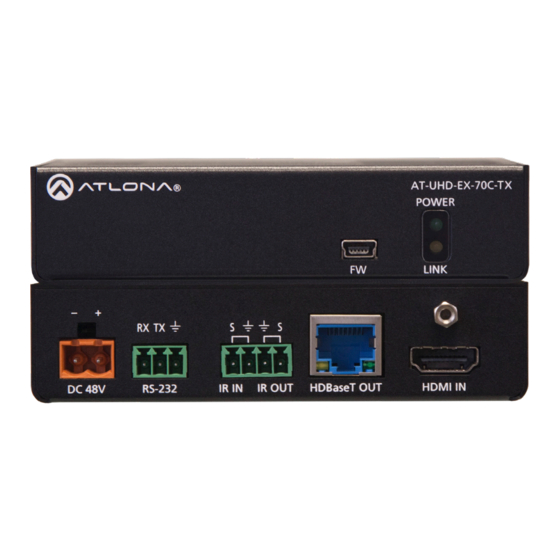

Page 5: Panel Descriptions
6. HDBaseT OUT - Connect a category cable from here to an AT-UHD-EX-70C-RX (included in KIT) 7. HDMI IN - Connect HDMI or DVI source here (with adapter) Ex. Blu-ray player, cable box, HDDA series, H2H series, etc Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... - Page 6 (included) (AT-IR-CS-RX sold separately) 5. HDBaseT IN - Connect a category cable from here to an AT-UHD-EX-70C-TX (included in KIT) HDBaseT matrix 6. HDMI OUT - Connect HDMI or DVI display here (with adapter) Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
-
Page 7: Captive Screw Connectors
RS-232 cable. Note: The IR receiver is optional for the UHD-EX-70C-KIT and RX box. The compatible IR receiver (AT-IR-CS-RX) can be purchased through atlona.com. The wires of the emitter and receiver have been marked to differentiate the pin outs. - Page 8 Power Chaining Multiple kits can be powered by one power supply. The included power supply can support up to 3 kits. To power four kits use the optional power supply AT-PS-483125-C (purchase through atlona.com). AT-UHD-EX-100CE-TX AT-UHD-EX-100CE-TX AT-UHD-EX-100CE-TX AT-UHD-EX-100CE-TX POWER POWER...
-
Page 9: Connection Diagram
IR OUT VIDEO OUT AUDIO OUT SERIAL 2 Control System HDBaseT OUT DC 48V RS-232 IR IN IR OUT HDMI IN AT-UHD-EX-70C-RX POWER LINK RX TX RS-232 IR IN IR OUT HDBaseT IN HDMI OUT Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... - Page 10 RESTORE COAX OUT RELAYS WIFI 2 SERIAL 1 AUDIO IN CONTACTS IR OUT VIDEO OUT AUDIO OUT ETHERNET SERIAL 2 Control System LINK RX TX RS-232 IR IN IR OUT HDBaseT IN HDMI OUT Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
-
Page 11: Specifications
1.10 x 4.69 x 3.50 (inch) Weight 0.27 kg 0.59 lbs 0.33 kg 0.73 lbs Certification Power Supply CE, FCC, cULus, RoHS, CCC, RCM Product CE, FCC **4096x2160@50/60Hz & 3840x2160@50/60Hz supported @ chroma subsampling 4:2:0 8-bit only Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 12: Safety Information
It may also cause damage to your product. Opening the product will void the warranty. Do not attempt to service the unit. Disconnect the product and contact your authorized Atlona reseller or contact Atlona directly. - Page 13 Atlona requires that products returned are properly packed, preferably in the original carton, for shipping. Cartons not bearing a return authorization or case number will be refused. Atlona, at its sole discretion, reserves the right to reject any products received without advanced authorization. Authorizations can be requested by calling 1-877-536-3976 (US toll free) or 1-408- 962-0515 (US/international) or via Atlona’s website at www.atlona.com.
-
Page 14: Atlona Product Registration
Atlona’s products may be used in conjunction with. Atlona, at its sole discretion, reserves the right not to extend its warranty offering in instances arising outside its normal course of business including, but not limited to, damage inflicted to its products from acts of god.
