Summary of Contents for Atlona AT-VBNC400SR

  • Page 1: User Manual

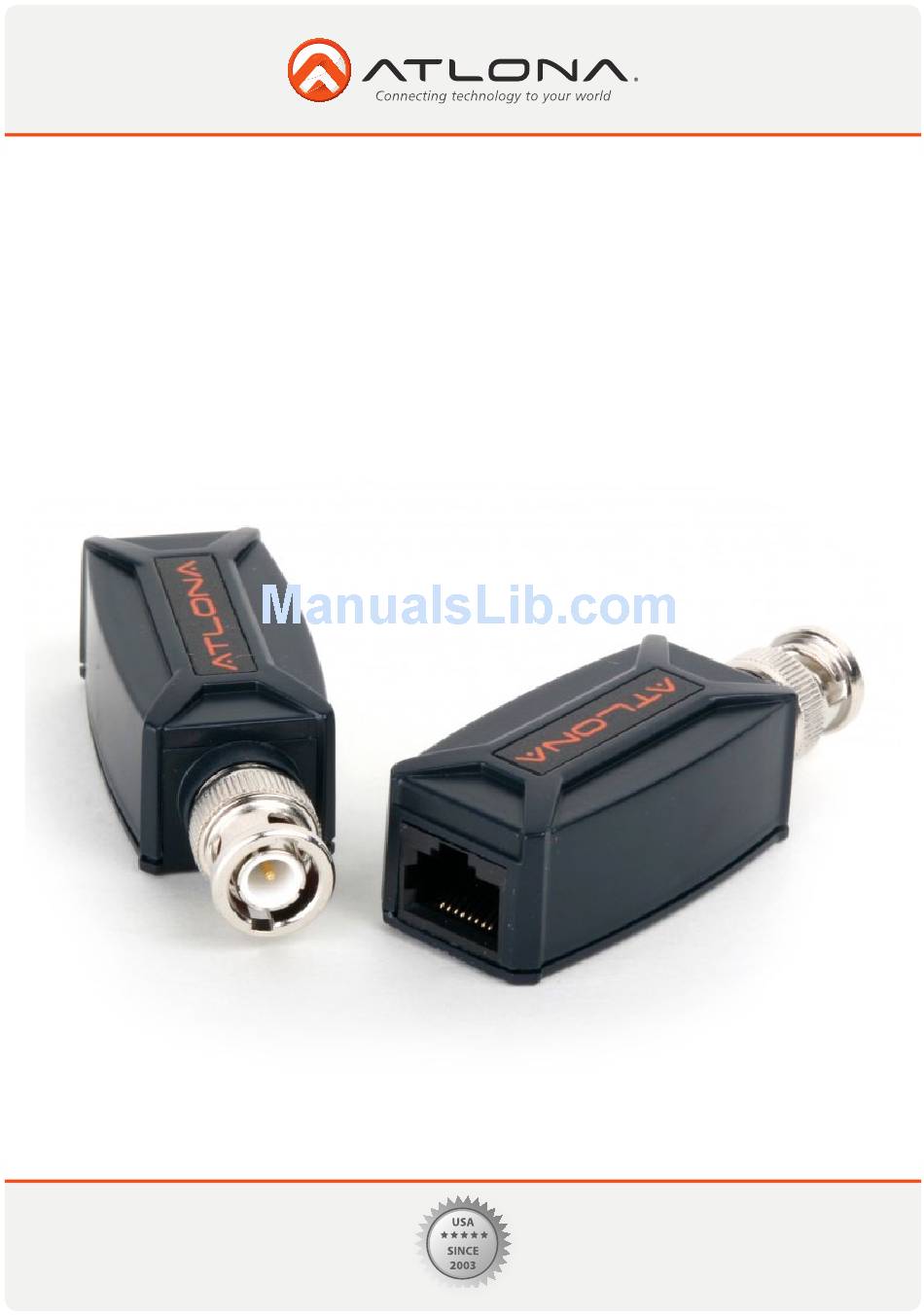

    User Manual BNC Composite Video CAT5 Passive Extender (SENDER/RECEIVER INCLUDED) AT-VBNC400SR Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515...
  • Page 2: Installation

    • Supports full motion Black and White, or color video • Extends Video signal up to 600M or 1800ft (black and white) and up to 1300ft (color) B/W 600M, color 400 (Max) AT-VBNC400SR AT-VBNC400SR B/W 600M, color 400 (Max) AT-AV400U...
  • Page 3: Specifications

    SPECIFICATIONS ITEM NO. AT-VBNC400SR VIDEO INPUT (BNC) VIDEO INPUT 1V p-p, 75 Ohms AUDIO INPUT (BNC CONNECTOR) AUDIO INPUT RJ-45 INPUT RJ-45 OUTPUT TRANSMISSION DISTANCE 600M (B/W), 400M (COLOR) CABLE FOR RJ-45 Twisted Pair CAT 5 (AWG24) POWER DIMENSIONS WxHxDmm 69x25x22 ITEM NO.
  • Page 4 Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515...
  • Page 5: Safety Information

    It may also cause damage to your AT-VBNC400SR. Opening the product will void the warranty. Do not attempt to service the unit. Disconnect the product and contact your authorized Atlona reseller or contact Atlona directly.
  • Page 6: Warranty

    Atlona Technologies’ decision, either return of the price paid for the product, repair, or replacement of the product that does not meet this Limited Warranty and which is returned to Atlona Technologies with a copy of the Customer’s receipt. This Limited Warranty is void if failure of the product has resulted from accident, abuse, misapplication, or natural occurrence.
  • Page 7: Atlona Product Registration

    ATLONA PRODUCT REGISTRATION Thank you for purchasing this Atlona product. - We hope you enjoy it and will take an extra few moments to register your new purchase. Registration creates an ownership record if your product is lost or stolen and helps ensure you’ll receive notification of performance issues and firmware updates.
