VGA & Stereo Audio CAT5 Extender
With Chainable Output
models: AT-2VGA300SL,
AT-4VGA300SL, AT-VGA300RL
AT-2VGA300SL
AT-VGA300RL
AT-4VGA300SL
User Manual
Toll free: 1-877-536-3976
atlona.com
Local: 1-408-962-0515

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AT-2VGA300SL and is the answer not in the manual?

Questions and answers

Summary of Contents for Atlona AT-2VGA300SL

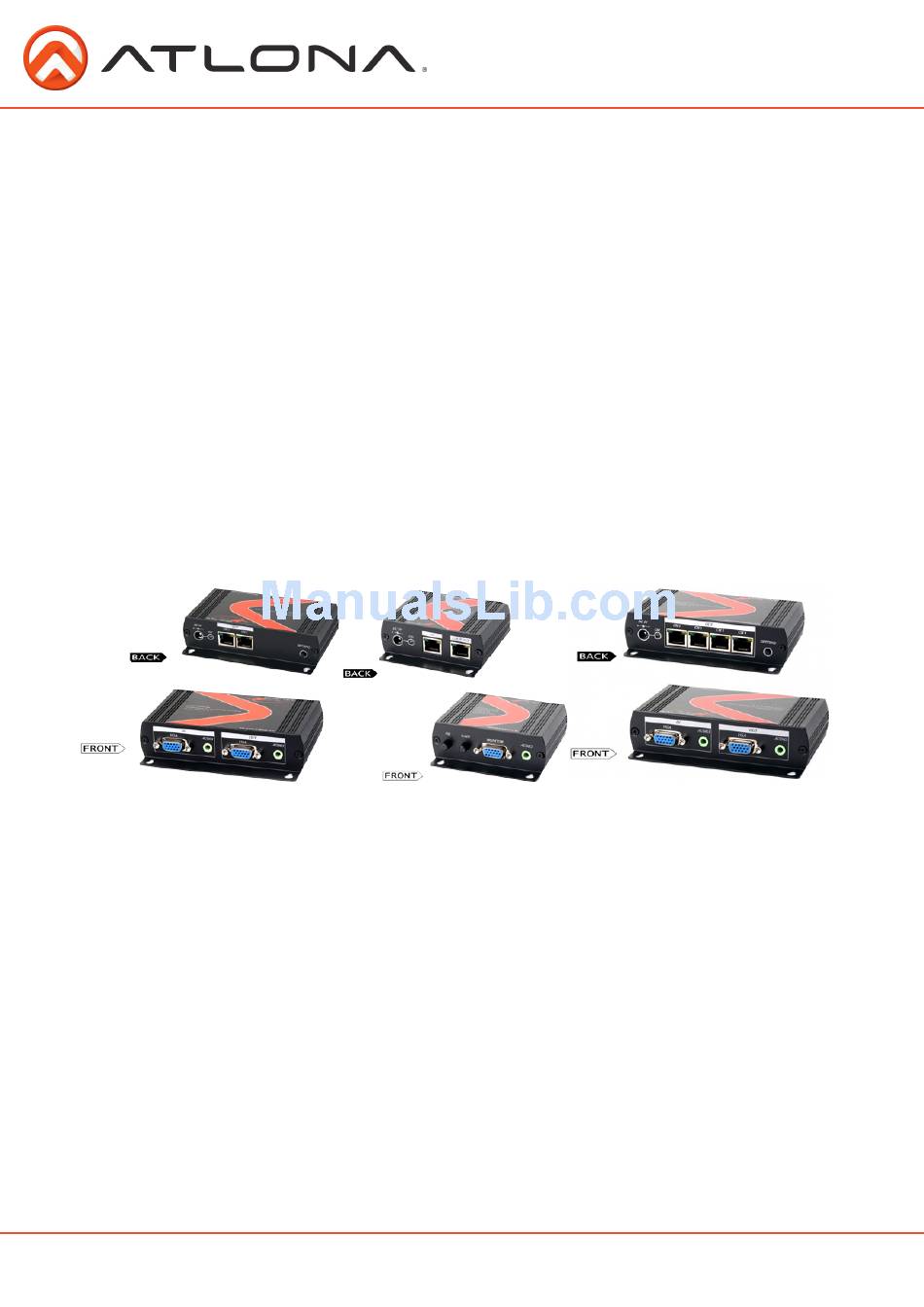

  • Page 1 VGA & Stereo Audio CAT5 Extender With Chainable Output models: AT-2VGA300SL, AT-4VGA300SL, AT-VGA300RL AT-2VGA300SL AT-VGA300RL AT-4VGA300SL User Manual Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
  • Page 2: Table Of Contents

    TABLE OF CONTENTS 1. Introduction 2. Specifications 3. Panel View 4. Switch Settings 5. Connection and Installation 6. Safety Information 7. Warranty 8. Atlona Product Registration Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
  • Page 3: Introduction

    INTRODUCTION AT-2VGA300SL, AT-4VGA300SL (sender units ) are designed to transfer VGA & Stereo Audio signal over cost effective CAT5 cable. AT-VGA300RL ( receiver unit ) has built in chainable output to cascade the other receiver for working range over 1000ft (300 meters).
  • Page 4: Specifications

    SPECIFICATIONS ITEM NO. AT-2VGA300SL AT-4VGA300SL Resolution Up to 1600 x 1200 Video Bandwidth Sender 750MHz / Receiver 350MHz-3db Video Input / Output RGB Analog, 75Ω, 0.7Vp-p Sync Input / Output H/V Separated, 5V TTL Horizontal Frequency 30-95 KHz Vertical Frequency...
  • Page 5: Panel View

    DDC (1280x1024@75Hz Max) setup DDC of local monitor setup DDC backup of local monitor backup DDC of local monitor AT-2VGA300SL LED: Blue (front panel): power on/off RJ45 LE D (Link cable connector) : Yellow LE D status indication:...
  • Page 6: Connection And Installation

    Memory writes error Blink six times: Memory verify error AT-2VGA300SL/AT-4VGA300SL Duplicate DDC step: 1. Dip switch 1 & 2 at “down” position, if the Sender already connected to the local monitor; please jump to the third step. 2. If Sender has not connected with local monitor yet, the yellow LED will keep lit to wait local monitor connection.
  • Page 7 Normally it happens on long CAT 5 cable runs. 2. Recommend to use following cabling design to reduce skew status, and to add special made “skew immunized adap- tor” (2 pieces included at the package). Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
  • Page 8: Safety Information

    It may also cause damage to your AT- 2VGA300SL, AT-4VGA300SL, AT-VGA300RL. Opening the product will void the warranty. Do not attempt to service the unit. Disconnect the product and contact your authorized Atlona reseller or con- tact Atlona directly.
  • Page 9: Warranty

    Atlona requires that products returned are properly packed, preferably in the original carton, for shipping. Cartons not bearing a return authorization or case number will be refused. Atlona, at its sole discretion, reserves the right to reject any products received without advanced authorization. Authorizations can be requested by calling 1-877-536-3976 (US toll free) or 1-408- 962-0515 (US/international) or via Atlona’s website at www.atlona.com.
  • Page 10: Atlona Product Registration

    Atlona’s products may be used in conjunction with. Atlona, at its sole discretion, reserves the right not to extend its warranty offering in instances arising outside its normal course of business including, but not limited to, damage inflicted to its products from acts of god.
