Introducing the USB-1208FS

The USB-1208FS-Plus is an analog input and digital I/O data acquisition device that provides the following
features:

Eight analog input channels that are software-selectable for either eight 11-bit single-ended inputs or four
12-bit differential inputs

Two 12-bit analog output channels

16 digital I/O channels that are independently-selectable as input or output in two 8-bit ports

32-bit event counter input for counting TTL pulses

External digital trigger input

Bidirectional terminal for external clocking or multi-unit synchronization

Screw terminals for field wiring connections
The USB-1208FS is powered by the 5 volt USB supply from your computer. No external power is required.
All I/O connections are made to the device screw terminals.

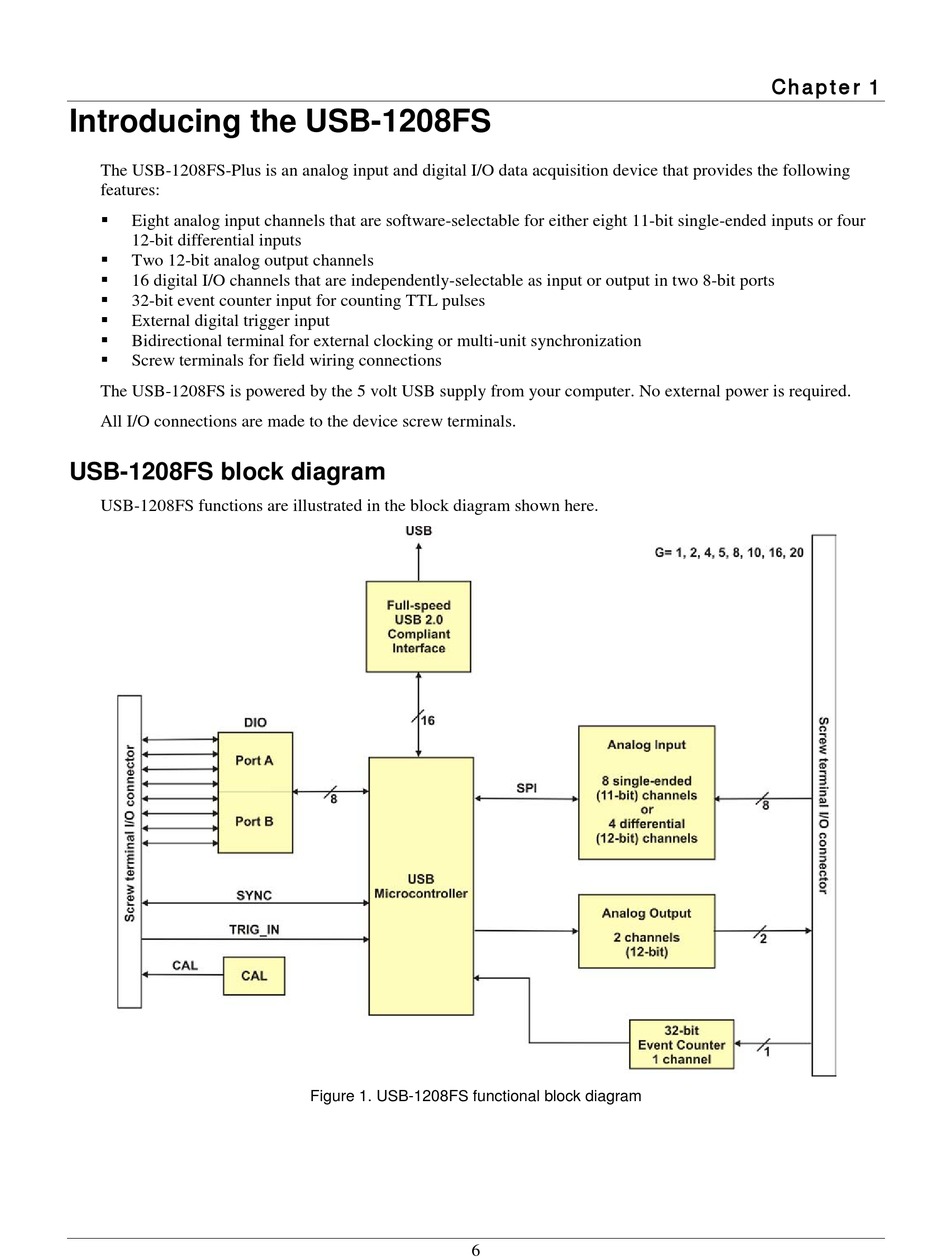

USB-1208FS block diagram

USB-1208FS functions are illustrated in the block diagram shown here.
Figure 1. USB-1208FS functional block diagram
6
Chapter 1
