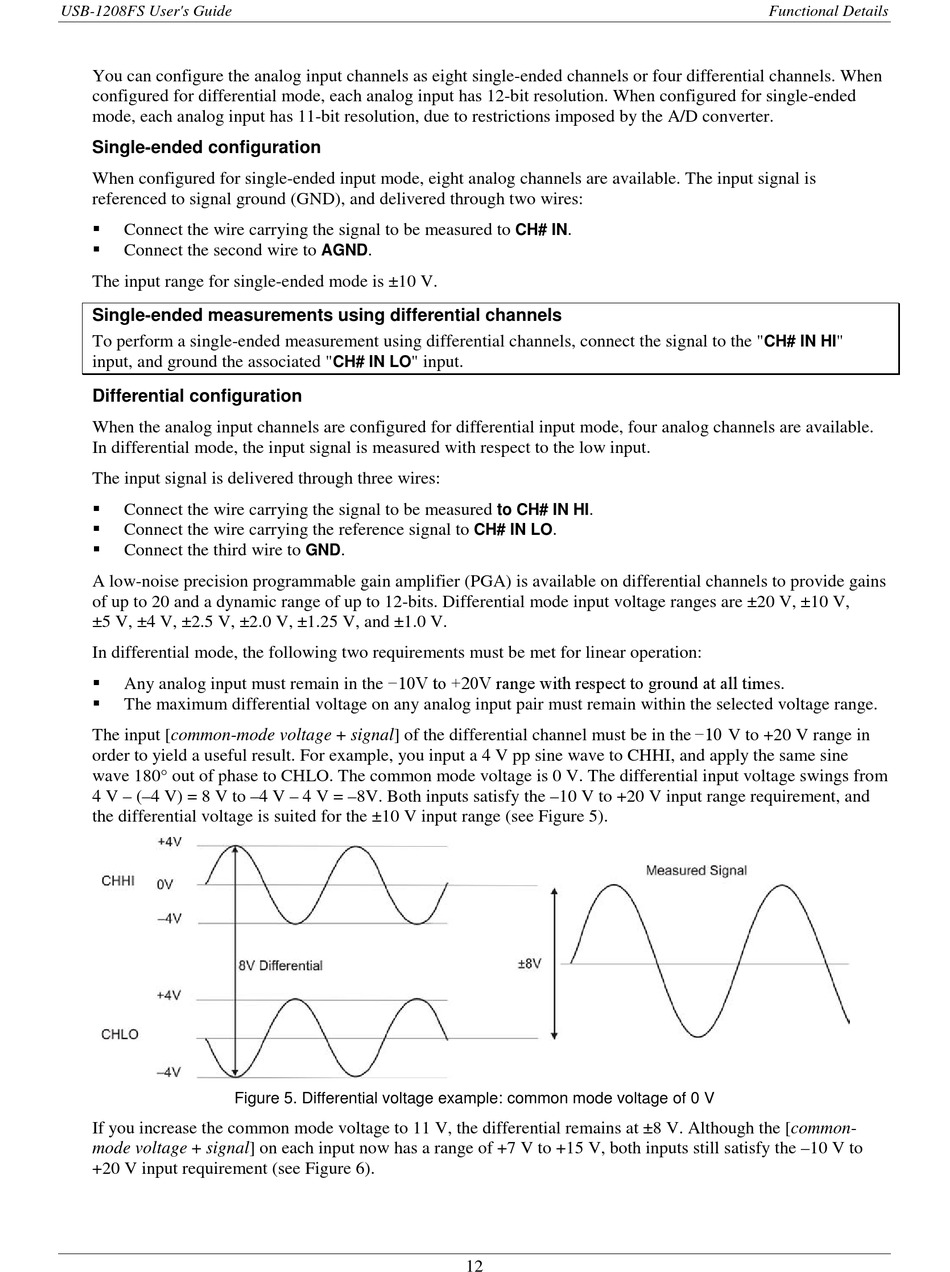

Measurement Computing us-1208fs User Manual page 12

USB-1208FS User's Guide
You can configure the analog input channels as eight single-ended channels or four differential channels. When
configured for differential mode, each analog input has 12-bit resolution. When configured for single-ended
mode, each analog input has 11-bit resolution, due to restrictions imposed by the A/D converter.
Single-ended configuration
When configured for single-ended input mode, eight analog channels are available. The input signal is
referenced to signal ground (GND), and delivered through two wires:

Connect the wire carrying the signal to be measured to

Connect the second wire to
The input range for single-ended mode is ±10 V.
Single-ended measurements using differential channels
To perform a single-ended measurement using differential channels, connect the signal to the "
input, and ground the associated "
Differential configuration
When the analog input channels are configured for differential input mode, four analog channels are available.
In differential mode, the input signal is measured with respect to the low input.
The input signal is delivered through three wires:

Connect the wire carrying the signal to be measured

Connect the wire carrying the reference signal to

Connect the third wire to
A low-noise precision programmable gain amplifier (PGA) is available on differential channels to provide gains
of up to 20 and a dynamic range of up to 12-bits. Differential mode input voltage ranges are ±20 V, ±10 V,
±5 V, ±4 V, ±2.5 V, ±2.0 V, ±1.25 V, and ±1.0 V.
In differential mode, the following two requirements must be met for linear operation:
Any analog input must remain in the −10V to +20V range with respect to ground at all times.


The maximum differential voltage on any analog input pair must remain within the selected voltage range.
The input [common-mode voltage + signal] of the differential channel must be in the −10 V to +20 V range in
order to yield a useful result. For example, you input a 4 V pp sine wave to CHHI, and apply the same sine
wave 180° out of phase to CHLO. The common mode voltage is 0 V. The differential input voltage swings from
4 V – (–4 V) = 8 V to –4 V – 4 V = –8V. Both inputs satisfy the –10 V to +20 V input range requirement, and
the differential voltage is suited for the ±10 V input range (see Figure 5).
Figure 5. Differential voltage example: common mode voltage of 0 V
If you increase the common mode voltage to 11 V, the differential remains at ±8 V. Although the [common-
mode voltage + signal] on each input now has a range of +7 V to +15 V, both inputs still satisfy the –10 V to
+20 V input requirement (see Figure 6).
.
AGND
CH# IN LO " input.
CH# IN LO
.
GND
12
CH# IN .
to CH# IN HI .
.
Functional Details
"
CH# IN HI
