Summary of Contents for Measurement Computing USB-2404-60

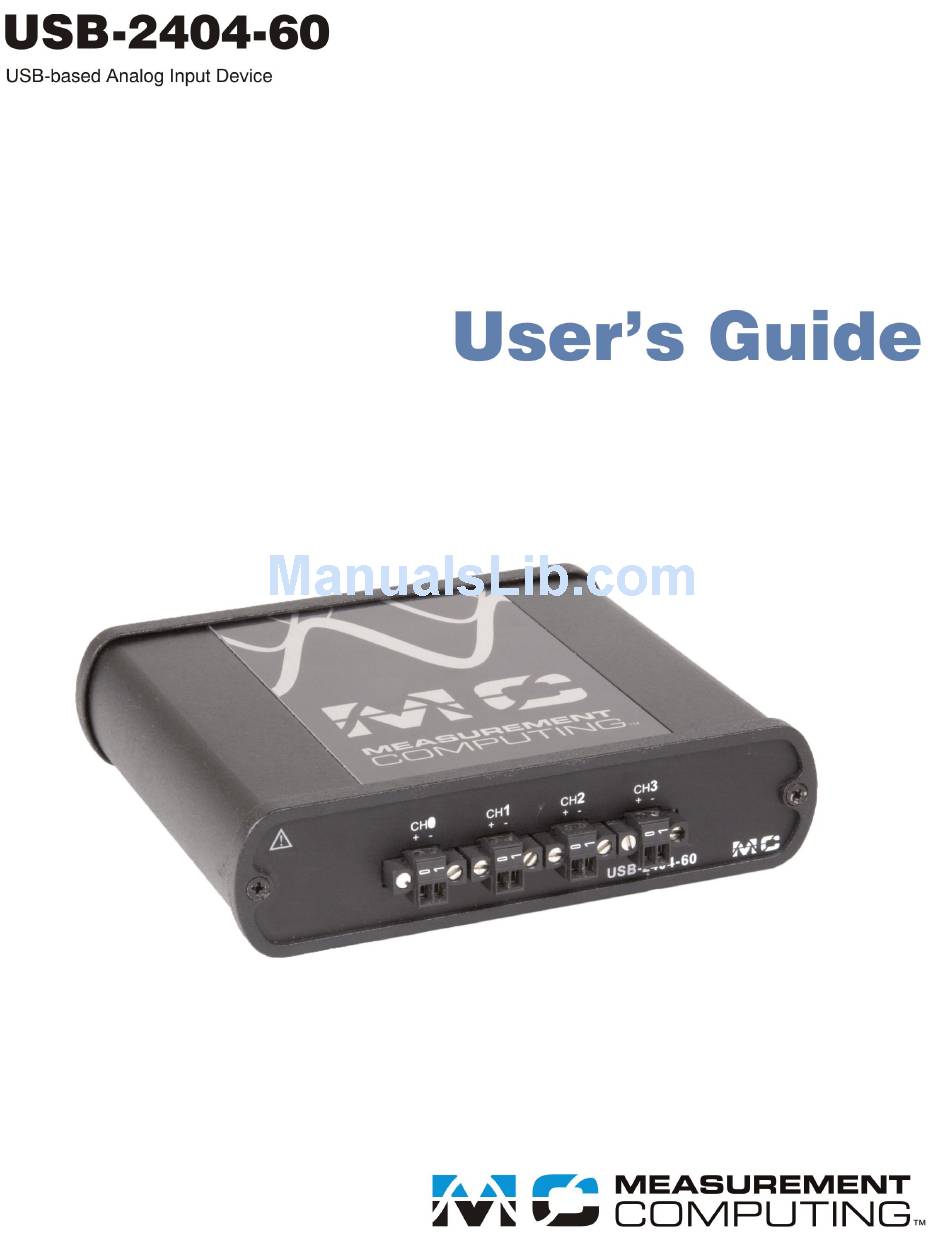

- Page 2 USB-2404-60 USB-based Analog Input Device User's Guide Document Revision 2A, November, 2009 © Copyright 2009, Measurement Computing Corporation...
- Page 3 Other product and company names mentioned herein are trademarks or trade names of their respective companies. © 2009 Measurement Computing Corporation. All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in any form by any means, electronic, mechanical, by photocopying, recording, or otherwise without the prior written permission of Measurement Computing Corporation.
-
Page 4: Table Of Contents
Overview: USB-2404-60 features ........................6 USB-2404-60 block diagram ..........................6 Software features ..............................7 Chapter 2 Installing the USB-2404-60 ........................8 What comes with your USB-2404-60 shipment? ....................8 Hardware ..................................8 Additional documentation ..............................8 Optional accessories ................................. 8 Unpacking the USB-2404-60 ..........................8 Installing the software ............................9... -
Page 5: About This User's Guide
About this User's Guide What you will learn from this user's guide This user's guide explains how to install, configure, and use the USB-2404-60, and refers you to related documents available on our web site, and to technical support resources. -
Page 6: Introducing The Usb-2404-60
Chapter 1 Introducing the USB-2404-60 Overview: USB-2404-60 features This user's guide contains all of the information you need to connect the USB-2404-60 to your computer and to the signals you want to measure. ® ® The USB-2404-60 is a USB 2.0 high-speed device that is supported under popular Microsoft Windows operating systems. -
Page 7: Software Features
Introducing the USB-2404-60 Software features For information on the features of InstaCal and the other software included with your USB-2404-60, refer to the Quick Start Guide that shipped with your device. The Quick Start Guide is also available in PDF at www.mccdaq.com/PDFmanuals/DAQ-Software-Quick-Start.pdf. -
Page 8: Installing The Usb-2404-60
As with any electronic device, you should take care while handling to avoid damage from static electricity. Before removing the USB-2404-60 from its packaging, ground yourself using a wrist strap or by simply touching the computer chassis or other grounded object to eliminate any stored static charge. -
Page 9: Installing The Software
USB drivers. To connect the USB-2404-60 to your system, turn your computer on, and connect the USB cable to a USB port on your computer or to an external USB hub that is connected to your computer. The USB cable provides power and communication to the USB-2404-60. -
Page 10: Functional Details

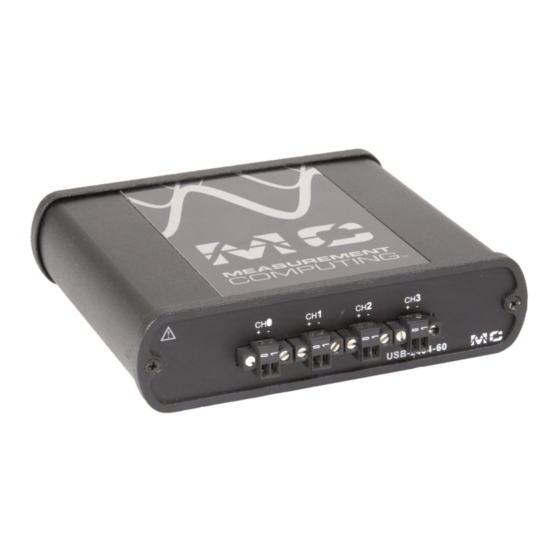

Figure 3. Rear panel (USB connection and LED) Screw terminals (CH0 to CH3) The USB-2404-60 has four 2-terminal detachable screw terminals for connection to four isolated analog inputs. The maximum sampling rate is 50 kS/s per channel, and the input voltage range is ±60 V, nominal. The channels may be sampled individually or simultaneously. -
Page 11: Usb Connector
Connect the positive signal of the signal source to the CH+ screw terminal. Connect the negative signal of the signal source to the CH – screw terminal. The following figures show the connections between the USB-2404-60 and both a grounded signal source and a floating signal source. Signal Source USB-2404-60 Figure 5. -
Page 12: Analog Input Circuitry
Categories. Analog input circuitry The USB-2404-60 analog input channels are floating with respect to earth ground and to each other. The incoming analog signal on each channel is conditioned, buffered, and then sampled by a 24-bit Delta-Sigma ADC. Each channel provides an independent signal path and ADC, enabling you to sample all four channels simultaneously. -
Page 13: Stopband Bandwidth
Alias-free bandwidth Any signal that appears in the alias-free bandwidth of the USB-2404-60 is not an aliased artifact of signals at a higher frequency. The alias-free bandwidth (0.453 · is defined by the ability of the filter to reject frequencies above the stopband frequency. -
Page 14: Specifications
Chapter 4 Specifications All specifications are subject to change without notice. Typical for the range 0 to 60 °C unless otherwise noted. All voltages are relative to the CH– signal on each channel unless otherwise noted. Analog input Table 1. Analog input specifications Parameter Conditions Specification... -
Page 15: Accuracy
USB-2404-60 User's Guide Specifications Accuracy Table 2. Analog input accuracy Measurement conditions Percent of reading Percent of range (gain error) (offset error) (Note 2) ±0.13% Calibrated maximum (–0 to 60 ºC) ±0.05% ±0.03% Calibrated typical (25 ºC, ±5 ºC) ±0.008% ±1.2%... -
Page 16: Safety Voltages
USB-2404-60 User's Guide Specifications Safety voltages Table 7. Safety specifications (Note 3) Parameter Conditions Specification Channel-to-earth ground isolation Continuous 250 Vrms, Measurement Category II (Note 4) Withstand 2,300 Vrms, verified by a 5 sec dielectric withstand test Channel-to-channel isolation Continuous... -
Page 17: Declaration Of Conformity
Address: 10 Commerce Way Suite 1008 Norton, MA 02766 Measurement Computing Corporation declares under sole responsibility that the product USB-2404-60 to which this declaration relates is in conformity with the relevant provisions of the following standards or other documents: Category: Electrical equipment for measurement, control and laboratory use. - Page 18 Measurement Computing Corporation 10 Commerce Way Suite 1008 Norton, Massachusetts 02766 (508) 946-5100 Fax: (508) 946-9500 E-mail: info@mccdaq.com www.mccdaq.com...
