1.4 Electrical Installation

1.4.1 Electrical Installation in General
Details of terminal tightening torques.
VLT
2803 - 2875
2880 - 2882,
2840 PD2
Table 1.3: Tightening of terminals.

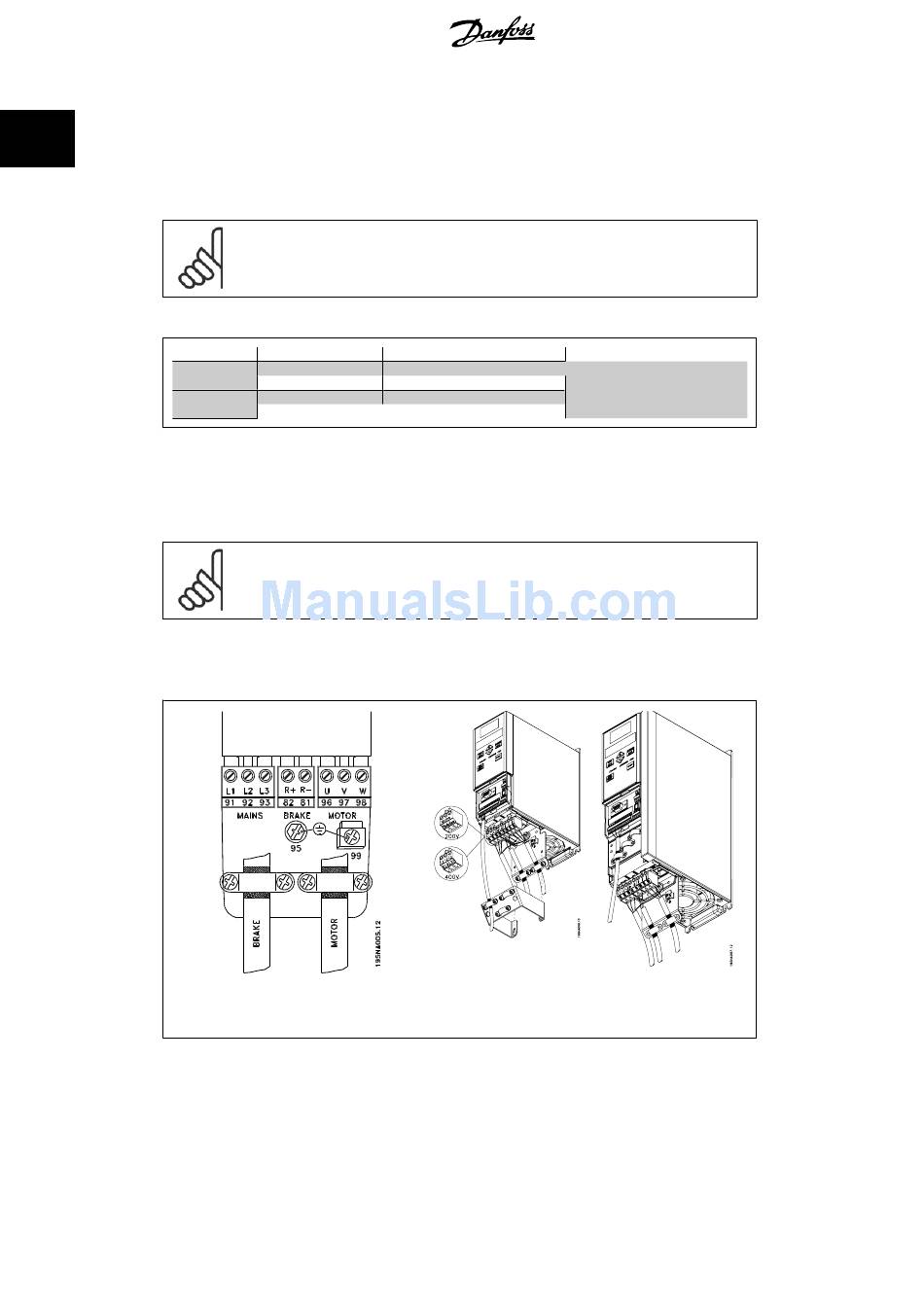

1.4.2 Power Cables

Connect mains to the mains terminals of the frequency converter, i.e. L1, L2 and L3 and the earth
connection to terminal 95.
Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: info@clrwtr.com
NB!
All cabling must comply with national and local regulations on cable cross-sections
and ambient temperature. Copper conductors required, (60-75° C) recommended.
Terminals
Power mains brake
Earth
Power mains brake
Earth
NB!
Please note that the power terminals can be removed.
Torque (Nm) Torque, Control Cables (Nm)
0.5 - 0.6
2 - 3
1.2 - 1.5
2 - 3
VLT 2803 - VLT 2815 VLT 2822 - VLT 2840
VLT 2800 Quick Guide
0.22 - 0.25
