1 Quick Guide
1

1.3.2 Terminal cover

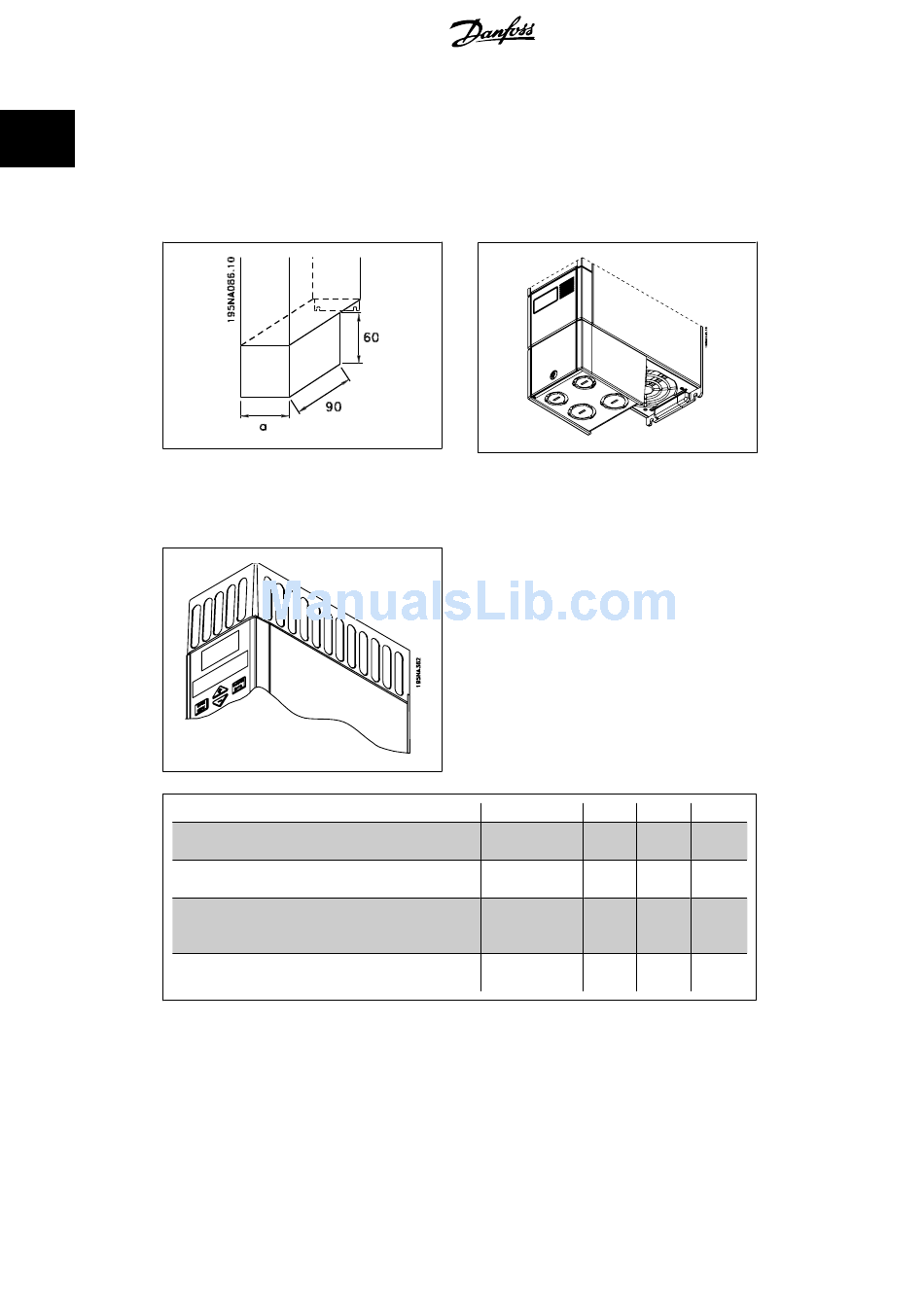

The drawing below gives the dimensions for NEMA 1 terminal covers for VLT 2803-2875.
Dimension 'a' depends on the unit type.

1.3.3 IP 21 solution

Type
VLT 2803-2815 200-240 V,
VLT 2805-2815 380-480 V
VLT 2822 200-240 V,
VLT 2822-2840 380-480 V
VLT 2840 200-240 V,
VLT 2822 PD2, TR1 2855-2875
380-480 V
TR1 2880-2882 380-480 V,
VLT 2840 PD2
Table 1.2: Dimensions
Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: info@clrwtr.com
Code number A
195N2118 47 80
195N2119 47 95
195N2120 47 145
195N2126 47 205
VLT 2800 Quick Guide
B C
170
170
170
245
