Pre-installation and application warnings

Firmware notes: This section highlights important information for this specific firmware and will assist in
pricing accordingly, as well as bringing awareness to any operational or vehicle limitations.
T-Harness
compatible
Important! RSR installations are NOT compatible with vehicles equipped with a manual transmission.
Š
Remote Start Ready (RSR) is a function that enables the interface module to remote start the vehicle completely on its own.
Š
Consequently, there is no need for an aftermarket or an OEM remote starter in order to start the vehicle from a distance.
SmartStart Compatible: SmartStart is equipped with D2D, which means it can be connected to an interface module and
Š
used in Remote Start Ready (RSR) mode without the use of a remote starter. See "Module programming" for more information.
Unless specified otherwise, all connectors are displayed from the wire side, with the exception of the OBDII diagnostic
Š
connector.
Important! This firmware does NOT support Immobilizer bypass. One (1) programmed OEM key must be wired into the
Š
vehicle to complete the installation of a remote starter.
Refer to "Vehicle connections" following the wiring diagram.
Š
General notes: This section highlights important information for this specific firmware.
For Key Wrap instructions, refer to "Immobilizer interface with OEM immobilizer receiver".
[1]

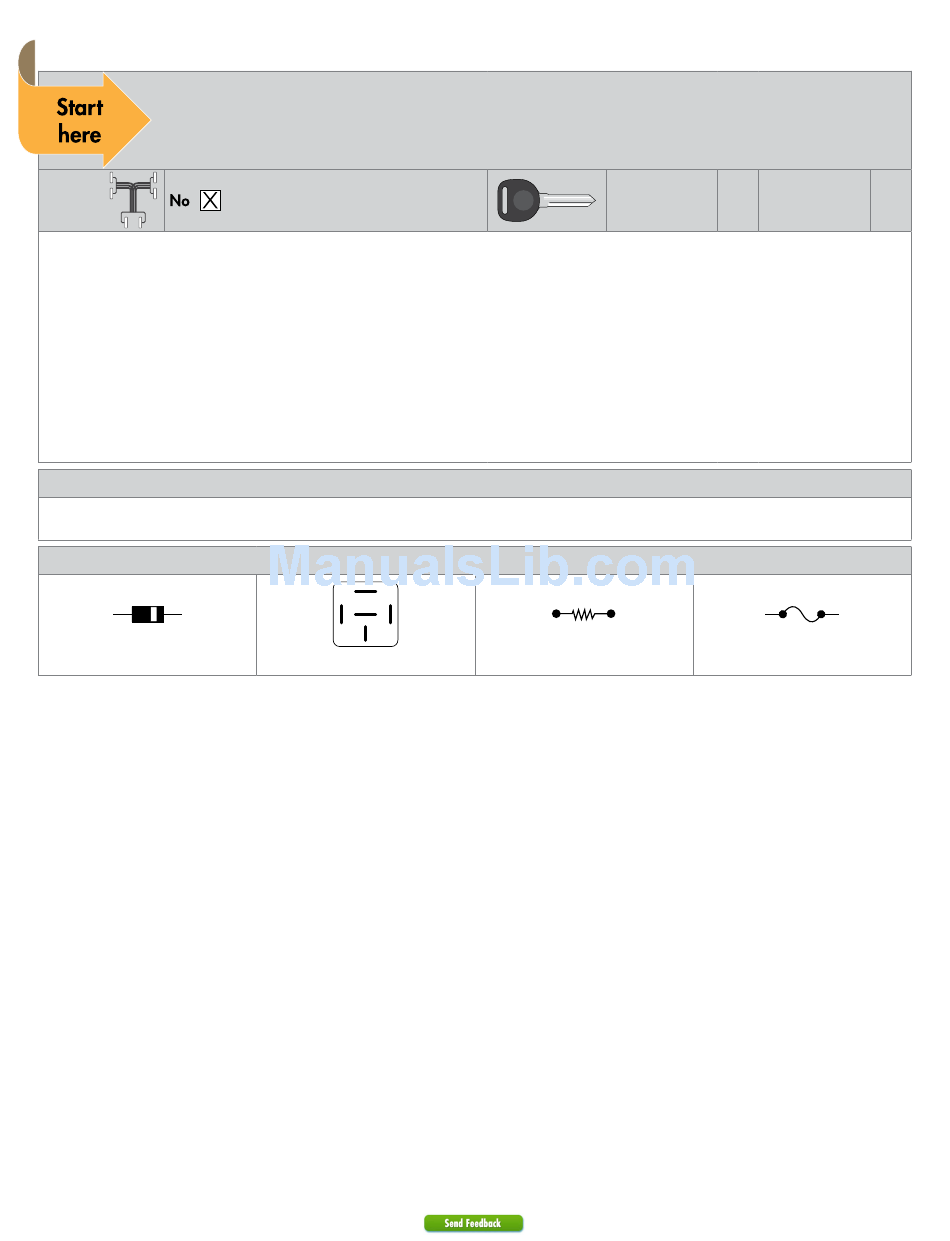

Additional parts required (maximum required):
Diode 6A
0 x 1A Diode
5
87
87a
86 85
30
0 x Relay
Keys required for
programming
Resistor 100Ω
0 x Resistor
403.VW06 1.27 2016 Volkswagen Golf (Smart Key)
© 2017-02-08 Directed. All rights reserved.
1 Keys required for 1
operation
Fuse 7.5A
0 x Fuse
