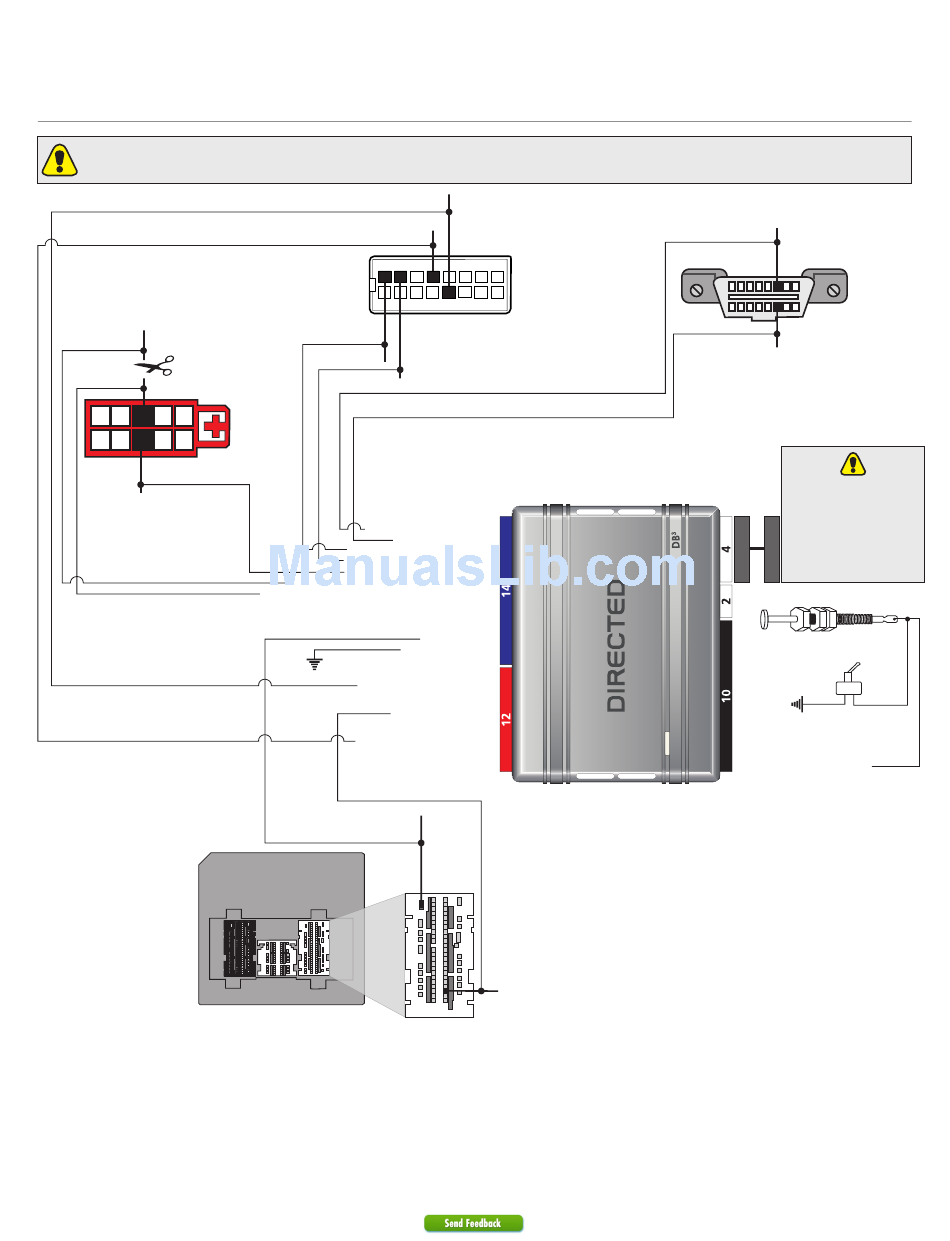

Wiring diagram

Important!
The Hood Pin and Remote Start Safety Override Switch are mandatory safety devices, but are NOT supplied with the DBALL.
CUT
Parking Light Interrupt:
Red/White, pin 3
1 2 3 4 5
6 7 8 9 10
(+) Parking Light:
Gray/Yellow, pin 8
Headlight Switch
(red 10-pin connector)
6
(-) PTS 1: Violet, pin 4
(-) PTS 2: Violet/Blue, pin 13
16 15
7
8
HS CAN 2 High:
HS CAN 2 Low:
Orange/Green,
Orange/Brown,
pin 16
pin 15
HS CAN 1 High: Tan/Black: 3
HS CAN 1 Low: Tan: 4
HS CAN 2 High: Orange/Green: 5
HS CAN 2 Low: Orange/Brown: 6
(+) Parking Light Output: Brown: 7
Parking Light Interrupt (vehicle side): Yellow: 8
Parking Light Interrupt (conn. side): Orange/Yellow: 9
Key Wrap: Orange/Red: 10
[1]
Key Wrap: Yellow/Red: 11
[1]
Key Wrap: Brown/Red: 12
[1]
(-) Ground: Black: 14
(-) PTS 1 Output: Green/Black: 2
(+) Brake Output: Gray: 6
(-) PTS 2 Output: Violet/Brown: 9
(+) 12V:Red/White or
Red/Gray, pin 1
A2
A1
A3
Electronic Steering
14 13 12 11 10 9
Column Module
6 3 2
5 4 1
(black 16-pin under column)
(+) 12V: Red: 13
13 38
63
1
(+) Brake:
Black/Red,
pin 58
OBDII Diagnostic Connector
HS CAN 1 High:
Orange/Red, pin 6
1 8
9 16
HS CAN 1 Low:
Orange/Brown, pin 14
You can connect to either
a XL202 RFTD OR a
SmartStart module.
Refer to the
SmartStart/XL202
Installation Notes for
more information.
Hood Pin
Note: hood pin only required on
vehicles not equipped with a
factory hood pin.
Remote Start Safety
Override Switch
6: White/Black: (-) Hood Input
403.VW06 1.27 2016 Volkswagen Golf (Smart Key)
