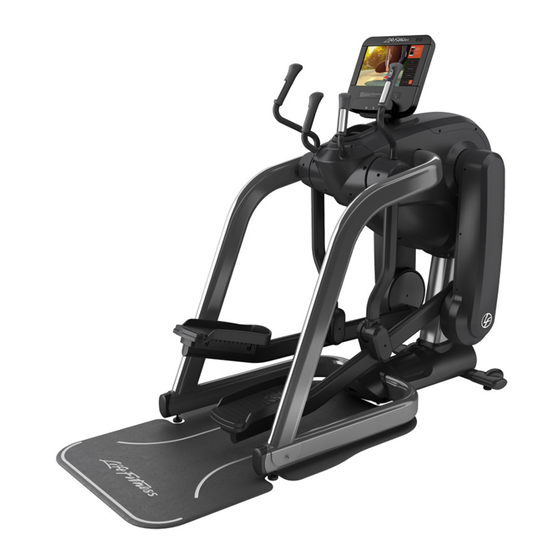

ELEVATION™ SERIES FLEXSTRIDER®
VARIABLE-STRIDE TRAINER
ASSEMBLY INSTRUCTIONS
M051-00K97-0001 REV A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Elevation Series Flexstrider and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for LifeFitness Elevation Series Flexstrider

Summary of Contents for LifeFitness Elevation Series Flexstrider

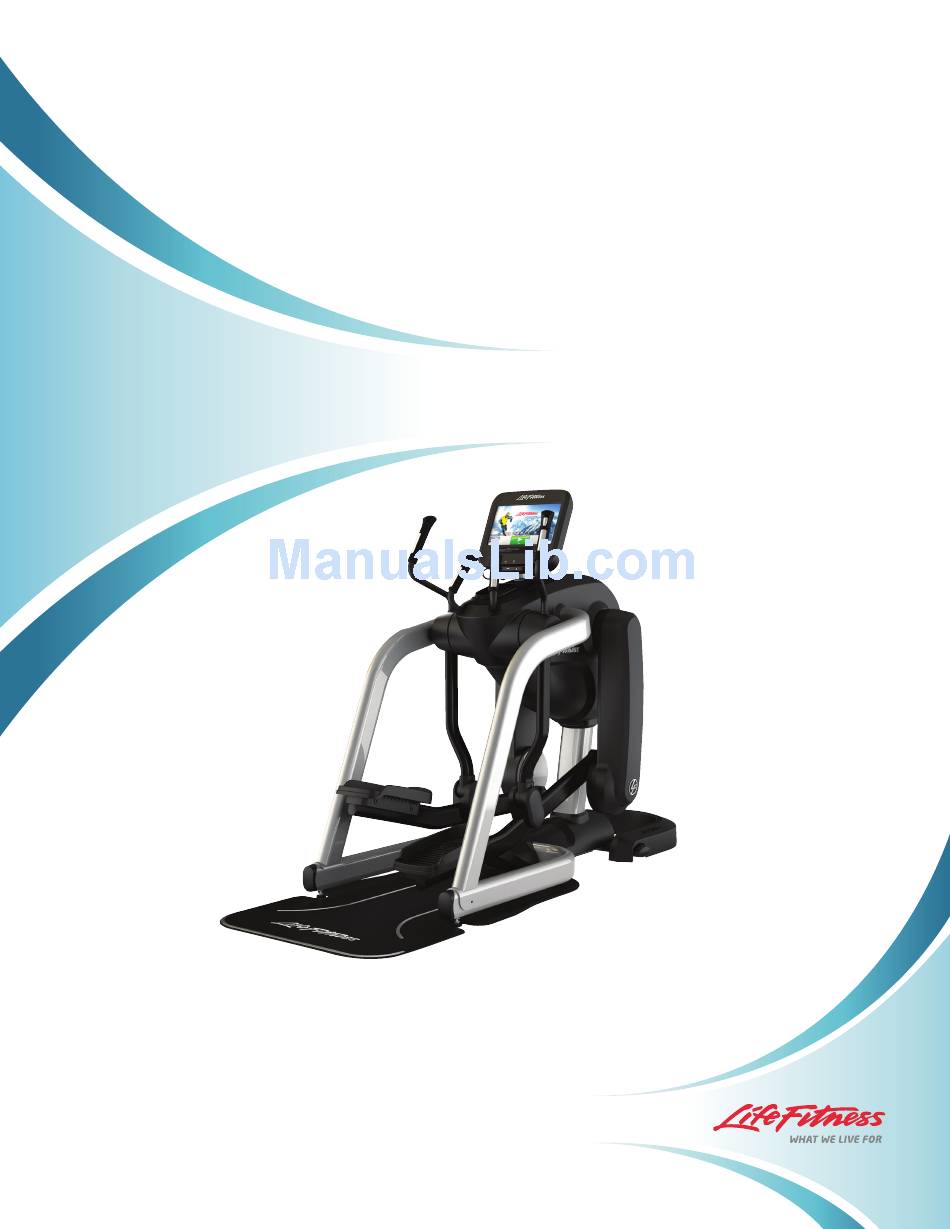

  • Page 1 ELEVATION™ SERIES FLEXSTRIDER® VARIABLE-STRIDE TRAINER ASSEMBLY INSTRUCTIONS M051-00K97-0001 REV A...
  • Page 3 Parc Industrial de Petit-Rechain Operating Hours: 9.00h-17.00h (CET) 4800 Verviers BELGIUM Telephone: (+32) 87 300 942 Fax: (+32) 87 300 943 Service Email:service.benelux@lifefitness.com Sales/Marketing Email: marketing.benelux@lifefitness.com Operating Hours: 9.00h -17.00h (CET) Also check www.lifefitness.com for local representation or distributor/dealer...

  • Page 4: Table Of Contents

    4.2 Preventive Maintenance Schedule 4.3 How to Obtain Product Service 5. Assembly 5.1 Component List and Hardware 6. Specifications 6.1 Elevation Series FlexStrider Variable-Stride Trainer 7. Warranty Operation Manuals and other Product Information available at https://www.lftechsupport.com/web/document-library/documents © 2014 Life Fitness, A division of Brunswick Corporation. All Rights Reserved. Life Fitness is a registered trademark of Brunswick Corporation. Fitlinxx is a trademark of Fitlinxx, Inc.

  • Page 5: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS Read all instructions before using the Life Fitness FlexStrider. CAUTION: Any changes or modifications to this equipment could void the product warranty. ƒ DANGER: To reduce the risk of electrical shock, always unplug this Life Fitness product be- fore cleaning or attempting any maintenance activity.
  • Page 6 Do not allow other people to interfere in any way with the user or equipment during a workout. ƒ Allow LCD consoles to “normalize” with respect to temperature for one hour before plugging the unit in and using. ƒ Use these products for their intended use as described in this manual. Do not use attachments that have not been ƒ...
  • Page 7 onsign É s É Curit É mportantes AVERTISSEMENT: Lire toutes les instructions avant d’utiliser le tapis roulant. AVERTISSEMENT: Des systèmes de surveillance de fréquence cardiaque peuvent être inexacts. Trop d’exercices peu- vent entraîner des blessures sérieuses, voire mortelles. En cas de sensation d’évanouissement, arrêter immédiatement l’entraînement.
  • Page 8 L’appareil ne doit jamais être laissé sans surveillance lorsqu’il est branché. Débranchez de la prise lorsque vous ƒ ne l’utilisez pas, et avant de mettre le ou le décollage pièces. Ne pas faire fonctionner sous une couverture ou un oreiller. Trop de chauffage peuvent survenir et causer un in- ƒ...

  • Page 9: Flexstrider Variable-Stride Trainer Overview

    ® o triDer verview Cup Holder Console Contact Heart Rate Sensor Contact Heart Rate Sensor Pedal Floor Mat Transport Wheel Plug for Transformer...

  • Page 10: Initial Setup

    nitial etup Read the entire User Manual before setting up the FlexStrider Variable-Stride Trainer. Note: This FlexStrider Variable-Stride Trainer is speed independent. Resistance can be adjusted by means other than speed. See Specifications. Grounding Instructions This product must be grounded. If it should malfunction or breakdown, grounding provides a path of least resistance for electric current to reduce the risk of elec- tric shock.
  • Page 11 How to Stabilize the FlexStrider Variable-Stride Trainer Once the cross-trainer is positioned in the room lower the levelers on the front stabilizer (B) to contact the floor. All four wheels must be completely off the floor. The levelers will keep the cross-trainer fixed to the floor while using it.

  • Page 12: Service And Technical Data

    2 minutes for general disinfection purposes. Contact Life Fitness Customer Support Services to order these cleaners. Call 1-800-351-3737 or email: customersupport@lifefitness.com. LIFE FITNESS Compatible Cleaners Mild soap and water or a mild non-abrasive household cleaner can also be used to clean the display and all exterior sur- faces.

  • Page 13: Preventive Maintenance Schedule

    reventive aintenanCe CheDule Item Weekly Monthly Bi-Annually Console Overlay Clean Inspect Bottle Holders Clean Inspect Console Mounting Bolts Inspect Frame Clean Inspect Plastic Covers Clean Inspect Lifepulse Sensors Clean / Inspect Pedals and Straps Clean Inspect ow to btain roDuCt erviCe 1.

  • Page 14: Assembly

    ssembly & h omponent arDware Identify the following components after unpacking your FlexStrider. The tools needed for assembling the product are included. Item Description M4.2 X 0.7 6G6G X 19 DIN PHL PAN AB ST ZB M8 X 1.25 6G6G X 70 DIN UNS HEX CS ST ZN M5 X .8 X 14 PHL PAN MS ST BZ SCR: M4.2 X 0.7 6G6G X 25 DIN PHL PAN AB ST ZS M8 X 1.25 6G6H X 16 UNS HXW CS ST ZB...
  • Page 15 M4.2 X 19MM Phillips Pan HeadScrew (#1) M8 X 70MM Hex Screw (#2) M5 X 8MM M4.2 X 25MM Phillips Pan Head Screw (#3) M8 X 16MM Screw (#5) Phillips Pan Head Screw (#4)
  • Page 16 24.5-31.5 ft. lbs. (33.2-42.7 Nm)
  • Page 17 17.4-21.7 in. lbs. (2.0-2.5 Nm)
  • Page 18 Discover SI Discover SE Discover SE IPTV...
  • Page 20 24.5-31.5 ft. lbs. (33.2-42.7 Nm)
  • Page 21 24.5-31.5 ft. lbs. (33.2-42.7 Nm)
  • Page 25 MAKE SURE ALL HARDWARE IS TIGHT Controleer of alle bevestigingen goed vast zitten Vérifier que toute la visserie est serrée Sicherstellen, dass alle Befestigungsteile festgezogen sind Assicurarsi che tutta la bulloneria sia ben stretta Certifique-se de que todas as peças estejam bem apertadas Asegúrese de que todas las piezas estén firmes...

  • Page 26: Specifications

    peCiFiCations 6.1 e levation eries triDer ariable triDe rainer Designed Use: Heavy/Commercial Max User Weight: 400 pounds / 181 kilograms Pedal Size: 15.87 in / 40.3 cm Drive Type: Poly -V belt-drive Power Requirements: 120 Volt (U.S.), 220-240 Volt (International High Voltage) Accessories: Belt/Generator/Brake Resistance System:...

  • Page 27: Warranty
