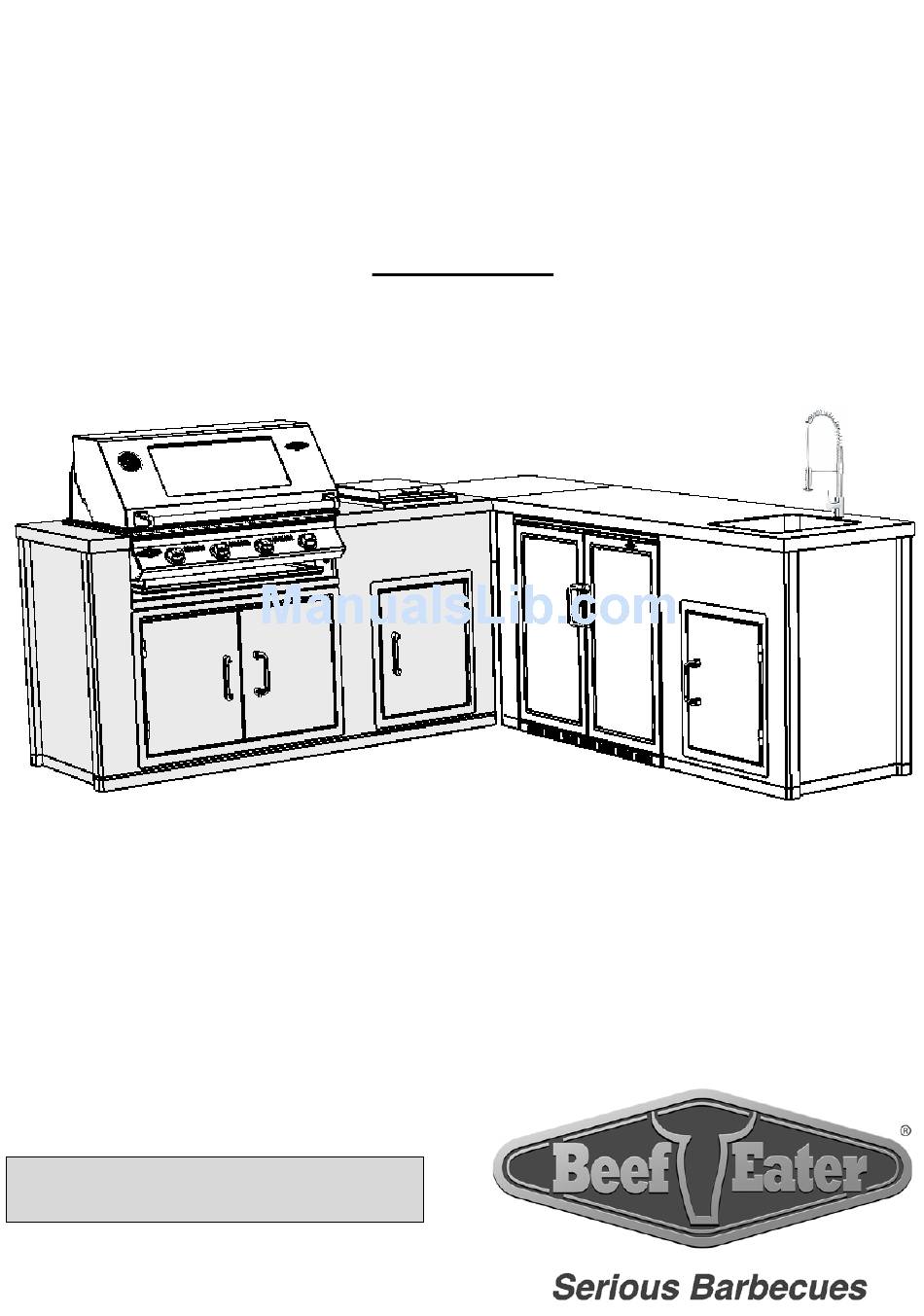

- Page 1 BeefEater Free-Standing Outdoor Kitchen Barbecue Cabinets Assembly Procedure Part No.: 77440 77450 For outdoor use only!
- Page 2 To assemble each of the cabinets follow these steps: Tip: it is best to assemble these cabinets as close as possible to where they will be used. ASSEMBLY: Step 1: Lay the Base Frame of the cabinet on the ground upside down, and screw the 4 legs to place.
- Page 3 Step 3: In a similar manner to Step 2, position the Front panel on the Base, and lock to place: Step 4: Lower the two Side Panels in between the Front and Back panels on the inside. Engage the two pins on the bottom, and lock to place with 2 screws on the top for each panel...
- Page 4 Step 5: Put the bottom panel onto the base of the cabinet: Step 6: Insert the Divider Panel:...
- Page 5 Step 7: Place the top covering panel over the divider (note the position of the hole for the Hose): Step 8: Place the Stainless Steel trim on the front bottom of the Barbecue cutout:...
-
Page 6: Care And Maintenance
Step 9: Carefully place the BenchTop in position Note: The 4 pins at the corners of the cabinet sides need to engage with the Holes at the benchtop’s underside. Step 10: Assemble the doors. The frame of each door fits the opening in the cabinet, and is secured to place with the fasteners supplied. -
Page 7: Warranty
WARRANTY: Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. -
Page 8: Technical Information
TECHNICAL INFORMATION Note: Do not modify the BeefEater Outdoor Kitchen. Any deviation from factory structure could result in dangerous situations, and cause the voiding your warranty. Dimensions Width Height Depth Weight (Cabinet (Cabinet only) only) (Cabinet only) Cabinet only [mm] #4 Barbecue Cabinet 1700 90 kg...
