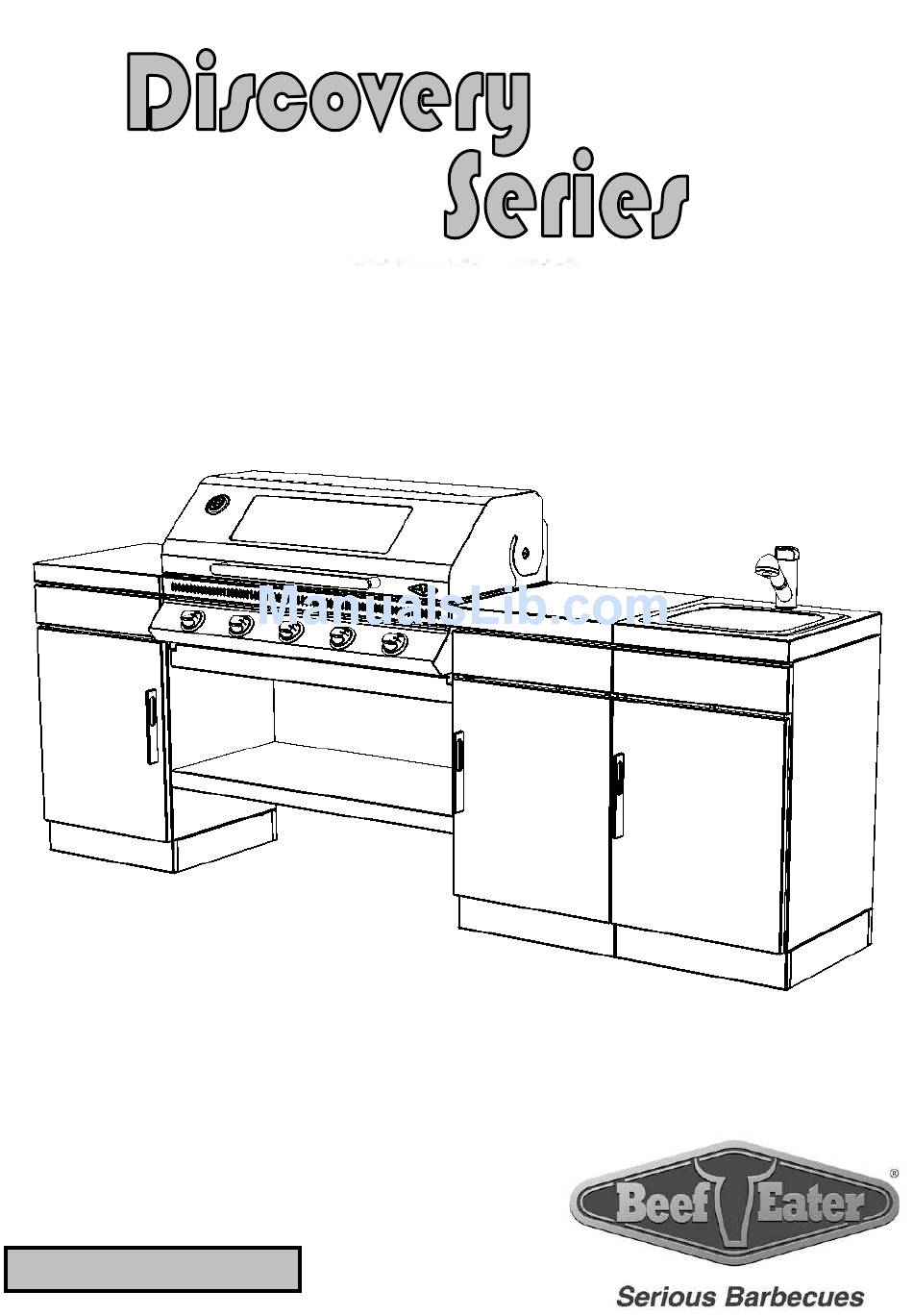

- Page 1 1100 Ou t door Kit ch e n Asse m bly a nd Ope r a t ing I nst r uct ions To suit m ode ls: 1 1 0 0 s 1 1 0 0 e 1 1 0 0 3 , 4 or 5 Bur ne r s ALL MODULES FOR OUTDOOR USE ONLY...
- Page 2 Content*: Main Parts Bolt Pack Content** Qt y descript ion Qt y descript ion t on M6 x 30 screw 1100 Series BBQ wit h Hood M6 x 12 screw St andard Cabinet M4 x 10 screw Heat Shield spacer Fiber washer Base Shelf M6 Nut...
- Page 3 1100 Series Outdoor Kitchen Assembly Procedure Important Note: It is easier to do all assembly work while components are lying on their back, so that they do not need to be supported in the air. Once completed, the assembly can be brought back upright, leveled and completed. If choosing to work this way, ensure to remove all loose items from the different parts, and lay back on a padded, flat and level surface, not too far from where you wish the Outdoor Kitchen to stand.
- Page 4 St e p 3 4 x ‘D’, 4 x ‘B’, 1 x ‘F’ Connect t he base shelf t o place. Once done, st and t he w hole assem bly upright . Fit rubber gr om m et . St e p 4 4 x ‘C’, At t ach t he Fr ont Guard.
-
Page 5: Door Handle
D oor H a ndle Cabinet handles should be m ount ed using t he bot t om and m iddle holes. To r e ve r se a door dir e ct ion Doors ar e fully rev er sible, and can be Right or Left hand opening. - Page 6 Other Modules and accessories I f you have purchased ot her, opt ional m odules t o be part of your Out door Kit chen, here are a few hint s on assem bly and funct ion. Ca bine t s Posit ion each cabinet t o be added in it s corr ect posit ion, level it wit h t he Out door Kit chen, and t hen fast en t o t he near cabinet wit h t he 4 scr ews included.
- Page 7 Side Bur ne r M odule The side burner is t o be connect ed t o t he Gas supply. BeefEat er r ecom m ends posit ioning t he side burner as close as possible t o t he BBQ, and nev er using a rubber hose t o connect longer t han 1.5m .
-
Page 8: Technical Information
W a r r a nt y War rant y t erm s and condit ion as list ed in Barbecue I nst ruct ions book P. 11 apply t o t his Out door Kit chen as w ell. All part s and w orkm anship of t his Out door Kit chen ar e cov ered for a period of 1 year from dat e of purchase.
