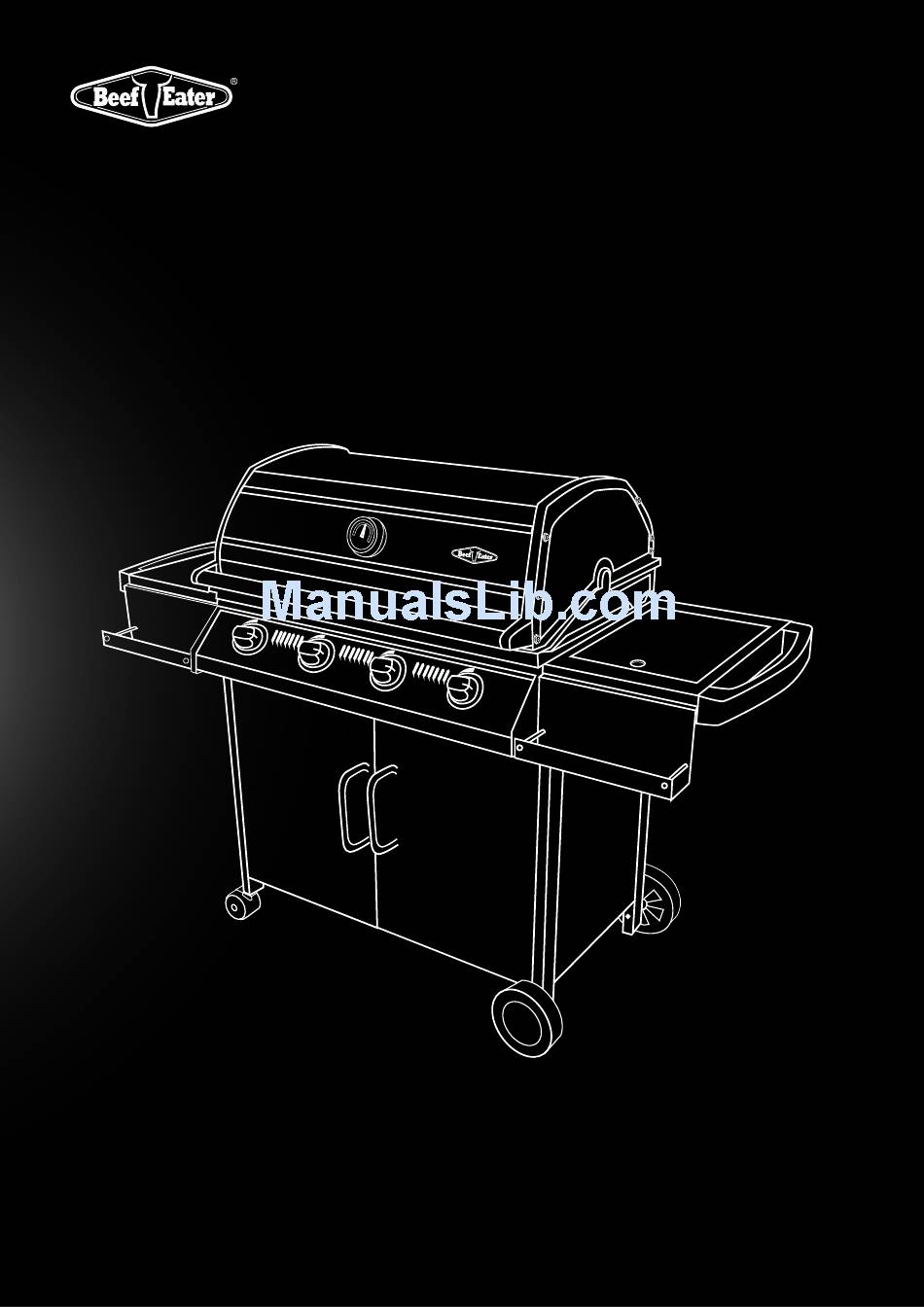

- Page 1 DISCOVERY Assembly and Operating Instructions SERIES i-1000R AUSTRALIA / NEW ZEALAND FOR OUTDOOR USE ONLY...
-
Page 2: Table Of Contents
CONGRATULATIONS CONTENTS Dear customer, Important safety instructions ��������������������������������������������������������3 Locating your barbecue�����������������������������������������������������������������4 Congratulations and thank you for choosing our barbecue� Installation options ������������������������������������������������������������������������5 We are sure you will find it a pleasure to use� Before you use the barbecue, we recommend that you read through the For built-in units only ��������������������������������������������������������������������6 relevant sections of this manual, which provide a description Assembly instructions �������������������������������������������������������������������8... -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS Please read the user manual carefully and store in a handy place for later reference� WARNING WARNING • Do not lean over barbecue when lighting. TIPS & INFORMATION • Do not leave the barbecue unattended when alight. IMPORTANT •... -
Page 4: Locating Your Barbecue
LOCATING YOUR BARBECUE Most importantly, this is an outdoor appliance. Ensure your Partial Enclosures (Australia Only) barbecue is positioned safely away from anything that can This appliance shall only be used in an above ground, open catch fire. air situation with natural ventilation, without stagnant Indoor Use Only: Under no circumstances is this barbecue to areas, where gas leakage and products of combustion are be used indoors�... -
Page 5: Installation Options
INSTALLATION OPTIONS Before proceeding, you need to establish the gas type which your barbecue will run on, and the style of installation you need. Natural Gas or LPG/Propane Before beginning installation or assembly, check that the gas type which the barbecue is designed for is correct for the gas available to you�... -
Page 6: For Built-In Units Only
FOR BUILT-IN UNITS ONLY The Discovery series of barbecues comes in both trolley- Built-in Cavity Dimensions mounted and built-in models. These two pages contain information relating to setting up the built-in model only. General Requirements We recommend that th is installation be done in a masonry structure and carried out by a professional tradespe rson�... - Page 7 FOR BUILT-IN UNITS ONLY The Cylinder Compartment Attach The Brackets Screw the built-in brackets to the side of the barbecue as If the gas for your barbecue is to be supplied by a portable shown� These brackets are designed to rest on the sides of LPG/propane cylinder, you will need to ensure that adequate the brickwork�...
-
Page 8: Assembly Instructions
ASSEMBLY INSTRUCTIONS Before You Start Fit The Vaporizers Note the tools you will need before you begin� The Vaporizers are designed to vapourise fats and juices from your food� The Vaporizers reduce flare-ups and help to Remove any packaging material or protective plastic from add that great barbecue flavour�... - Page 9 ASSEMBLY INSTRUCTIONS Set Up The Grease Tray Assemble the grease tray as shown in the diagram below� Attach the waste tray brackets to the grease tray using the screws, nuts and washers provided� Slide the smaller waste tray into place� You may line the grease tray with a sheet of aluminium foil if you wish�...
-
Page 10: Cabinet Trolley Assembly
CABINET TROLLEY ASSEMBLY Content: INDEX PART QUANTITY DESCRIPTION Top Panel M6 x 40mm Screw Shelf M6 washer Side Burner M6 Fiber Washer RHS Panel and legs M6 x 12mm screw LHS Panel and legs ‘R’ Clips Rear Panel M6 x 25mm Screw Base Panel M6 Nut RHS Door... -
Page 11: Assembly Procedure
ASSEMBLY PROCEDURE Step 1 Remove all loose parts from inside the BBQ, close the hood, and turn it upside-down on a padded surface (BBQ packaging can be used for this purpose)� Step 2 Use: 4 x ‘A’, 4 x ‘B’, 4 x ‘C’ Attach the Sides of the trolley (Parts 4, 5) to the BBQ body�... -
Page 12: Assembly Instructions For Trolley
ASSEMBLY INSTRUCTIONS FOR TROLLEY Step 3 Use: 4 x ‘A’, 4 x ‘B’ Attach the Top panel (Part 1) to the sides: Step 4 Use: 3 x ‘D’, 3 x ‘B’ Attach the Back panel (Part 6) to the Top panel: ASSEMBLY INSTRUCTIONS FOR TROLLEY... - Page 13 ASSEMBLY INSTRUCTIONS FOR TROLLEY Step 5 Use: 4 x ‘A’, 7 x ‘B’, 3 x ‘D’, 1 x ‘H’, 1 x ‘I’ Attach the Base of the trolley (Part 7) to the Sides and Back panel: Step 6 Use: 2 x ‘E’ Fit the Wheels (parts 12, 13) and the castors (parts 11): ASSEMBLY INSTRUCTIONS FOR TROLLEY...
- Page 14 ASSEMBLY INSTRUCTIONS FOR TROLLEY Step 7 Carefully turn the trolley and Barbecue upright Carefully turn the trolley and Barbecue upright Step 8 Use: 2 x ‘A’, 2 x ‘B’ To the Left Hand Side, install the shelf (Part 2)� Insert over the two legs and between the barbecue body and the leg, and secure with the screws�...
- Page 15 ASSEMBLY INSTRUCTIONS FOR TROLLEY Step 10 Ensure all screws are now tightened (but do not over-tighten) Step 11 Assemble both doors (Parts 8, 9) over the hinge brackets: Note: ensure that in each door, both hinge pins are inserted into the brackets simultaneously� It may be required to assemble the handles onto the doors�...
- Page 16 ASSEMBLY INSTRUCTIONS FOR TROLLEY Step 13 Make gas connections and leak test as per the instructions on page 20� ASSEMBLY INSTRUCTIONS FOR TROLLEY...
-
Page 17: Side Burner Assembly
SIDE BURNER ASSEMBLY Check Gas Type Connection to Barbecue & Gas Supply Check that the gas type is correct for your type of gas,� The side burner becomes the first burner of your barbecue� The gas comes into the side burner from the left side, and You will find the gas type label on the underside of your side continues through a hose to the main barbecue unit�... -
Page 18: Operating Instructions
OPERATING INSTRUCTIONS Operating Instructions Care of Your Side Burner 1� Raise the lid� All of the instructions for care of your barbecue apply to your side burner� In particular: 2� Press and turn the control knob slowly (3-4 seconds) anti clockwise to HIGH until a click is heard� Clean your side burner frequently with warm soapy water�... -
Page 19: Connection To Barbecue & Gas Supply
CONNECTION TO BARBECUE & GAS SUPPLY Installation warnings Before You Begin Australia only (applies to all gas types): Where a mobile appliance is to be connected to a fixed gas supply via a flexible Check the gas type label as described in the section titled hose connection, a retraining tether of adequate strength “The Gas Supply”�... - Page 20 CONNECTION TO BARBECUE & GAS SUPPLY Gas connection: Connect the hose to the gas inlet on the Never use a naked flame to check for gas leaks� right hand side of the barbecue� In a small container, mix up a solution of water and Tighten with a spanner (wrench) but do not over-tighten�...
-
Page 21: Using Your Barbecue
USING YOUR BARBECUE Before You Light The Barbecue If The Burner Does Not Light Keep the control knob pushed in and turn the control knob Perform the following checks in a clockwise direction to return to the Off position� Wait •... - Page 22 USING YOUR BARBECUE Controlling The Burners Direct Cooking Method The control knob can now be turned to the desired heat Commonly used for traditional barbecuing� Place food over setting, Low, Medium or High� The control knob does not the lit grill section� Excess flaring may occur so care must need to be pushed in while selecting the heat setting�...
-
Page 23: Getting The Most From Your Barbecue
GETTING THE MOST FROM YOUR BARBECUE You may find it useful to purchase a meat thermometer to Preheating Your Barbecue help take the guess work out of cooking� Like an oven, preheating your barbecue before cooking Meats such as beef, lamb, veal and pork should be about produces better results�... -
Page 24: Cleaning And Storing Your Barbecue
CLEANING AND STORING YOUR BARBECUE Cleaning Vitreous Enamel Surfaces and Barbecue Control Cleaning The Burners Panel • Check main opening, throat and venturi to each Although porcelain enamel will keep its lustrous finish even burner regularly for insect nests (eg� wasp, ants or under adverse conditions, it still needs regular cleaning�... -
Page 25: Service And Maintenance
SERVICE AND MAINTENANCE This appliance should be checked and serviced by an authorised service person every 2 years to ensure the appliance remains in a safe operating condition� (These services are not covered by warranty)� Replacement parts are available from your authorised BeefEater Dealer�... - Page 26 SERVICE AND MAINTENANCE Trouble Shooting Guide PROBLEM CAUSE CHECK Barbecue will not light Ignition system not working Check to see visible spark at starter probe - if no spark is present when control knob is turned then the unit may need to be serviced or replaced�...
-
Page 27: Barbecue Dimensions
BARBECUE DIMENSIONS DIMENSION A 19 3/8” 493mm 26” 660mm 450mm / 18.00" 32 1/8” 816mm 38 1/4” 973mm Gas connection point 45 mm from front of barbecue fascia 245mm (9.65”) 820mm / 32.28" 22mm (.9”) 5mm (0.2”) below bottom rail BARBECUE DIMENSIONS... -
Page 28: Notes
NOTES NOTES NOTES... - Page 29 NOTES NOTES...
- Page 30 NOTES NOTES NOTES...
-
Page 31: Warranty
Warranty FOR SALES IN AUSTRALIA AND NEW ZEALAND APPLIANCE: BEEFEATER DISCOVERY BARBECUE 7. You may not make a claim under this warranty unless the defect claimed is This document sets out the terms and conditions of the product due to faulty or defective parts or workmanship. Electrolux is not liable in the warranties for Electrolux Appliances. - Page 32 For more information on all Beefeater products, or for dimension and installation information, call into your retailer, phone or email our customer care team or visit our website: AUSTRALIA phone: 1300 307 939 fax: 1800 356 669 email: customercare@electrolux.com.au web: beefeaterbbq.com NEW ZEALAND phone: 0800 436 245...
