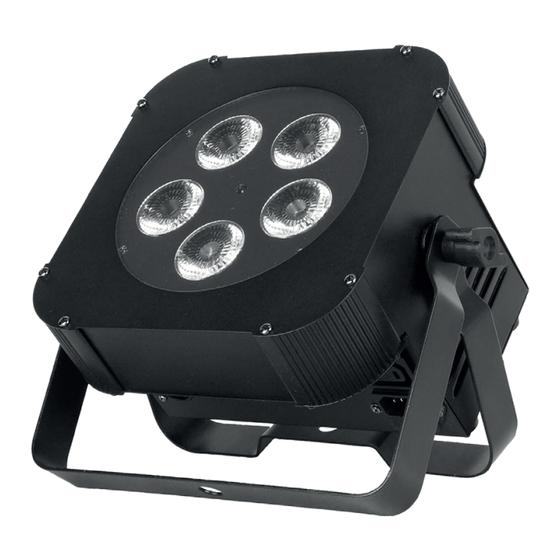

USER MANUAL PAR-10W-5-B/BW Ba ttery Powered Remote and Wireless 4in1 LED PAR (5*10W RGBW 4in1 LED) Please read this manual carefully and proper take care of this manual. - Page 2 Dear customer, First of all thanks far purchasing a SOUNDSATION product. Our mission is to ® satisfy all possible needs of musical instrument, professional audio and light- ing users offering a wide range of products using the latest technologies. We hope you will be satisfied with this item and, if you want to collaborate, we are looking for a feedback from you about the operation of the product and www.
-
Page 3: Table Of Contents
ENGLISH PAR-10W-5-B / BW User manual TABLE OF CONTENTS 1. GETTING STARTED ....................4 1.1 Important Safety Symbols ..................4 1.2 Important Safety Instructions ................4 1.3 Before You Start ....................6 2. PRODUCT OVERVIEW ....................7 2.1. Front and Rear panels ..................7 2.2. Mains Connections ....................8 2.3. -
Page 4: Getting Started
ENGLISH PAR-10W-5-B / BW User manual 1. GETTING STARTED 1.1 Important Safety Symbols The symbol is used to indicate that some hazardous live termi- nals are involved within this apparatus, even under the normal operating conditions, which may be sufficient to constitute the risk of electric shock or death. - Page 5 ENGLISH PAR-10W-5-B / BW User manual 1.2.2. Heat The apparatus should be located away from heat sources such as radiators, stoves or other appliances that produce heat. Fixture may carry high heat, do not aim at objective exceeding 2 minutes. 1.2.3.
-
Page 6: Before You Start
ENGLISH PAR-10W-5-B / BW User manual 1.2.11. Cleaning Clean only with a dry cloth. Do not use any solvents such as benzol or alcohol. 1.2.12. Servicing In case of failure or mis-function occurred, stop using the unit immediately. Never try to repair the unit by yourself. Repairs carried out by unskilled people can lead to damage or malfunction. -
Page 7: Product Overview
ENGLISH PAR-10W-5-B / BW User manual Our products are subject to a process of continual further development. There- fore modifications to the technical features remain subject to change without further notice. 2. PRODUCT OVERVIEW PAR-10W-5-B / BW combine all the benefits of LED technology with the portability of battery power and convenience of wireless DMX connection (BW model only). -
Page 8: Mains Connections
ENGLISH PAR-10W-5-B / BW User manual 1. LED Display and control panel: they allow the user to set up the fixture 2. Battery charge level: The 7-LED bar indicates the remaining battery charge 3. The Red LED flashes during battery charge. Once fully charged, it turns green and stop flashing. -
Page 9: Dmx-512 Connection
ENGLISH PAR-10W-5-B / BW User manual WIRE INTERNATIONAL Brown Live Blue Neutral Yellow/Green Earth The earth must to be connected! Pay attention to safety! Before taking into operation for the first time, the installation has to be ap- proved by an expert. 2.3. - Page 10 ENGLISH PAR-10W-5-B / BW User manual Connect the DMX output of the first fixture in the DMX chain with the DMX input of the next fixture. Always connect one output with the input of the next fixture until all fixtures are connected. A word on termination: DMX is a resilient communication protocol, however errors still occasionally occur.
-
Page 11: Product Specification
ENGLISH PAR-10W-5-B / BW User manual 3. PRODUCT SPECIFICATION f LED source: 5pcs 10W RGBW 4in1 LEDs f Built-in Master-Slave, Sound, Jump, Fade and Auto modes f Built-in various strobe functions f LED display, easy to control f Suitable for disco, club, bar, party and DJ shows f DMX Channel Modes: 2CH, 3CH1, 4CH, 5CH and 7CH f DMX wireless control (only on BW versions) f Voltage: AC100-240V 50/60Hz... -
Page 12: Channel Mode Instruction (Choose A001 Default Address Code)
ENGLISH PAR-10W-5-B / BW User manual to confirm. Main operation as follows: ENTER ENTER DMX Address Code UP & DOWN ENTER R Dimmer G Dimmer B Dimmer W Dimmer Strobe ENTER ENTER LED Static Color Select UP & DOWN ENTER ENTER Jump Mode UP &... - Page 13 ENGLISH PAR-10W-5-B / BW User manual 000-004 Black out 005-080 LED color select (1-63 types) 081-150 Jump Mode 151-220 Fade Mode 221-255 Sound control mode Value Function 000-255 R Dimmer,0-100% 000-255 G Dimmer,0-100% 000-255 B Dimmer,0-100% 000-255 W Dimmer,0-100% Value Function 000-255 LED full dimmer, 0-100%...
-
Page 14: Ir Remote And Wireless Dmx Control
ENGLISH PAR-10W-5-B / BW User manual 6. IR REMOTE AND WIRELESS DMX CONTROL 6.1. IR remote control PAR-10W-5-B and BW use an IR remote to control the light. It operates within 5m from the fixture. Remote control IR Signal Receiver NOTE: Please notice that the remote needs a CR2025 3V Lithium battery (not included). - Page 15 ENGLISH PAR-10W-5-B / BW User manual 6.1.1. Preparing the remote control unit • Pull the battery sheet out from the remote control unit in the direction of the arrow. • Use a commercially available button battery (CR2025). Insert the battery with the + side facing upward, following the illustration inside the case.
- Page 16 ENGLISH PAR-10W-5-B / BW User manual 6.1.2. Remote control functions Switches blackout function on and By pressing repeatedly, increases/ decreases speed during non-static functions (Jump, Fade, Auto, etc.). 6 steps available. By pressing repeatedly, increases/ decreases brightness. 6 steps available. By pressing repeatedly, increases/ decreases strobo effect.
-
Page 17: Wireless Dmx512 Control (Only Bw Versions)
DMX transmitter Antenna DMX Wireless Receiver On/Off switch LED indicator ID setting switch System works with SOUNDSATION WDX-100 wireless DMX transmit- ter (optional). Contact your SOUNDSATION local dealer or visit www. soundsationmusic.com for further information. Working conditions: LED constant lite up: no DMX or wireless signal. -
Page 18: Rechargeable Battery
RED+GREED+BLUE 6.2.2. Establishing Communication 1. Power on DMX512 wireless receiver by using switch 2 on PAR-10W-5-BW 2. Power on SOUNDSATION WDX-100 Wireless Transmitter board (or other compatible transmitters - contact your SOUNDSATION local dealer for further information) 3. Press “Key” button to set same ID value on transmitter and receiver... -
Page 19: Battery Charging Instructions
Replace the pack with the same size and characteristics specified in this manual (22Vcc-4Ah) • Contact SOUNDSATION Customer Support if you have questions Note: If you’re going to power the unit on AC for a long time, it is ad- visable to remove the battery pack, in order to avoid it to be charged beyond its charging time. -
Page 20: Battery Safety And Disposal Instructions
Some batteries may be recycled, and may be accepted for dispos- al at your local recycling center. • Do contact SOUNDSATION Customer Support if you have questions about proper handling of batteries. Batteries may present a risk of fire, explosion, or chemical burn if mistreated. - Page 21 ENGLISH PAR-10W-5-B / BW User manual...
-
Page 22: Warranty And Service
Alternatively you can send the product to SOUNDSATION SERVICE CENTER – Via Enzo Ferrari , 10 – 62017 Porto Recanati - Italy . In order to send a product to ser- vice center you need an RMA number. -
Page 23: Warning
WEEE scheme or your household waste disposal service. This product is imported in EU by FRENEXPORT SPA – Via Enzo Ferrari, 10 - 62017 Porto Recanati - Italy www.soundsa tionmusic.com Soundsation® is a registered trademark of FRENEXPORT SPA - Italy... - Page 24 www.soundsa tionmusic.com Ver. 1.3 - Sept. 2016...
