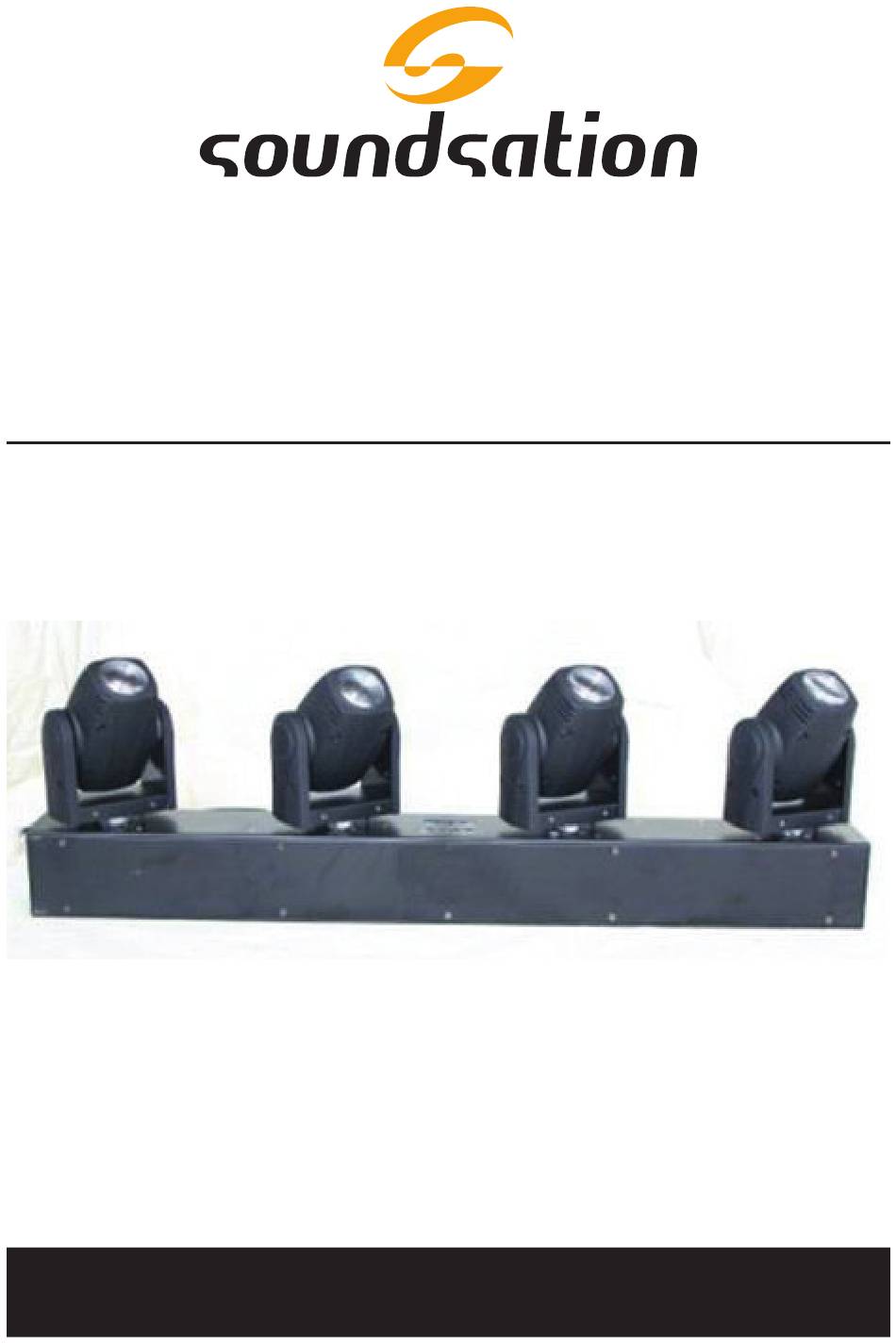

- Page 1 MHL-4h-bar 4 Mini Moving Head (10W CREE RGBW 4in1 LED) USER MANUAL Please read this manual carefully and proper take care of this manual...
- Page 2 ENGLISH Dear customer, First of all thanks far purchasing a SOUNDSATION® product. Our mission is to satisfy all possible needs of musical instrument and professional audio and lighting users offering a wide range of products using the latest technologies. We hope you will be satisfied with this item and, if you want to collaborate, we are looking for a feedback from you about the operation of the product and possible improvements to introduce in www.soundsationmusic.com...
- Page 3 ENGLISH Describes precautions that should be observed to prevent the danger WARNING: of injury or death to the operator. Describes precautions that should be observed to prevent danger of CAUTION: the apparatus. IMPORTANT SAFETY INSTRUCTIONS f Read these instructions f Keep these instructions f Heed all warning f Follow all instructions Water and Moisture...
-
Page 4: Table Of Contents
ENGLISH MBL-5-18W-6IN1 User manual Fuse To prevent the risk of fire and damaging the unit, please use only of the recommended fuse type as described in the manual. Before replacing the fuse, make sure the unit turned off and disconnected from the AC outlet. Electrical Connection Improper electrical wiring may invalidate the product warranty. -
Page 5: Product Specification
ENGLISH MBL-5-18W-6IN1 User manual PRODUCT SPECIFICATION f Light source: 4pcs x 10W RGBW 4in1, CREE LEDs f Built-in master-slave, sound control, and show mode. f LED display, easy to control f Suitable for indoor venues like disco, club, bar, party and DJ moving show f DMX Channel Modes: 6CH, 12CH, 14CH and 27CH f 4 Operation Mode: Sound test, Show mode, DMX and Master/slave mode f PAN/TILT: 540°/270°... -
Page 6: Led Display Function
ENGLISH MBL-5-18W-6IN1 User manual DMX mode,If received the DMX signal, the indicator light flashing Slave mode,if received slave signal, SLAVE the indicator light flashing Led: Master mode, one machine or many MASTER in test, There is a setting for master, the indicator light In the sound active, if have sound SOUND... - Page 7 ENGLISH MBL-5-18W-6IN1 User manual...
-
Page 8: Menu Instruction
ENGLISH MBL-5-18W-6IN1 User manual 3. MENU INSTRUCTION Choose default address code. - DMX512 Address Setting Chose , press ENTER button to confirm. Press UP/DOWN button to initial ad- dress, and press ENTER button to save. Wait 10 seconds or press MENU long time to return to main menu. -
Page 9: How To Operate
ENGLISH MBL-5-18W-6IN1 User manual (light up) or (light off) mode. After chosen, press ENTER button to save. Wait 10seconds or press MENU long time to return to main menu. - LED display inversion Choose , press ENTER button to confirm, then enter the (inversion). -
Page 10: Two Light Mode
ENGLISH MBL-5-18W-6IN1 User manual Connect the lights in series, the first light control the other light auto show and sound control show and so on. It’s very good for the instant show mode. Must set the first light to be master light same time choose (Random show), (show 1) -
Page 11: Channel Modes
ENGLISH MBL-5-18W-6IN1 User manual 5. CHANNEL MODES 5.1. 6CH Mode Channel Value Function 000-255 Full dimmer, with red dimmer 1-100% 000-255 Strobe, slow to fast 000-007 No function 008-022 Show mode 1 023-037 Show mode 2 038-052 Show mode 3 053-067 Show mode 4 068-082... -
Page 12: 12Ch Mode
ENGLISH MBL-5-18W-6IN1 User manual 5.2. 12CH Mode Channel Value Function 000-255 The fist head, Pan position 000-255 The fist head, Tilt position 000-007 Blackout 008-024 025-041 042-057 058-074 075-090 R + G 091-107 R + B 108-123 R + W G + B G + W 124-140... -
Page 13: 27Ch
ENGLISH MBL-5-18W-6IN1 User manual 5.4. 27CH Channel Value Function 000-255 Full dimmer, 0-100% 000-255 Strobe, slow to fast 000-255 The fist head, Pan position 000-255 The fist head, Pan fine 000-255 The fist head, Tilt position 000-255 The fist head, Tilt fine 000-255 The fist head driver speed, slow to fast 000-255... -
Page 14: Warranty And Service
SOUNDSATION shall satisfy the warranty obligations by remedying any material or manufacturing faults free of charge at SOUNDSATION’s discretion either by repair or by exchanging individual parts or the entire appliance. Any defective parts removed from a product during the course of a warranty claim shall become the property of SOUNDSATION. - Page 15 Questo prodotto viene importato nella UE da FRENEXPORT SPA – Via Enzo Ferrari, 10 - 62017 Porto Recanati - Italy www.soundsa tionmusic.com Soundsation® is a registered trademark of FRENEXPORT SPA - Italy Soundsation® è un marchio di fabbrica registrato della FRENEXPORT SPA - Italy...
