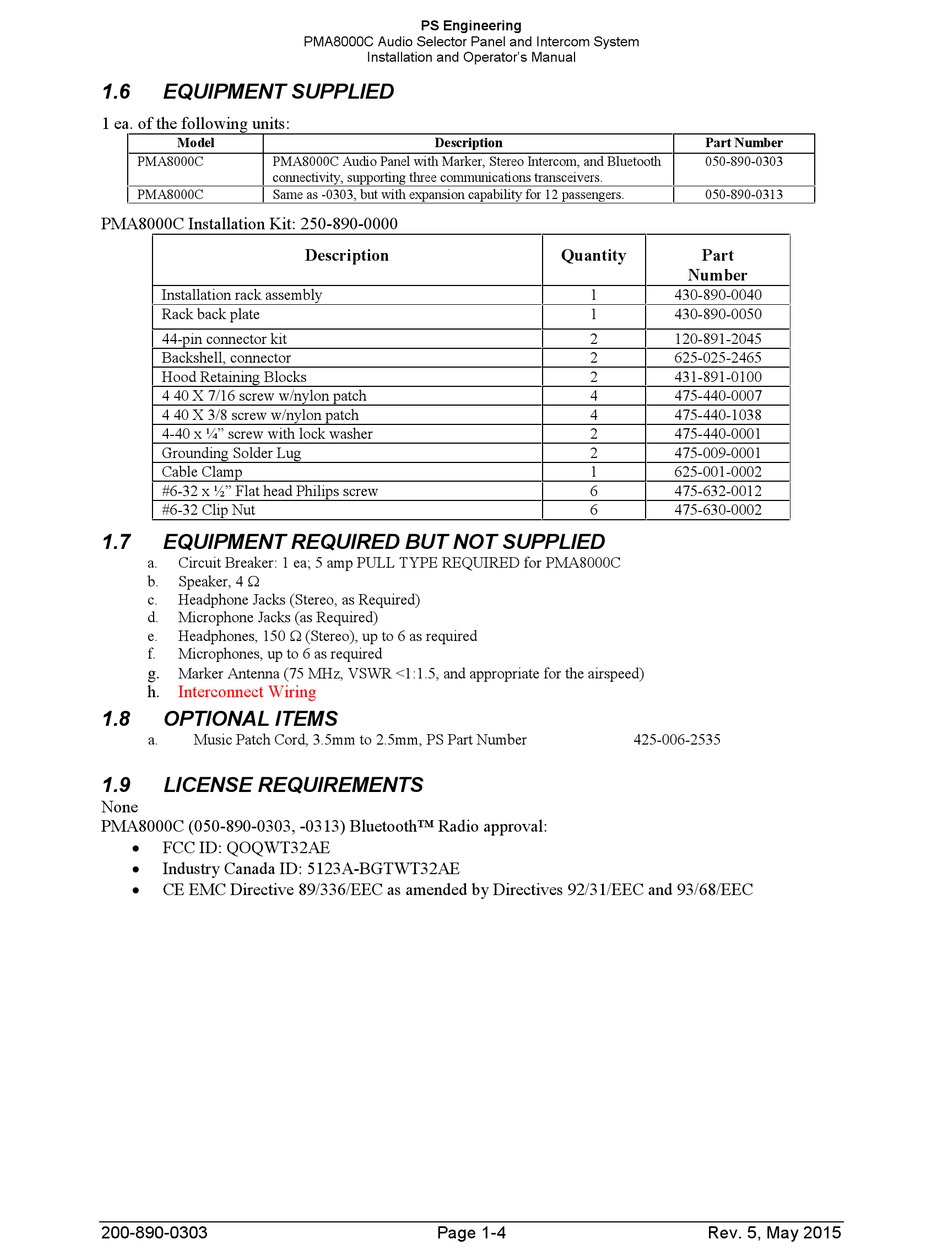

EQUIPMENT SUPPLIED

1 ea. of the following units:
Model
PMA8000C PMA8000C Audio Panel with Marker, Stereo Intercom, and Bluetooth
connectivity, supporting three communications transceivers.
PMA8000C Same as -0303, but with expansion capability for 12 passengers.
PMA8000C Installation Kit: 250-890-0000
Installation rack assembly
Rack back plate
44-pin connector kit
Backshell, connector
Hood Retaining Blocks
4 40 X 7/16 screw w/nylon patch
4 40 X 3/8 screw w/nylon patch
4-40 x ¼" screw with lock washer
Grounding Solder Lug
Cable Clamp
#6-32 x ½" Flat head Philips screw
#6-32 Clip Nut
1.7

EQUIPMENT REQUIRED BUT NOT SUPPLIED

a. Circuit Breaker: 1 ea; 5 amp PULL TYPE REQUIRED for PMA8000C
b. Speaker, 4 
c. Headphone Jacks (Stereo, as Required)
d. Microphone Jacks (as Required)
e. Headphones, 150  (Stereo), up to 6 as required
f. Microphones, up to 6 as required
g.
Marker Antenna (75 MHz, VSWR <1:1.5, and appropriate for the airspeed)
h. Interconnect Wiring
1.8

OPTIONAL ITEMS

a. Music Patch Cord, 3.5mm to 2.5mm, PS Part Number
1.9

LICENSE REQUIREMENTS

None
PMA8000C (050-890-0303, -0313) Bluetooth™ Radio approval:
 FCC ID: QOQWT32AE
 Industry Canada ID: 5123A-BGTWT32AE
 CE EMC Directive 89/336/EEC as amended by Directives 92/31/EEC and 93/68/EEC
200-890-0303
PS Engineering
PMA8000C Audio Selector Panel and Intercom System
Installation and Operator's Manual
Description
Description
Page 1-4
Part Number
050-890-0303
050-890-0313
Quantity Part
Number
1 430-890-0040
1 430-890-0050
2 120-891-2045
2 625-025-2465
2 431-891-0100
4 475-440-0007
4 475-440-1038
2 475-440-0001
2 475-009-0001
1 625-001-0002
6 475-632-0012
6 475-630-0002
425-006-2535
