PS Engineering PMA8000C Operation Manual

Hide thumbs Also See for PMA8000C:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Installation & Operator's Manual

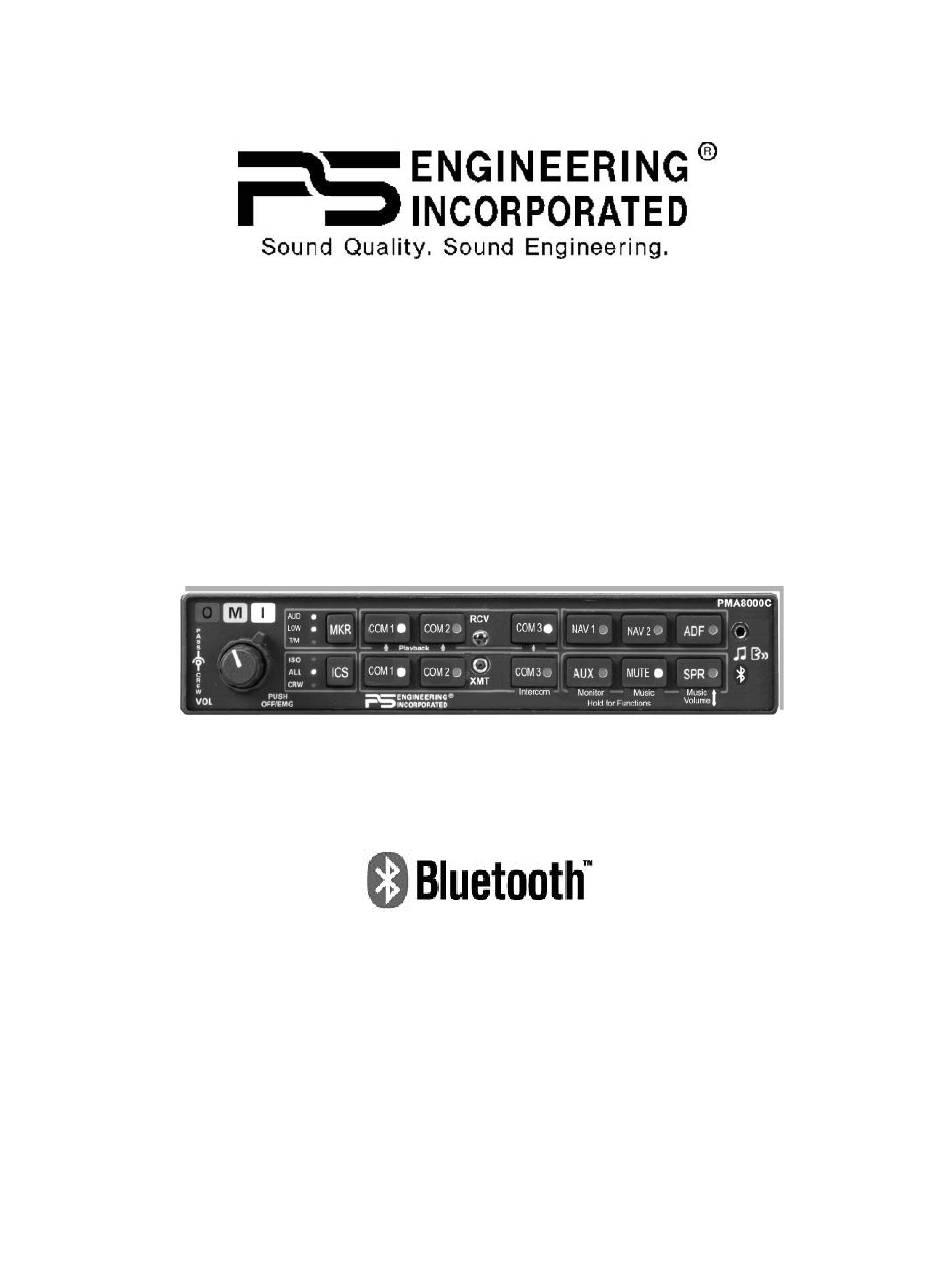

PMA8000C
PMA8000C
Audio Selector Panel
Marker Beacon Receiver
Stereo Intercom System
with Bluetooth™ Connectivity
Operation Manual
Operation Manual
202-890-0303
For units serial number DC1168 and above
Covered under one or more of the following Patent
No. 4,941,187, 5,903,227, 6,160,496, 6,493,450
FAA-Approved: TSO C50c, C35d
EASA-Approved ETSO C50c, 2C35d
Flying never sounded so good ®
May 2015
PMA8000C Pilot Guide
9800 Martel Road
Lenoir City, TN 37772
www.ps-engineering.com
Pilot's Guide
Pilot's Guide
and
and
202-890-0303
Rev. 3, May 2015
Page 1
