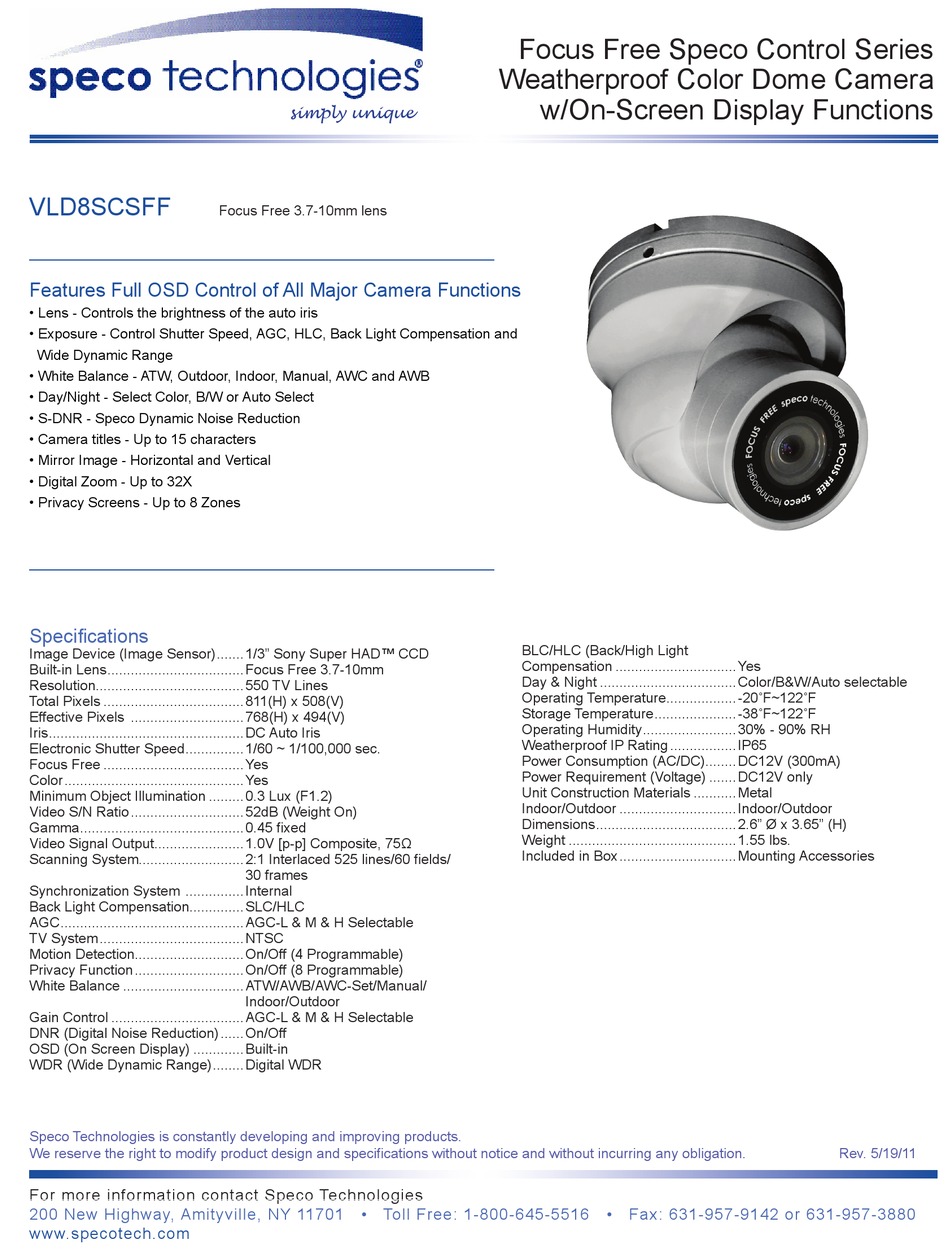

Speco VLD8SCSFF Specifications

VLD8SCSFF
Features Full OSD Control of All Major Camera Functions
• Lens - Controls the brightness of the auto iris
• Exposure - Control Shutter Speed, AGC, HLC, Back Light Compensation and
Wide Dynamic Range
• White Balance - ATW, Outdoor, Indoor, Manual, AWC and AWB
• Day/Night - Select Color, B/W or Auto Select
• S-DNR - Speco Dynamic Noise Reduction
• Camera titles - Up to 15 characters
• Mirror Image - Horizontal and Vertical
• Digital Zoom - Up to 32X
• Privacy Screens - Up to 8 Zones

Specifications

Image Device (Image Sensor) .......1/3" Sony Super HAD™ CCD
Built-in Lens ...................................Focus Free 3.7-10mm
Resolution......................................550 TV Lines
Total Pixels ....................................811(H) x 508(V)
Effective Pixels .............................768(H) x 494(V)
Iris ..................................................DC Auto Iris
Electronic Shutter Speed ...............1/60 ~ 1/100,000 sec.
Focus Free ....................................Yes
Color ..............................................Yes
Minimum Object Illumination .........0.3 Lux (F1.2)
Video S/N Ratio .............................52dB (Weight On)
Gamma ..........................................0.45 fixed
Video Signal Output .......................1.0V [p-p] Composite, 75Ω
Scanning System...........................2:1 Interlaced 525 lines/60 fields/
Synchronization System ...............Internal
Back Light Compensation..............SLC/HLC
AGC ...............................................AGC-L & M & H Selectable
TV System .....................................NTSC
Motion Detection............................On/Off (4 Programmable)
Privacy Function ............................On/Off (8 Programmable)
White Balance ...............................ATW/AWB/AWC-Set/Manual/
Gain Control ..................................AGC-L & M & H Selectable
DNR (Digital Noise Reduction) ......On/Off
OSD (On Screen Display) .............Built-in
WDR (Wide Dynamic Range) ........Digital WDR
Speco Technologies is constantly developing and improving products.
We reserve the right to modify product design and specifications without notice and without incurring any obligation.
For more information contact Speco Technologies
200 New Highway, Amityville, NY 11701
www.specotech.com
simply unique
Focus Free 3.7-10mm lens
30 frames
Indoor/Outdoor
• Toll Free: 1-800-645-5516
Focus Free Speco Control Series
Weatherproof Color Dome Camera
w/On-Screen Display Functions
BLC/HLC (Back/High Light
Compensation ...............................Yes
Day & Night ...................................Color/B&W/Auto selectable
Operating Temperature ..................-20˚F~122˚F
Storage Temperature .....................-38˚F~122˚F
Operating Humidity ........................30% - 90% RH
Weatherproof IP Rating .................IP65
Power Consumption (AC/DC)........DC12V (300mA)
Power Requirement (Voltage) .......DC12V only
Unit Construction Materials ...........Metal
Indoor/Outdoor ..............................Indoor/Outdoor
Dimensions ....................................2.6" Ø x 3.65" (H)
Weight ...........................................1.55 lbs.
Included in Box ..............................Mounting Accessories
• Fax: 631-957-9142 or 631-957-3880
Rev. 5/19/11
