7.04 Front Panel Assembly Removal
CAUTION
!
Read and follow safety information in Section 6.02 before proceeding with disassembly.

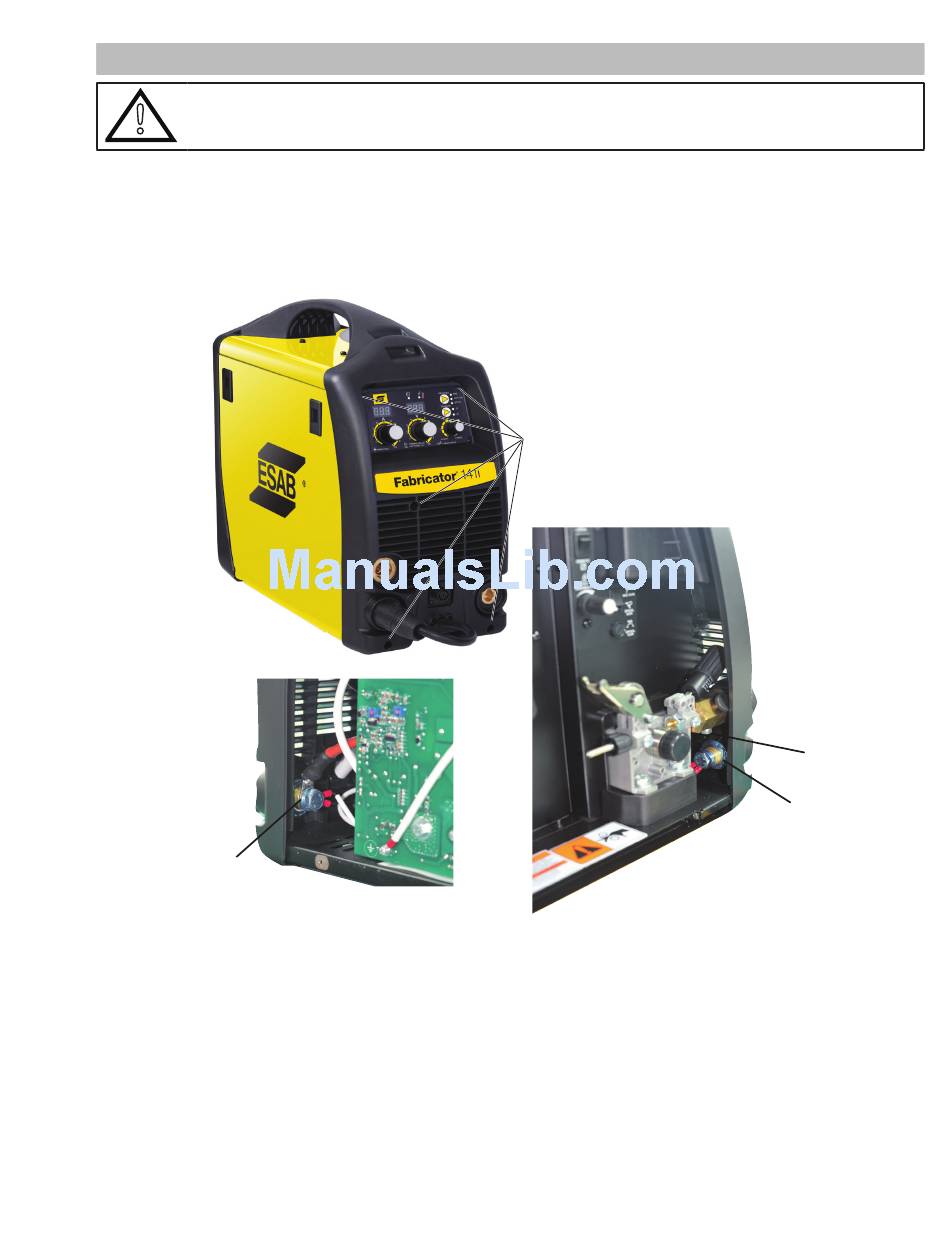

1. Remove the five screws on front panel.
2 Unscrew Negative output terminal bolts.
3. Unscrew torch cable terminal bolts.
4. Unscrew output terminal bolts.
2
A-12930
Manual 0-5448
1
7-5
ESAB FABRICATOR 141i
3
4
DISASSEMBLY PROCEDURE
