(b) PROFIBUS protocol communication
The MA-SP PROFIBUS option supports the PROFIBUS protocol. The
MA-SP option can be placed at the control board. An independent 24V DC is
needed for all MA SP option.
7200 MA
7200 MA
7200 MA
Note : 1. Code No. : 4H300D0290009
2. An MA-SP option card will consume about 2.4W(=24.0V*0.1A). Choose
the proper DC power supply to meet your system capacity based upon the
station number.
3. A maximum of 31 PROFIBUS-DP stations (nodes) may be contained
within a single network segment. If the drive is at the end of the network it
must have 220Ω between terminals (S-, S+)
4. For more details, please refer to the manual "7200MA PROFIBUS-DP
Communication Application manual".
M1
S(+)
P
S(-)
M2
S(+)
P
S(-)
M31
S(+)
P
S(-)
DC24V

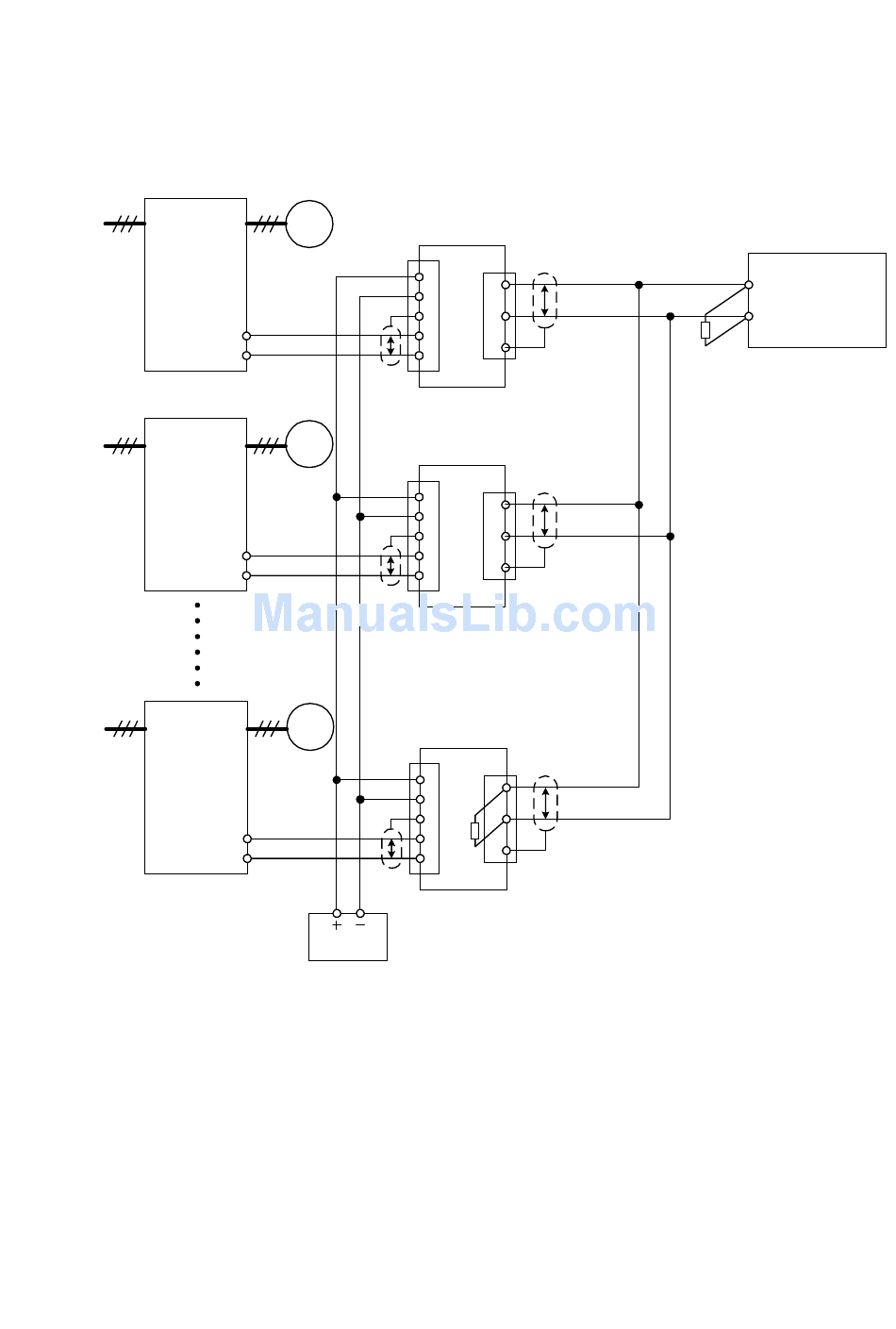

Fig. 52 Wiring for PROFIBUS protocol communication
MA-SP
TB1
TB2
1
1
2
3 2
4
3
5
MA-SP
TB1
TB2
1
1
2
3 2
4
3
5
MA-SP
TB1
TB2
1
1
2
3 2
4
3
220Ω
5
114
P
220Ω
P
P
PROFIBUS-DP
CONTROLLER
