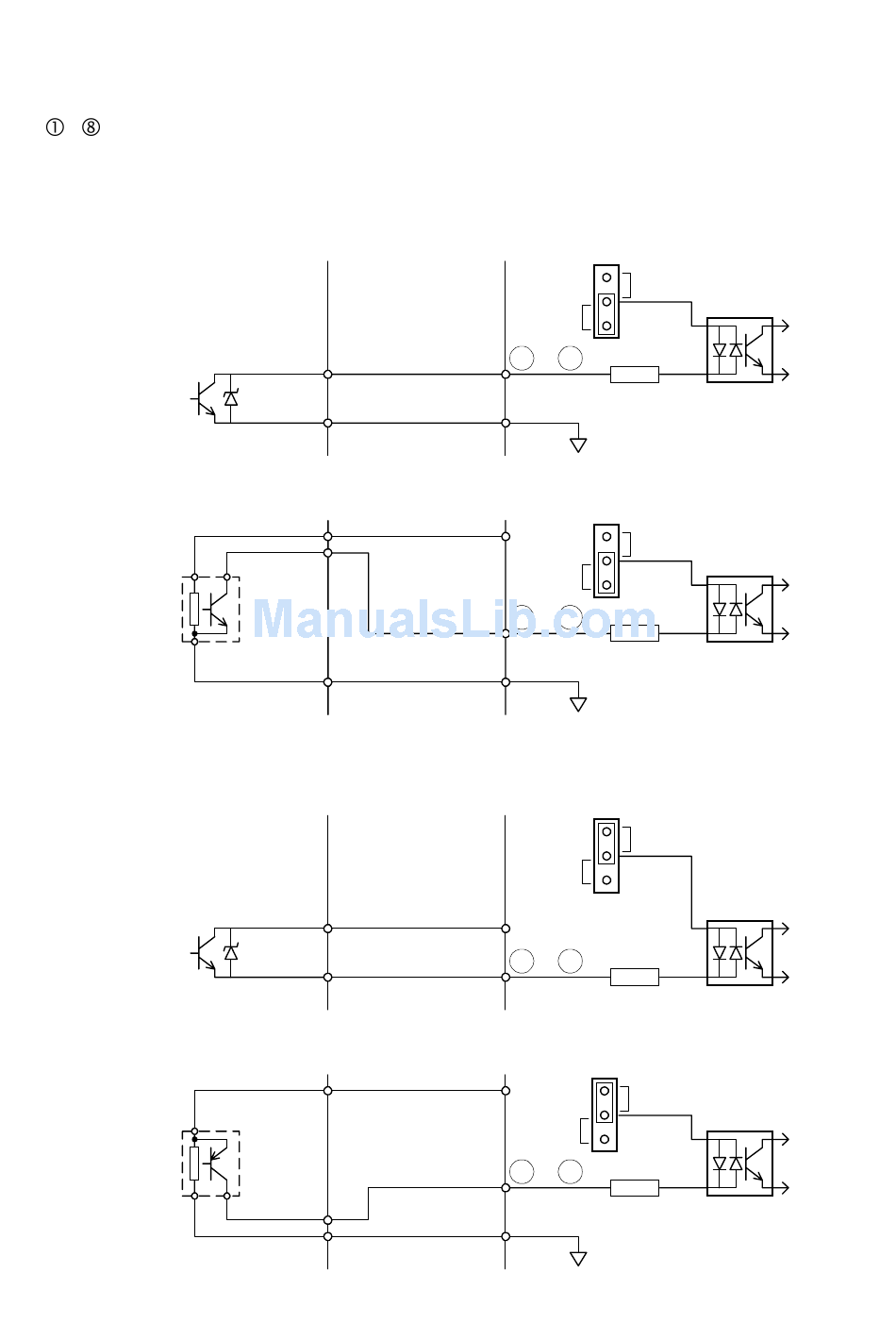

E. SINK/SOURCE Typical Connection Diagram
•The UL/CUL standard type control board (Code No. : 4P101C0060002) terminal
~ can be set as sink or source type input interface, the typical connection
examples shown as below.
(a) SINK type input interface : The short pin of TP2 set to SINK position.
•Transistor (Open-collector) used for operation signal
•NPN sensor (sink) used for operation signal
(b) SOURCE type input interface : The short pin of TP2 set to SINK position.
•Transistor (Open-collector) used for operation signal
•PNP sensor (source) used for operation signal
NPN
PNP
TP2
SINK
1 ∼ 8
24VG
TP2
24V
SINK
1 ∼ 8
24VG
TP2
SINK
24V
∼
1 8
TP2
24V
SINK
1 ∼ 8
24VG
115
SOURCE
SOURCE
SOURCE
