Page 1 GV-IP Camera Firmware Manual Before attempting to connect or operate this product, please read these instructions carefully and save this manual for future use. ICH264ABV102-A...
Page 2 GeoVision. Every effort has been made to ensure that the information in this manual is accurate. GeoVision, Inc. makes no expressed or implied warranty of any kind and assumes no responsibility for errors or omissions. No liability is assumed for incidental or consequential damages arising from the use of the information or products contained herein.
Page 3: Table Of Contents
Contents Preface……… ..............vi Naming and Definition............ xv Note for Connecting to GV-System / GV-VMS .... xvi Note for Recording ............xvii Note for GV-BX2600............. xviii Note for GV-EVD5100 / EFD5101 ........xix Chapter 1 Introduction .............1 1.1 System Requirement ..............1 Chapter 2 Getting Started ..........3 2.1 Accessing the Live View.............3 2.1.1 Checking the Dynamic IP Address ........
Page 4 3.2.7 Video and Audio Configuration ..........43 3.2.8 Remote Configuration ............45 3.2.9 Camera Name Display ............45 3.2.10 Image Enhancement ............45 3.2.11 Visual PTZ ................ 46 3.2.12 Digital PTZ ................ 49 3.2.13 I/O Control ................ 51 3.2.14 Visual Automation ............. 52 3.2.15 Network Status..............
Page 5 4.4.5 Backup Center ..............119 4.4.6 Video Gateway / Recording Server........122 4.4.7 ViewLog Server..............124 4.4.8 RTSP/ONVIF ..............125 4.4.9 Speaker ................127 4.5 Monitoring ................128 4.5.1 Monitoring Settings for GV-EBL2101 ......... 131 4.6 Recording Schedule ...............132 4.6.1 Recording Schedule Settings ..........132 4.6.2 I/O Monitoring Settings............
Page 6 5.2.3 Access to the Recorded Files through FTP Server..... 174 5.2.4 Playback of Daylight Saving Time Events......175 Chapter 6 Advanced Applications ......177 6.1 Upgrading System Firmware..........177 6.1.1 Using the Web Configuration Interface ......179 6.1.2 Using the IP Device Utility ..........180 6.2 Backing Up and Restoring Settings........183 6.3 Changing Password..............185 6.4 Verifying Watermark ...............188...
Page 7 Chapter 9 Smart Device Connection......226 Appendix.................227 A. Settings for Internet Explorer 8 ..........227 B. Resolution and Frame Rate .............228 C. Support Lists ................239 D. RTSP Protocol Command ............243 E. Supported UMTS Protocol (3G Modem)........244 F. Dual Stream Support List............245 G. The CGI Command..............248 G.
Page 8: Preface
Preface Welcome to the GV-IPCAM User’s Manual. The GV-IPCAM has a series of models designed to meet different needs. This Manual is designed for the following models and firmware versions: Note: To upgrade the camera firmware from V2.07 or earlier to the latest version, back up the files in the camera’s storage device first before the upgrade and it is required to re-format the memory card after the upgrade.
Page 9 Firmware Model Model Number Version V3.0 GV-BX2400-1F ~ 2F Fixed Lens GV-BX2400-8F V1.0 GV-BX2600 Varifocal Lens GV-BX1500-8F Box Camera V3.06 GV-BX2500-8F Fixed Lens GV-BX3400-8F V3.00 GV-BX5300-8F GV-BX1500-3V GV-BX2500-3V P-Iris V3.03 GV-BX3400-3V GV-BX5300-6V V1.02 GV-BX12201 Varifocal Lens...
Page 10 Firmware Model Model Number Version GV-BX2400-E V3.0 Varifocal Lens GV-BX5300-E Motorized V3.06 GV-BX1500-E IR Arctic Box Varifocal Camera GV-BX3400-E V3.03 Lens, P-Iris V3.06 GV-BX2510-E Motorized Varifocal Lens GV-BX5310-E V3.03 GV-EBX1100 Series Target Box Fixed Lens V1.04 Camera GV-EBX2100 Series GV-UBX1301 Series Ultra Box V3.0 GV-UBX2301 Series...
Page 11 Firmware Model Model Number Version GV-MDR220 GV-MDR320 GV-MDR520 V3.0 Mini Fixed Fixed Lens Rugged Dome GV-MDR3400 Series GV-MDR5300 Series GV-MDR1500 Series V3.06 GV-EFD2101 Target Fixed Varifocal V1.01 GV-EFD3101 Dome Lens, P-Iris GV-EFD5101 GV-EFD1100 Series Target Mini V1.04 Fixed Lens Fixed Dome GV-EFD2100 Series Target Mini GV-EDR1100 Series...
Page 12 Firmware Model Model Number Version GV-BL1500 V3.0 GV-BL2400 GV-BL3400 Varifocal Lens V3.06 GV-BL2500 GV-BL1210 Motorized Varifocal GV-BL3410 V3.03 Lens GV-BL5310 GV-BL1501 V3.06 Varifocal Lens, GV-BL2501 P-Iris GV-BL3401 V3.01 Bullet Camera GV-BL1511 V3.06 GV-BL2511 Motorized Varifocal Lens, P-Iris GV-BL3411 V3.03 GV-BL5311 Motorized Varifocal V3.06 GV-BL2511-E...
Page 13 Firmware Model Model Number Version GV-EBL1100-1F GV-EBL1100-2F Target Bullet Fixed Lens V1.04 Camera GV-EBL2100-1F GV-EBL2100-2F Target Bullet GV-EBL2101 Varifocal Lens V1.04 Camera GV-UBL1211 GV-UBL2411 V3.03 Motorized GV-UBL3411 Varifocal Lens GV-UBL1511 Ultra Bullet Coming Camera GV-UBL2511 GV-UBL1301 Series GV-UBL2401 Series Fixed Lens V3.0 GV-UBL3401 Series...
Page 14 Firmware Model Model Number Version GV-VD120D (IK10+, Transparent Cover) GV-VD121D (IK10+, Smoked Cover) GV-VD122D (IK7, Transparent Cover) GV-VD123D (IK7, Smoked Cover) GV-VD220D (IK10+, Transparent Cover) GV-VD221D (IK10+, Smoked Cover) GV-VD222D Vandal Proof (IK7, Transparent Cover) Varifocal Lens V3.0 IP Dome GV-VD223D (IK7, Smoked Cover) GV-VD320D...
Page 15 Firmware Model Model Number Version GV-VD1530 Varifocal Lens, GV-VD2430 high power IR V3.0 GV-VD2530 LEDs GV-VD3430 GV-VD1540 Vandal Proof Motorized GV-VD2440 IP Dome Varifocal Lens, GV-VD2540 V3.0 high power IR GV-VD3440 LEDs GV-VD5340 GV-VD3700 Varifocal Lens, (H.265) V1.0 P-Iris GV-VD5700 (H.265) Motorized IR Arctic...
Page 16 Firmware Model Model Number Version GV-CA120 Advanced GV-CA220 Cube V3.0 Fixed Lens GV-CAW120 Camera GV-CAW220 GV-CB120 Cube Camera Fixed Lens V2.14 GV-CB220 GV-FD1500 V3.06 Varifocal GV-FD2500 Lens Fixed IP GV-FD3400 V3.03 Dome GV-FD3410 V3.03 Motorized GV-FD1510 Varifocal Lens V3.06 GV-FD2510 Pinhole GV-UNP2500 Fixed Lens...
Page 17: Naming And Definition
Naming and Definition GeoVision Analog and Digital Video Recording Software. The GV-System also refers to GV-Multicam GV-System System, GV-NVR, GV-DVR and GV-Hybrid DVR at the same time. GV-VMS GeoVision Video Management System for IP cameras.
Page 18: Note For Connecting To Gv-System / Gv-Vms
Note for Connecting to GV-System / GV-VMS The GV-IPCAM is designed to work with GV-System / GV-VMS, a hybrid or digital video management system. Note the following when the camera is connected to GV-System / GV-VMS: By default, the images are recorded to the memory card inserted in the GV-IPCAM (except GV-IR Arctic Box Camera and Target Series, which are not equipped with a memory card slot).
Page 19: Note For Recording
Note for Recording By default, the images are recorded to the memory card inserted in the GV-IP Camera (except GV-IR Arctic Box Camera and Target Series, which are not equipped with a memory card slot). Make sure the Write recording data into local storage option (see 3.1.1 Video Settings) is enabled.
Page 20: Note For Gv-Bx2600
For the users of Microsoft Internet Explorer, version 11 or later is required to perform the operations through Web browser. Recording When GV-BX2600 uses Micro SD card or USB HDD for recording, the camera must not have more than one connection to GeoVision or third- party software. xviii...
Page 21: Note For Gv-Evd5100 / Efd5101
Note for GV-EVD5100 / EFD5101 When the resolution is set at 2592 x 1944: If the camera is switched to single stream (while stream two is deselected) and Noise Reduction is disabled, the frame rate can reach up to 30 FPS. If the camera is switched to dual streams and Noise Reduction is disabled, the frame rate can reach up to 25 FPS.
Page 23: Chapter 1 Introduction
Chapter 1 Introduction The GV-IPCAM series offers a comprehensive range of IP cameras for IP surveillance in various environmental conditions. 1.1 System Requirement To perform the cameras’ operations through Web browser, ensure your PC is in good network connection, and use one of the following web browsers: •...
Page 24 To access GV-EFD3101 / 5101 and GV-EVD3100 / 5100 images, the PC spec should be met: Intel Core i5-4670, 3.40 GHz Memory DDR3 4 GB RAM Intel HD Graphics 4600 (Versions of driver On Board Graphics from year 2014 or later required)
Page 25: Chapter 2 Getting Started
Getting Started Chapter 2 Getting Started This section provides the initial and basic configurations of the GV- IPCAM. 2.1 Accessing the Live View When the camera is connected to a network with a DHCP server, it will be automatically assigned with a dynamic IP address. See 2.1.1 Checking the Dynamic IP Address to look up this IP address.
Page 26: Checking The Dynamic Ip Address
2.1.1 Checking the Dynamic IP Address Follow the steps below to look up the IP address and access the Web interface. Install the GV-IP Device Utility program included on the Software DVD. Note: The PC installed with GV-IP Device Utility must be under the same LAN with the camera you wish to configure.
Page 27 Getting Started Find the camera with its Mac Address, click on its IP address and select Web Page. Figure 2-2 The login page appears. Figure 2-3 Type the default ID and password admin and click Apply to log in.
Page 28: Configuring The Ip Address
2.1.2 Configuring the IP Address Follow the steps below to configure the IP address. Open your web browser, and type the default IP address http://192.168.0.10. In both Login and Password fields, type the default value admin. Click Apply. In the left menu, select Network and then LAN to begin the network settings.
Page 29 Getting Started IMPORTANT: If Dynamic IP Address or PPPoE is enabled, you need to know which IP address the camera will get from DHCP server or ISP to log in. If your camera is installed in the LAN, use the GV-IP Device Utility to look up its current dynamic IP address.
Page 30: Configuring The Wireless Connection
2.1.3 Configuring the Wireless Connection You may create wireless connection to the Internet for: • Box Camera: GV-BX1200 series / 1300 series / 1500 series / 2400 series / 2500 series / 3400 series / 5300 series • Wireless Advanced Cube Camera: GV-CAW120/220 •...
Page 31 Getting Started B. Type the Network Name (SSID) or click the Access Point Survey button to search and select for the available Access Points/wireless stations. C. Select Ad-Hoc or Infrastructure for the Network type. D. Select the Authentication Type using the drop-down list. You can also obtain this information by clicking the Access Point Survey button.
Page 32 Enable wireless LAN. A. On the Web interface, select Network and LAN. This page appears. Figure 2-6 B. Select Wireless for Optional Network Type. C. To use a dynamic IP address assigned by the DHCP server, select Dynamic IP address. To use a fixed IP address, select Static IP address and type the IP address information.
Page 33 Getting Started Click Apply. The Camera will start creating a wireless connection to the access point. Note: For GV-CAW120/220, the LAN LED turns blue when the connection is established. Unplug the Ethernet cable.
Page 34: Adjusting Image Clarity
2.2 Adjusting Image Clarity Note the procedures described in this section only apply to the cameras that allow manual focus adjustment. To adjust focus of a PTZ camera, refer to Focus Adjustment in corresponding the Hardware Manual; for Cube Camera and Advanced Cube Camera, refer to Camera Adjustment in 3.2.2 The Control Panel on the Live View Window.
Page 35 Getting Started Select Focus Value. The Login dialog box appears. Figure 2-8 Type the user name and password of the camera selected. The default is admin for both user name and password. This window appears. Figure 2-9...
Page 36 For IK10+ models (GV-VD120D / 121D / 220D / 221D / 320D / 321D / 1500 / 2400 / 2500 / 3400 / 1530 / 2430 / 2530 / 3430), hold the supplied Focus Adjustment Cap over the camera view. For details, see 2.2.1 Using Focus Adjustment Cap for details.
Page 37 Getting Started Note: Do not over tighten the screws. The screws only need to be as tight as your fingers can get them to be. Do not bother using any tool to get them tighter. Doing so can damage the structure of lens.
Page 38: Using Focus Adjustment Cap
2.2.1 Using Focus Adjustment Cap The Focus Adjustment Cap is only supplied for IK10+ models (GV- VD120D / 121D / 220D / 221D / 320D / 321D / 1500 / 2400 / 2500 / 3400 / 1530 / 2430 / 2530 / 3430). Hold the Focus Adjustment Cap on top of the camera view and keep it close to the...
Page 39: Locations Of Adjustment Screws
Getting Started 2.2.2 Locations of Adjustment Screws Models Adjustment Screws Zoom Screw Focus Screw Box Camera Zoom Screw Focus Screw Bullet Camera Focus Screw Zoom Screw Vandal Proof IP Dome Focus Screw Zoom Screw Fixed IP Dome...
Page 40 Models Adjustment Screws Focus Ring GV-MFD1501 / 2401 / 3401 / 5301 Focus Ring Lens Screw GV-MDR220 / 320 GV-MDR1500 / 3400 / Focus Ring 5300 GV-VD3700 / 5700...
Page 41 Getting Started Note: The adjustment screws of Box Camera may vary for different models. To focus GV-MFD and GV-MDR, loosen the lens screw first and slowly adjust the focus ring. Some models may need a T6 screw driver to loosen the camera lens. If you have a problem of obtaining this type of screw driver, please contact our overseas offices for further assistance.
Page 42: Configuring The Basics
2.3 Configuring the Basics Once the camera is properly installed, the following important features can be configured using the browser-based configuration page and are discussed in the following sections in this manual: • Date and time adjustment: see 4.8.1 Date & Time Settings. •...
Page 43: Chapter 3 Accessing The Camera
Accessing the Camera Chapter 3 Accessing the Camera Two types of users are allowed to log on to the GV-IPCAM: Administrator and Guest. The Administrator has full access to all system configurations, while the Guest can only access the live view (except the Camera Adjustment settings) and network status.
Page 44 Click Apply. A video image, similar to the example on Figure 3-2, is now displayed in your browser. Note: To enable the updating of images in Internet Explorer, you must set your browser to allow ActiveX Controls and perform a once-only installation of GeoVision’s ActiveX component onto your computer.
Page 45: Functions Featured On The Main Page
Accessing the Camera 3.2 Functions Featured on the Main Page This section introduces the features of the Live View window and Network Status on the main page. The two features are accessible by both Administrator and Guest. Main Page of Guest Mode ▼...
Page 46: The Live View Window
3.2.1 The Live View Window Internet Explorer When accessing the live view using Internet Explorer, the following window appears. Figure 3-3A...
Page 47 Accessing the Camera 12 13 Figure 3-3B...
Page 48 No. Name Function 1 Play Plays live video. 2 Stop Stops playing video. Broadcasts to the surveillance site from a remote PC. Note this function is not available for Ultra Bullet Camera and Target Series. For Cube Camera and Advanced Cube 3 Microphone Camera, you can click the Push to talk button (from the pop-up menu) for the camera to...
Page 49 Accessing the Camera No. Name Function Displays the camera information, video settings, audio data rate, I/O device status, images captured upon alarm, and GPS Control Panel location of the camera. Also allows you to adjust image quality and install the program from the hard drive.
Page 50 No. Name Function Click to sound the alarm and/or adjust its volume. To sound the alarm upon motion or tampering 13 Alarm Speaker events, see 4.3.9 Speaker for setup steps. Note this function is only available for Advanced Cube Camera.
Page 51 Accessing the Camera Non-IE Browsers When accessing the live view using Google Chrome, Firefox or Safari, this window appears. Note the following functions are not supported on non-IE browsers: Motion Detection, Tampering Alarm, Visual Automation, Text Overlay and Two-Way Audio. Figure 3-4 Note: Non-IE browsers do not support OCX plugin, so the smoothness of the live view is obstructed.
Page 52: The Control Panel Of The Live View Window
3.2.2 The Control Panel of the Live View Window To open the control panel of the Live View window, click the arrow button on top of the window. You can access the following functions by using the right and left arrow buttons on the control panel. Click the right and left arrow buttons to change Click the arrow button to...
Page 53 Accessing the Camera [Information] Displays the version of the camera, time of the local computer, time of the camera (host time), the number of users logging in the camera and the OCX registration path. [Video] Displays the current video codec, resolution and data rate. [Audio] Displays the audio data rates when the microphone and speaker devices are enabled.
Page 54 images. Check the power utility to determine which frequency is used. Image Orientation: Changes the image orientation on the Live View window. Slowest Shutter Speed: Shutter speed controls the amount of the lights enters the image sensor and directly impacts the quality of image presentation.
Page 55 Accessing the Camera scene, select Auto (Weak) to bring out less detail in the dark area and at the same time keep the bright areas from overexposure, or select Auto (Normal) for a balanced effect. Select Close to disable the function. Defog: Select Auto to automatically enhance the visibility of images.
Page 56 Metering: Controls the camera’s exposure. Select Normal for the camera to adjust exposure based on the full live view. Select Regional Metering for the camera to adjust exposure of specified zones. Draw directly on the live view and a block marked with “AE (automatic exposure)”...
Page 57 Accessing the Camera Figure 3-6B Figure 3-6C Figure 3-6A...
Page 58 Note: For GV-PTZ010D, Brightness, Contrast, Saturation, Sharpness, D/N, Slowest Shutter Speed, Wide Dynamic Range and Defog are not available. For GV-BX2600, Backlight Compensation, Wide Dynamic Range, Defog, Low Lux Enhancement, Denoise, Metering are not available. The WDR setting for GV-BX2600 is in Video Setting page (see Figure 4-2A, 4.1.1 Video Settings).
Page 59: Snapshot Of Live Video
Accessing the Camera 3.2.3 Snapshot of Live Video To take a snapshot of live video, follow these steps: Click the Snapshot button (No. 5, Figure 3-3). The Save As dialog box appears. Specify Save in, type the File name, and select JPEG or BMP as Save as Type.
Page 60: Picture-In-Picture And Picture-And-Picture View
3.2.5 Picture-in-Picture and Picture-and-Picture View The full screen mode provides two types of close-up views: Picture-in- Picture (PIP) and Picture-and Picture (PAP). The two views are useful to provide clear and detailed images of the surveillance area. Picture-in-Picture View With the Picture in Picture (PIP) view, you can crop the video to get a close-up view or zoom in on the video.
Page 61 Accessing the Camera Picture-and-Picture View With the Picture and Picture (PAP) view, you can create a split video effect with multiple close-up views on the image. A total of 7 close-up views can be defined. Figure 3-8 Right-click the live view and select PAP. A row of three inset windows appears at the bottom.
Page 62 Set Color of Focus Area: Changes the color of the box frames. To delete a navigation box, right-click the desired box, select Focus Area of PAP Mode and click Delete. To exit the PAP view, right-click the image and click PAP again.
Page 63: Alarm Notification
Accessing the Camera 3.2.6 Alarm Notification After input triggers and motion detection, you can be alerted by a pop-up live video and view up to four captured images. Pop-up live Captured video images video Figure 3-9 To configure this function, click the Show System Menu button (No. 9, Figure 3-3), and select Alarm Notify.
Page 64 I/O Alarm Notify: Once the input device is triggered, the captured images are displayed on the control panel of the Live View window. For this function to work, the Administrator needs to install the input device properly. See 4.2.1 Input Setting. Alert Sound: Activates the computer alarm on motion and input- triggered detection.
Page 65: Video And Audio Configuration
Accessing the Camera 3.2.7 Video and Audio Configuration You can enable the microphone and speaker for two-way audio communication and adjust the audio volume. To change audio configuration, click the Show System Menu button (No. 9, Figure 3-3), and select Video and Audio Configuration. Camera: Sets the number of frames to keep in live view buffer.
Page 66 Audio Configure: You can enable the microphone and speaker, and adjust the audio volume Figure 3-12...
Page 67: Remote Configuration
Accessing the Camera 3.2.8 Remote Configuration You can upgrade firmware over the network. Click the Show System Menu button (No. 9, Figure 3-3), and select Remote Config. The Remote Config dialog box will appear. [Firmware Upgrade] In this tab, you can upgrade the firmware over the Internet.
Page 68: Visual Ptz
3.2.11 Visual PTZ Note this feature is only available in PTZ Camera and PT Camera. The Visual PTZ provides two types of PTZ control panels on live images for easy and direct PTZ operation. Activating Visual PTZ Click the PTZ Control button (No.
Page 69 Accessing the Camera Figure 3-15 The Visual PTZ Panel provides the following features: Name Description Shortens the apparent distance between the Zoom In camera and the view. Lengthens the apparent distance between the Zoom Out camera and the view. Focus In Adjusts the sharpness of the camera view.
Page 70 Setting Visual PTZ Panel Click the .button on the top left corner and select Visual PTZ, the following options will appear. PTZ Control Type: Two types of visual PTZ control panels are available. Type 1: Appears only when a movement of the cursor is detected and disappears when it is static.
Page 71: Digital Ptz
Accessing the Camera 3.2.12 Digital PTZ Note this function is only supported by GV-IPCAM H.264 firmware V2.06 and the GV-IPCAM H.265. This function allows non-PTZ cameras to simulate PTZ movements on live view. Right-click the live view and select Digital PTZ. The live view is labeled with “DPTZ”...
Page 72 To pan and tilt the view, zoom the image first and then click and hold the arrow on the image. The arrow appears when you place the cursor in one of the eight directions, i.e. up, down, left, right, left up, left down, right up and right down.
Page 73: I/O Control
Accessing the Camera 3.2.13 I/O Control Note this function is only supported by cameras with I/O function. The I/O Control window provides a real-time graphic display of camera status, I/O status, and alarm events. Additionally, you can remotely force output to be triggered. Figure 3-19 •...
Page 74: Visual Automation
3.2.14 Visual Automation Note this function is only supported by cameras with I/O function. The Visual Automation allows you to change the current state of the electronic device by simply clicking on its image, e.g. turning the light ON. This feature is only available when the Visual Automation is set ahead by the Administrator.
Page 75: Network Status
Accessing the Camera 3.2.15 Network Status To view the network status, in the left menu, click Network and select Status. Figure 3-21...
Page 76: Chapter 4 Administrator Mode
Chapter 4 Administrator Mode The Administrator can access the system configuration through the network. Eight categories of configurations are involved in the system configuration: Video and Motion, I/O Control or Digital I/O and PTZ, Events and Alerts, Monitoring, Recording Schedule, Remote ViewLog, Network and Management.
Page 77: Backup Center
Administrator Mode List of Menu Options Find the topic of interest by referring to the corresponding section listed below. The available options may vary among camera models. 4.1.1 Video Settings 4.1.2 Motion Detection 4.1.3 Privacy Mask 4.1 Video and Motion 4.1.4 Text Overlay 4.1.5 Tampering Alarm 4.1.6 Visual Automation...
Page 78 4.8.1 LAN 4.8.2 Wireless-Client Mode 4.8.3 Advanced TCP/IP 4.8 Network 4.8.4 UMTS Settings 4.8.5 IP Filtering 4.8.6 SNMP Settings 4.9.1 Date and Time Settings 4.9.2 Storage Settings 4.9.3 User Account 4.9 Management 4.9.4 Log Information 4.9.5 Tools 4.9.6 Language...
Page 79: Video And Motion
Administrator Mode 4.1 Video and Motion The GV-IPCAM can simultaneously process one video source in two different codec and resolutions. The dual-stream design benefits for lower bandwidth environment, allowing Streaming 2 to be set with lower resolution and codec for live streaming, and Streaming 1 set with highest resolution and H.264 / H.265 for best recording quality.
Page 80: Video Settings
4.1.1 Video Settings Figure 4-2A...
Page 81 Administrator Mode Figure 4-2B...
Page 82 Figure 4-2C [Name] Rename the video stream. To display the name of video stream on the Live View window, see 3.2.9 Camera Name Display. [Connection Template] Select the type of your network connection. Unless you select Customized, this option will automatically bring up the recommended video resolution, frame rate, bandwidth and GOP size.
Page 83 Administrator Mode Note that for all the cameras (except GV-PTZ010D), the resolution options available for sub stream vary with the resolution selected for its main stream. For example, if a 4:3 resolution is selected for the main stream in GV-EVD5100, three options, 960 x 720, 640 x 480 and 320 x 240 will be available for its sub stream.
Page 84 Camera Type Default Max. Bitrate of VBR Stream 1 6 Mbit 1.3 MP Stream 2 4 Mbit Stream 1 8 Mbit 2 MP Stream 2 4 Mbit Stream 1 3 MP / 4 MP / 5 MP 12 Mbit Stream 2 Stream 1 8 MP / 12 MP 16 Mbit...
Page 85 Administrator Mode Note: To enable Smart Streaming supported only by GV-BX12201 firmware V1.02 or later, it is required to use either GV-NVR V8.7 or GV- VMS V16.10. [Region of Interest] Note this function is disabled by default and is not supported by GV-BX2600 and Target Series.
Page 86 [Video Slice Mode] Note this function is only supported by firmware V2.12 or earlier and is not supported by Target Series and GV-IPCAM H.265. Corrects the display mode of the camera when it is displayed on third- party NVR/DVR software and the live view is incomplete or broken. Select Single Slice or Multi Slice to display the live view.
Page 87 Web interface or any other applications. [Text Overlay Settings] Displays camera name, date, and/or time on the live view and recorded videos when viewing through GeoVision software. Camera Name: Type the camera name. Overlay with: Select one or more of the options below to be overlaid on the live view and recorded videos.
Page 88 Displays camera name, date, and/or time on the live view and recorded videos when viewing through GeoVision software and third-party software through ONVIF and RTSP. Name: Type the camera name. Font Size: Select the font size using the drop-down list.
Page 89 Administrator Mode Note: For smooth display of Box Camera, IR Arctic Box Camera, Fixed IP Dome and Vandal Proof IP Dome on monitor, the video resolution must be 1280 x 1024 or lower. If dual streams are enabled, the sub stream must be set as 640 x 480. The resolution of GV-EFD2101/3101/5101 and GV- EVD2100/3100/5100 on monitor is universally set to D1.
Page 90 [Special View Setting] Note this function is not available for GV-BX2600. D/N: Sets the sensitivity of day-night mode switch. The higher the sensitivity value, the more sensitive the switch is from day mode to night mode. The default value is 5. Auto: Select Auto for the camera to detect the amount of light present and automatically switch to monochrome in a poorly-lit scene.
Page 91 Administrator Mode Note: If an infrared illuminator is installed for outdoor surveillance, it is suggested to use the Trigger by Input or the Trigger IR by D/N function to avoid incorrect judgment of lighting and hence the action of the IR cut filter. See Infrared Illuminators in the Hardware Manual.
Page 92 Noise Reduction: Note this function is only supported by GV- EVD5100 and GV-EFD5101. Reduces image noise especially under low-light conditions. Note: When the Noise Reduction is enabled, the frame rate will be affected. For details see Note for GV-EVD5100 / EFD5101 at the beginning of the manual.
Page 93: Motion Detection
Administrator Mode 4.1.2 Motion Detection Motion detection is disabled by default except for GV-PTZ010D. Note: GV-BX2600 has its independent motion detection setting. For details, see 4.2 Video Analysis. Motion detection is used to generate an alarm whenever movement occurs in the video image. You can configure up to 8 areas with different sensitivity values for motion detection.
Page 94 Figure 4-4 Select the desired sensitivity by moving the slider. There are ten values. The higher the value, the more sensitive the camera is to motion. Drag an area on the image. Click Add when you are prompted to confirm the setting. To create several areas with different sensitivity values, repeat steps 1 and 2.
Page 95 Administrator Mode If you want to detect motion using the PIR sensor (for Advanced Cube Camera only), select Use PIR to detect motion. If you want to ignore environmental changes such as rain or snow, select Ignore environmental changes. The Noise Tolerance function is enabled by default. It ignores video noise when the light intensity changes.
Page 96: Privacy Mask
4.1.3 Privacy Mask The Privacy Mask function is used to block out sensitive areas on live view and recorded clips for cameras connecting to GeoVision software. This feature is ideal for locations with displays, keyboard sequences (e.g. passwords), and for anywhere else you don’t want sensitive information visible.
Page 97: Text Overlay
Administrator Mode 4.1.4 Text Overlay The Text Overlay allows you to overlay any text in any place on the camera view. Up to 16 text messages can be created on one camera view. The overlaid text will be saved in the recordings. Figure 4-6 Select the font, font style and font size in a pop-up window.
Page 98 Click Set Font to modify the font settings. Click Save to apply the settings, or click Load (Undo) to revert to the last saved setting. Click Preview to see how the text will appear on the image. Click Close to end the preview.
Page 99: Tampering Alarm
Administrator Mode 4.1.5 Tampering Alarm Note this function is not available for PTZ Camera and PT Camera. Tampering Alarm is used to detect whether a camera is being physically tampered. An alarm can be generated when the camera is moved, covered up, or out of focus.
Page 100 Figure 4-8 To configure the tampering alarm: Select the Enable option. If you want the camera to ignore any movement or scene change in certain areas, click the button to drag areas on the camera view. Select the desired detection sensitivity by moving the slider. The higher the value, the more sensitive the camera is to scene changes.
Page 101 Administrator Mode To trigger an alarm when the scene turns dark, e.g. when the lens of camera is covered, make sure the Alarm for Dark Images option is enabled. By default, this function is enabled. Click Apply to save all the settings. Start monitoring to enable the function.
Page 102: Visual Automation
4.1.6 Visual Automation Note this function is only supported by cameras with I/O function. This intuitive feature helps you automate any electronic device by triggering the connected output device. When you click on the image of the electronic device, you can simply change its current state, e.g. light ON. Figure 4-9 Select the Enable option.
Page 103 Administrator Mode Assign the connected module and output device. In the Note field, type a note to help you manage the device. Click OK to save the settings. To change the frame color of the set area, click the Set Color button. To emboss the set area, select Float Up;...
Page 104: Video Analysis
4.2 Video Analysis Note the Video Analysis functions in this section are only available for GV- BX2600 and only work with the surveillance system GV-VMS V15.10 or later. Video Analysis provides real-time video capture for detection of temporary occurrences or events of interest. You can use the video image to identify motion, find and trace objects, and even produce alarms on unusual activities.
Page 105 Administrator Mode The status bar on every Video Analysis page presents the current state of the camera’s view being displayed on screen. It also includes controls that allow you to locate any detection region which you would like to edit or delete.
Page 106 The icon flashes when an unattended object stays Unattended within the camera view. For details, see 4.2.3 Object Unattended Object. The icon flashes when an intruder crosses the 4 Intruder defined regions. For details, see 4.2.2.1 Intruder. The icon flashes when the target object crosses 5 People Count the defined regions.
Page 107: Motion Detection
Administrator Mode 4.2.1 Motion Detection Whenever movement is observed in the detection region, you will be alerted by an alarm or a notification. The alarm output will be set off, e-mail and FTP upload will be triggered, and the connected surveillance system GV-VMS, GV-Center V2 and GV-Vital Sign Monitor will record the event.
Page 108 To define a detection region: Use the slider to set a desired sensitivity level for the detection region you want to define in step 4B. The sensitivity levels range from 1 to 10, with 8 as default. The higher the level, the more sensitive the camera is to motion.
Page 109 Administrator Mode Click Fix to confirm your setting. To create several non detection zones, repeat steps 5A and 5B. To activate motion detection at specific time periods each day, create a schedule. Span 1- Span 3: Set a different time frame during the day. Each day can be divided into 3 time frames, represented by Span 1 to Span 3.
Page 110 In GV-VMS, when motion is detected on the camera, you will see the log event “Motion” as illustrated below. IMPORTANT: It is required to enable the “Video Analysis on Camera” function on GV-VMS in advance. See Important note on page 78.
Page 111: Advanced Video Analysis
Administrator Mode 4.2.2 Advanced Video Analysis From the Video Analysis drop-down list, select Advanced Video Analysis. Advanced Video Analysis can perform a variety of tasks for security purpose and other events of interest. Intruder detects when an object enters into the defined region. People Count records objects or people of interest moving through the defined areas.
Page 112 4.2.2.1 Intruder When any object moves into and out of the two defined regions, the event will be recorded to the connected surveillance system GV-VMS for later retrieval. Figure 4-15 Select Enable. Select Intruder to set up the intruder alarm settings. Use the Sensitivity slider to increase or decrease the detection sensitivity of the region you want to define in step 4.
Page 113 Administrator Mode To draw the 2 detection area, repeat steps 4A and 4B. Each detection region is numbered. To clear any defined area, click under the image, and click the X icon to remove it. Click again to return to the setting.
Page 114 In GV-VMS, when the event is detected on the camera, you will see the log “Intruder” as illustrated below. For details on how to connect to GV-VMS, see 7.2 Setting up IP Cameras on GV-VMS. IMPORTANT: It is required to enable the “Video Analysis on Camera” function on GV-VMS in advance.
Page 115 Administrator Mode 4.2.2.2 People Count People Count counts the number of moving objects, such as vehicles, people or animals, between two specific points under the surveillance area. The counting results will be recorded to the connected surveillance system GV-VMS for later retrieval. Note: For counting accuracy, the camera should be installed in a vertical position and at least 3 meters from the ground.
Page 116 Select Enable. Select People Count to set up the counter. Draw two detection areas for object counting. Select Define Detection Zones to define the detection area. Use the Sensitivity slider to increase or decrease the detection sensitivity of the area you want to define in step 3C. The sensitivity levels range from 1 to 10, with 8 as default.
Page 117 Administrator Mode Click Apply To test your counting settings, click Start to begin testing. Notice how the number changes under the Test section when objects move through the detection areas. Figure 4-18 To activate people count settings at specific time periods each day, create a schedule.
Page 118 IMPORTANT: It is required to enable the “Video Analysis on Camera” function on GV-VMS in advance. See Important note on page 78.
Page 119 Administrator Mode 4.2.2.3 Loitering After movement occurs at a specific area and exceeds the defined time threshold, the event will be recorded to the connected surveillance system GV-VMS for later retrieval. Figure 4-19 Select Enable. Select Loitering. To define a detection region: Use the slider to set a desired sensitivity level for the detection region you want to define in step 4B.
Page 120 To create several areas with different sensitivities, repeat steps 3A and 3B. To clear any defined area, click under the image, and click the X icon to remove it. Click again to return to the setting. Use the Detection Time slider to set the time length required for the alarm to be triggered if the system detects any motion within the defined area.
Page 121: Unattended Object / Missing Object Detection
Administrator Mode 4.2.3 Unattended Object / Missing Object Detection When any unattended objects or missing objects are detected within the camera view, the event will be recorded to the connected surveillance system GV-VMS for later retrieval. From the Video Analysis drop-down list, select Unattended Object / Missing Object Detection.
Page 122 On the live view, draw the detection area. To draw an irregular shape, drag one or more of the red dots that outline the box until the line is in the shape that you want. See Figure 4-13. Click Fix to confirm your setting. To draw a new detection area, repeat steps 4 to 5.
Page 123 Administrator Mode IMPORTANT: It is required to enable the “Video Analysis on Camera” function on GV-VMS in advance. See Important note on page 78.
Page 124: Tampering Alarm
4.2.4 Tampering Alarm The Tampering Alarm is used to detect when a camera is being physically tampered. When the camera is moved, covered up, or out of focus, the email alert can be sent, and the connected surveillance system GV-VMS, GV-Center V2 and GV-Vital Sign Monitor will record the event.
Page 125 Administrator Mode To trigger the e-mal alert when tampering alarm is detected, configure e-mail server and select Motion Detection alarm. See 4.4.1 E-Mail To notify GV-Center V2, GV-Vital Sign Monitor and GV-VMS when tampering alarm is detected, enable the connection to these systems. See 4.4.3 Center V2, 4.4.4 Vital Sign Monitor and 7.2 Setting up IP Cameras on GV-VMS.
Page 126: I/O Settings
4.3 I/O Settings Note the I/O settings are only available for Box Camera, Bullet Camera, Ultra Bullet Camera, PTZ Camera, PT Camera, Vandal Proof IP Dome, and Fixed IP Dome. After installing the I/O device, you need to enable the I/O settings on the camera.
Page 127: Input Settings
Administrator Mode 4.3.1 Input Settings To activate the sensor input, select Enable. Figure 4-22 Normal State: You can set the input state to trigger actions by selecting Open Circuit (N/O) or Grounded Circuit (N/C). Latch Mode: Enable this option to have a momentary output alarm. Trigger digital output relay: When this option is enabled, the output will be triggered once the input is activated.
Page 128 PTZ Settings: Note this function is only available for PTZ Camera and PT Camera. Input On: Select a preset point to which the camera turns when an input is triggered. Input Off: Select a preset point to which the camera returns when the input triggering is off.
Page 129: Output Settings
Administrator Mode 4.3.2 Output Settings Select Enable to start the output device. Choose the output signal that mostly suits the device you are using: N/O (Open Circuit), N/C (Grounded Circuit), N/O Toggle, N/C Toggle, N/O Pulse or N/C Pulse. For Toggle output type, the output continues to be triggered until a new input trigger ends the output.
Page 130: Ptz Settings
4.3.3 PTZ Settings Note this function is only available in PTZ Camera and PT Camera. You can change the image settings, configure sequences, and access settings including autopan speed, motor reset, digital zoom and system default loading. For details, see Accessing the VISCA OSD Configuration in the Hardware Manual.
Page 131: Events And Alerts
Administrator Mode 4.4 Events and Alerts For the events of motion detection or I/O trigger, the Administrator can set up two trigger actions: 1. Send a captured still image by E-mail or FTP. 2. Notify Center Monitoring Station, Center V2 or Vital Sign Monitor, by video or text alerts.
Page 132: E-Mail
4.4.1 E-mail After a trigger event, the camera can send the e-mail to a remote user containing a captured still image. Figure 4-25 [Enable] Select to enable the e-mail function. Sever URL/IP Address: Type the URL address or IP address of the SMTP Server.
Page 133 Administrator Mode Alerts Interval Time: Specify the interval between e-mail alerts. The interval is between 0 and 60 minutes. The option is useful for the frequent event occurrence, by which any event triggers during the interval period will be ignored. [Need authentication to login] If the SMTP Server needs authentication, enable this option and type a valid username and password to log in the SMTP server.
Page 134: Ftp
4.4.2 FTP You can also send the captured images to a remote FTP server as alerts. Figure 4-26...
Page 135: Alarm Settings
Administrator Mode [Upload to an FTP Server] Enable: Select to enable the FTP function and then select Active Mode or Passive Mode, depending on the setting of your FTP server. Server URL/IP Address: Type the URL address or IP address of the FTP Server.
Page 136 Interval: Use the drop-down list to specify how frequent the images are sent to the FTP server. Enable Recycling: Select this option to recycle the FTP storage at the specified Keep Day. Keep Days: Specify how frequent the images saved at the FTP server are recycled.
Page 137: Center V2
Administrator Mode 4.4.3 Center V2 After a motion or an I/O triggered event, the central monitoring station Center V2 can be notified by live videos and text alerts. For the live monitoring through Center V2, you must already have a subscriber account on Center V2.
Page 138 To enable the Center V2 connection: Activate Link: Enable the monitoring through Center V2. Host Name or IP Address: Type the host name or IP address of Center V2. Port Number: match the port to the Port 2 value on Center V2 or keep the default value 5551.
Page 139: Vital Sign Monitor
Administrator Mode 4.4.4 Vital Sign Monitor After a motion or an I/O triggered event, the central monitoring station Vital Sign Monitor can get notified by text alerts. For the monitoring through Vital Sign Monitor, you must already have a subscriber account on Vital Sign Monitor.
Page 140 To enable the Vital Sign Monitor connection: Activate Link: Enable the monitoring through Vital Sign Monitor. Host Name or IP Address: Type the host name or IP address of Vital Sign Monitor. Port Number: Match the port to the Port 2 value on Vital Sign Monitor. Or keep the default value 5609.
Page 141 Administrator Mode 4.4.5 Backup Center For the supported version of different models, see Appendix C. Note that Backup Center is not supported for Target Series and GV-BX2600. The connection to the GV-Backup Center allows you to back up another copy of recordings and system log to the GV-Backup Center on an offsite location while the camera is saving these data to the memory card.
Page 142 To enable connection to GV-Backup Center: Activate Link: Enable the connection to the GV-Backup Center. Host Name or IP Address: Type the host name or IP address of the GV-Backup Center. Port Number: Match the communication port on the GV-Backup Center or keep the default value 30000.
Page 143 Administrator Mode Host Name or IP Address: Type the host name or IP address of the failover GV-Backup Center. Port Number: Match the communication port on the failover GV- Backup Center or keep the default value 30000. User Name: Type a valid user name to log into the failover GV- Backup Center.
Page 144 4.4.6 Video Gateway / Recording Server For the supported version of different models, see Appendix C. The GV-Video Gateway / GV-Recording Server is a video streaming server designed for large-scale video surveillance deployments. The GV-Video Gateway / GV-Recording Server (with recording capability) can receive up to 128 channels from various IP video devices, and distribute up to 300 channels to its clients.
Page 145 Administrator Mode The supported GV-IPCAM can connect up to two GV-Video Gateway / GV- Recording Server. To send the video images to the GV-Video Gateway or GV-Recording Server, follow the steps below. Activate Link: Enable the connection to the GV-Video Gateway / GV- Recording Server.
Page 146: Viewlog Server
4.4.7 ViewLog Server Note that ViewLog Server is not supported for Target Series. The ViewLog Server is designed for remote playback function. This server allows you to remotely access the recorded files saved at the GV-IPCAM and play back video with the ViewLog player. This function is enabled by default using port 5552.
Page 147: Rtsp/Onvif
Administrator Mode 4.4.8 RTSP/ONVIF The RTSP enables video and audio streaming to your 3G-enabled mobile phone. The RTSP streaming is enabled by default. Figure 4-32 [RTSP] Activate Link: Enable the RTSP service. RTSP/TCP Port: Keep the default value 8554, or modify it if necessary.
Page 148 Enable Audio: Note this function is not available for Target Bullet Camera, Target Mini Fixed Rugged Dome and Ultra Bullet Camera. Turns audio streaming on or off. For the supported firmware versions, see Appendix C. Disable Authentication: By default, when accessing live view through RTSP command, the ID and password of the camera are required.
Page 149: Speaker
Administrator Mode 4.4.9 Speaker Note this function is only available for Advanced Cube Camera. The Advanced Cube camera is equipped with an alarm. With the Speaker settings, your camera can sound the speaker when the camera is being tampered or when motions are detected. This function is disabled by default.
Page 150: Monitoring
4.5 Monitoring You can start monitoring manually, by schedule or by input trigger. Note: 1. See Note for Connecting to GV-System / GV-VMS at the beginning of the manual. 2. For GV-EBL2101, see 4.5.1 Monitoring Settings for GV-EBL2101 for corresponding page.
Page 151 Administrator Mode Figure 4-34 [Manual] Manually activates motion detection and I/O monitoring. Select one of the following options and then click the Start button. Select all: Manually starts both motion detection and I/O monitoring. Camera: Manually starts recording. Select the desired recording mode for recording.
Page 152 Input: Note this function is only supported by cameras with I/O function. Manually starts I/O monitoring. When the sensor input is triggered, its associated camera and output will be activated for recording and alerting. For this setting, see 4.3.1 Input Setting. [Schedule] The system starts motion detection and I/O monitoring according to the schedule you have set.
Page 153: Monitoring Settings For Gv-Ebl2101
Administrator Mode Recording Profile: This setting is only applicable for recording to the camera’s memory card. Select Performance to maximize the lifespan of the memory card by restricting the frame rate to 30 fps and maximum bit rate to 4 Mbit. Select Quality to adopt your current settings.
Page 154: Recording Schedule
4.6 Recording Schedule Note this function is not available for GV-EBL2101. The schedule is provided to activate recording and I/O monitoring on a specific time each day. 4.6.1 Recording Schedule Settings You can set the schedule for recording. Figure 4-36 Span 1- Span 3: Set a different recording mode for each time frame during the day.
Page 155: I/O Monitoring Settings
Administrator Mode 4.6.2 I/O Monitoring Settings Note this function is only supported by cameras with I/O function. You can set the schedule for I/O monitoring to start. Figure 4-37 Span 1- Span 3: Set different time frames during the day to enable I/O monitoring.
Page 156: Remote Viewlog
4.7 Remote ViewLog Note this function is not available for Target Series. With the Remote ViewLog player, you can play back the files recorded at the camera over TCP/IP network. For the first-time user, you need to install the Remote ViewLog program from the Software DVD.
Page 157: Network
Administrator Mode 4.8 Network The Network section includes some basic but important network configurations that enable the camera to be connected to a TCP/IP network. 4.8.1 LAN Configuration According to your network environment, select among Static IP, DHCP and PPPoE. Figure 4-38...
Page 158 [Optional Network Type] Note the Wireless Settings are only available in GV-BX1200 Series / 1500 Series / 2400 Series / 2500 Series / 3400 Series / 5300 Series, GV- CAW120 / 220 and GV-MFD1501 Series / 2401 Series / 2501 Series / 3401 Series / 5301 Series.
Page 159: Wireless Client Mode
Administrator Mode 4.8.2 Wireless Client Mode Note this function is only supported in GV-BX1200 Series / 1500 Series / 2400 Series / 2500 Series / 3400 Series / 5300, GV-CAW120 / 220 and GV-MFD1501 Series / 2401 Series / 2501 Series / 3401 Series / 5301 Series and when GV-WiFi Adapter is installed.
Page 160 Network name (SSID): The SSID (Service Set Identify) is a unique name that identifies a particular wireless network. Type SSID of the Wireless LAN group or Access Point you are going to connect to. Access Point Survey: Click this button to search all the available Access Points (Infrastructure mode) and wireless stations (AD-Hoc mode) within the LAN.
Page 161: Advanced Tcp/Ip
Administrator Mode 4.8.3 Advanced TCP/IP This section provides the advanced TCP/IP settings, including DDNS Server, HTTP port, HTTPS, streaming port, UPnP, QoS and network connection check. Figure 4-40A...
Page 162 DHCP Server or ISP (in xDSL connection) has changed. Before enabling the following DDNS function, the Administrator should have applied for a Host Name from the DDNS service provider’s website. There are 3 providers listed in the camera: GeoVision GVDIP, GeoVision DDNS Server and DynDNS.org.
Page 163 Host Name: Type the host name used to link to the camera. For the users of GeoVision DDNS Server, it is unnecessary to fill the field because the host name will be detected and brought up automatically. User Name: Type the username used to enable the service from the DDNS.
Page 164 table for the operating system (such as Windows XP) supported by this function. Enabling this function means you can connect to the camera directly by clicking on the camera listed in the network devices table. [QoS Settings] The Quality of Service (QoS) is a bandwidth control mechanism that guarantees delay-sensitive data flows such as voice and video streams, obtain a certain amount of bandwidth to keep the streaming smooth.
Page 165: Umts Settings
Administrator Mode 4.8.4 UMTS Settings Not this function is not supported by GV-IPCAM H.265. UMTS stands for Universal Mobile Telephone System. UMTS is a third- generation (3G) broadband, packet-based transmission of text, digitized voice, video, and multimedia at data rates up to 2 megabits per second. UMTS offers a consistent set of services to mobile computer and phone users, no matter where they are located in the world.
Page 166 Figure 4-41 PIN number: Type the PIN number that is provided by your network operator. Access Point Name (APN): Type Access Point Name that is provided by your network operator. Username: Type a valid username to enable the UMTS service from your network operator.
Page 167 Administrator Mode Password: Type a valid password to enable the UMTS service from your network operator. Maximum Transmission Unit: Type the Maximum Transfer Unit (MTU). The default value is 1500. Retain UMTS Connection: Select this option to check the UMTS connection status and use the drop-down list to specify the desired time length for check frequency.
Page 168: Ip Filter Settings
4.8.5 IP Filter Settings The Administrator can set IP filtering to restrict access to the camera. Figure 4-42 To enable the IP Filter function: Enable IP Filtering: Enable the IP Filter function. Filtered IP: Type one IP address or a range of IP addresses you want to restrict the access.
Page 169: Snmp Settings
Administrator Mode 4.8.6 SNMP Settings The Simple Network Management Protocol (SNMP) allows you to monitor the status of the camera through SNMP network management software. Figure 4-43...
Page 170 Select Enable SNMPv1 SNMPv2c to enable the function. To enable access to Read/Write community, type a community string. This will serve as a password to allow read and write access to the camera from the SNMP software. To enable Read only community, type a community string to allow read-only access to the camera from the SNMP software.
Page 171: Management
Administrator Mode 4.9 Management The Management section includes the settings of data and time and user account. You can also view the firmware version and execute certain system operations. 4.9.1 Date & Time Settings The date and time settings are used for date and time stamps on the image. Figure 4-44...
Page 172 [Date & Time on GV-IP Camera] Displays the current date and time on the camera. [Time Zone] Sets the time zone for local settings. Select Enable Daylight Saving Time to automatically adjust the camera for daylight saving time. Type the Start Time and End Time to enable the daylight saving function. For GV-BX12201 firmware V1.02 or later, you can also select which day of a week within a month to apply the DST setting.
Page 173: Storage Settings
Administrator Mode 4.9.2 Storage Settings Based on Linux file system, the camera supports memory cards for video and audio recordings. You need to format the storage device by using the following Storage Settings. After being formatted, the storage device will be ready to use by Linux OS of the camera.
Page 174 Figure 4-45...
Page 175 Administrator Mode [Storage Settings] Name: Type the name of the storage device. The name can only contain English letters (of upper or lower cases), numerals, slashes, and hyphens. Note: The setting of the device name is for GV-NAS System only. Enable recycling: If Enable recycling is selected, when the space of the storage device is lower than the specified space, the system will overwrite the oldest recorded files.
Page 176 Windows-based server. To avoid dropping frame rate, when GV-EFD3101 / GV-EVD3100 and GV-EFD5101 / GV-EVD5100 are connected to GeoVision software, and recording to NAS with the resolution of 2048 x 1536 and 2592 x 1944 at 30 fps, it is highly recommended to change its...
Page 177 Administrator Mode To connect record to GV-NAS Systems, follow the steps below. Under Network Neighborhood Settings, select Enable and click the Search button to search for available NAS servers. Figure 4-46 Type the username and password, and click Select. Figure 4-47 Note: Depending on the models of GV-NAS System, up to 16 default user accounts (username: Cam01 –...
Page 178 Click Apply. Once connected, the disk status will display. Figure 4-49 Tip: Instead of searching for available NAS servers, you can also type the storage path directly. Type the Server URL/ IP Address in this format: \\NAS IP Address\Storage Folder. For example, \\192.168.0.1\IP_Camera. This GV-IP Camera will be recorded to a default shared folder named “IP_Camera”...
Page 179 Administrator Mode [Disk Information] Note this function is not supported for Target Series. This section shows the details of the attached storage device. Use the Format/Remove button to format or unload a storage device. For detail steps, see Partition Information below. [Partition Information] Note this function is not supported for Target Series.
Page 180 The storage device cannot be written due to Read Only abnormal power disruption. The system is attempting to repair the recording Repairing data. Note: 1. If Enable Recycle is selected, the available space of the storage device must be higher than the space you specified at the Stop recording or recycle disk when free space of disk is smaller than x option.
Page 181: User Account
Administrator Mode 4.9.3 User Account You can change the login name and password of Administrator and Guest. The default Administrator login name and password are admin; the default Guest login name and password are guest. To allow a Guest user log in without entering name and password, select Disable authentication for guest account.
Page 182: Log Information
4.9.4 Log Information The log information contains dump data that is used by service personnel for analyzing problems. The logs available may vary depending on the camera model. Figure 4-53...
Page 183: Tools
Administrator Mode 4.9.5 Tools You can execute certain system operations and view the firmware version. Figure 4-54...
Page 184 [Host Settings] Enter a descriptive name for the camera. [Auto Reboot Setup] Select Enable to activate automatic reboot and specify the time for reboot in the sub fields. Day Interval: Type the day interval between each reboot. Reboot Time: Use the drop-down lists to specify the time for automatic reboot.
Page 185 Administrator Mode [Reboot] Clicking the Reboot button will make the camera perform software reset.
Page 186: Language
4.9.6 Language Note this function is not available in GV-PTZ010D. You can select the language for the Web interface. Figure 4-55 Use the Language drop-down list to select a language for the Web interface. By default, the language on the Web interface will be the same with the one used for the operating system.
Page 187: Chapter 5 Recording And Playback
Recording and Playback Chapter 5 Recording and Playback Note that Recording and Playback function is not available for Target Series. The camera can record video and audio directly to the memory card. You can play back the recorded files on the GV-System / GV-VMS or over the TCP/IP network.
Page 188: Playback
5.2 Playback These methods are available to play back the video files recorded at the camera: • Playback from the memory card by connecting it directly to the GV-System / GV-VMS through a card reader • Playback by using the Remote ViewLog function over the TCP/IP network •...
Page 189 Recording and Playback Install the Ext2Fsd from the Software DVD. Note: If you are using Windows 8 or Windows Server 2012, change its compatibility before installing the Ext2Fsd program: Right-click the Ext2Fsd program and select Properties. This dialog box appears. Figure 5-1 Select the Compatibility tab.
Page 190 On Your desktop, click Start, select Programs, locate the Ext2Fsd folder and select Ext2 Volume Manager. All the connected drives are shown. Figure 5-2...
Page 191 Recording and Playback For the first-installation, execute the Ext2Fsd Service. A. From the Ext2 Volume Manager window, select Tools and select Service Management. This dialog box appears. Figure 5-3 B. Click Apply.
Page 192 Mount the storage drive to your computer. A. From the Ext2Fsd Volume Manager window, right-click the storage drive and select Ext2 Management. This dialog box appears. Figure 5-4 B. Under the Mount point & driver letter section, select Automatically mount via Ext2Mgr, specify a disk drive using the drop-down list and click Apply.
Page 193 Recording and Playback C. On the Ext2 Volume Manager window, the storage drive is successfully mounted to your computer when it is indicated with the disk drive you specified. Figure 5-5 Access the recording files from the specified drive of your computer.
Page 194: Playback Over Network
5.2.2 Playback over Network With the Remote ViewLog function, you can play back the files recorded at the camera over TCP/IP network. The camera needs to allow the remote access with ViewLog Server activated. See 4.4.7 ViewLog Server. For the first-time user, run the Remote ViewLog program from the Software DVD.
Page 195: Access To The Recorded Files Through Ftp Server
Media Player. For details to download files, see [Act as FTP Server], 4.4.2 FTP. Note: To play back videos, ensure you have installed Geovision codec on the computer. The codec is available on the Software DVD. If you have installed the Remote Playback player on the computer, it is not...
Page 196: Playback Of Daylight Saving Time Events
5.2.4 Playback of Daylight Saving Time Events On GV-System, you can retrieve the events recorded during the Daylight Saving Time (DST) period from the camera for playback. You can also connect the memory card to GV-System for playback. The following instructions describe how to retrieve the recorded files from the camera over network.
Page 197 Recording and Playback On the Video Event list, select desired events, and click the Play button to start. Note: The playback function is only compatible with the GV-System of version 8.3 and later. The AVI file recorded during the DST period is named with the prefix “GvDST”, e.g.
Page 198: Chapter 6 Advanced Applications
Chapter 6 Advanced Applications This chapter introduces more advanced applications. 6.1 Upgrading System Firmware GeoVision periodically releases updated firmware on the website. Simply download the new firmware into the camera using the Web interface or IP Device Utility included in the Software DVD.
Page 199: Chapter 6 Advanced Applications
In this case, please contact your sales representative and send your device back to GeoVision for repair. Do not turn the power off within 10 minutes after the firmware is updated.
Page 200: Using The Web Configuration Interface
6.1.1 Using the Web Configuration Interface In the Live View window, click the Show System Menu button (No. 9, Figure 3-3) and select Remote Config. This dialog box appears. Figure 6-2 Click the Browse button to locate the firmware file (.img) saved at your local computer.
Page 201: Using The Ip Device Utility
GV-IPCAM. Note the computer used to upgrade firmware must be under the same network of the camera. Insert the Software DVD, select GeoVision IP Device Utility, and follow the onscreen instructions to install the program. Double-click the IP Device Utility icon created on your desktop. This dialog box appears.
Page 202 Double-click one camera in the list. This dialog box appears. Figure 6-4...
Page 203 Advanced Applications Click the Firmware Upgrade tab. This dialog box appears. Figure 6-5 Click the Browse button to locate the firmware file (.img) saved at your local computer. If you like to upgrade all the cameras in the list, select Upgrade all devices.
Page 204: Backing Up And Restoring Settings
6.2 Backing Up and Restoring Settings With the IP Device Utility included in the Software DVD, you can back up the configurations in the camera, and restore the backup data to the current camera or import it to another camera. To back up the settings: Run IP Device Utility and locate the desired camera.
Page 205 Advanced Applications Type Password, and click the Export settings button to save the backup file. To restore the settings: In Figure 6-4, click the Import Settings tab. This dialog box appears. Figure 6-7 Click the Browse button to locate the backup file (.dat). Select Upgrade all devices to import the settings into devices of the same type in the same LAN.
Page 206: Changing Password
6.3 Changing Password You change the login password of your GV-IP Camera using GV-IP Device Utility. Make sure you have installed and executed GV-IP Device Utility. For details, see steps 1 to 3 in 7.1.2 Using the GV-IP Device Utility. This page appears.
Page 207 Advanced Applications Double-click one camera in the list. This window appears. Figure 6-9 Type Password, click , select Other Settings and then select Change Password. This dialog box appears. Figure 6-10...
Page 208 Type the new password in both fields. To change devices of the same type to the same password, select Sync all devices. Click OK to apply the change.
Page 209: Verifying Watermark
Advanced Applications 6.4 Verifying Watermark The watermark is an encrypted and digital signature embedded in the video stream during the compression stage, protecting the video from the moment of creation. Watermarking ensures that an image is not edited or damaged after it is recorded. To enable the watermark function, see [Watermark Setting], 4.1.1 Video Settings.
Page 210: Running Watermark Proof
6.4.2 Running Watermark Proof Install Watermark Proof from the Software DVD. After installation, a WMProof icon is created on your desktop. Double-click the created icon. The Water Mark Proof window appears. Click File from the menu bar, select Open and locate the recording (.avi).
Page 211: The Watermark Proof Window
Advanced Applications 6.4.3 The Watermark Proof Window Figure 6-11 The controls in the window: Name Description Open File Opens the recording. First Frame Goes to the first frame of the file. Play Plays the file. Previous Frame Goes to the previous frame of the file. Next Frame Goes to the next frame of the file.
Page 212 Name Description The Extracted icon should be identical with the Original icon. If not, it Original vs. Extracted indicates the recording has been tampered. File List Displays the proof results.
Page 213: Downloading Videos From The Micro Sd Card
Advanced Applications 6.5 Downloading Videos from the Micro SD Card When connections of GV-IP Cameras to the GV-System are lost, recordings are automatically saved to the memory cards inserted in the GV-IP Cameras. To automatically synchronize and download recordings from the micro SD cards to a local folder, install and execute the GV-SDCardSync Utility program.
Page 214: Installing The Gv-Sdcardsync Utility
6.5.1 Installing the GV-SDCardSync Utility Download the GV-SD Card Sync Utility program from http://ftp.geovision.tw/FTP/neo/Utility/GvSDCardSync_Setup.zip Note: The GV-SD Card Sync Utility must be installed on the computer installed with GV-System V8.5.4 or later. Execute the GV-SDCard Sync Utility program. The main window and the Setting window appear.
Page 215 Advanced Applications To configure synchronization, network and startup settings, see the steps below. Figure 6-13 [Synchronization] Synchronize automatically at an interval: Automatically synchronize videos from micro SD cards to a local folder at the specified interval. Synchronize automatically at: Automatically synchronize videos from micro SD cards to a local folder at the specified time.
Page 216 [Network] Max. download speed of each device (Kb/sec): To make sure the bandwidth is not completely taken up while downloading files from the memory card, specify a maximum download speed. If you do not want to set a bandwidth limit, type 0. [General] Start up automatically at Windows login: GV-SDSync Utility launches automatically when Windows starts up.
Page 217 Advanced Applications [Recycle] Recycle when the storage space is less than (GB): Specify a minimum free space of your local storage for file recycling. Keep the downloaded files for (Days): Specify the number of days to keep the download files at the local hard drive. [Storage Location] To configure the storage path, click the button next to the location field and specify a storage location.
Page 218: The Gv-Sdcardsync Utility Window
6.5.2 The GV-SDCardSync Utility Window After you have installed the GV-SDCardSync Utility, point to Start, select Programs, select GV-SDCardSync and select to launch the program. This window appears. Figure 6-15 Name Description Plays downloaded recordings of the selected GV-IP Cameras using the ViewLog player. For Play Video details, see Chapter 4, DVR User’s Manual on Surveillance System Software DVD.
Page 219 Advanced Applications Name Description Displays up to 100 event entries of the GV- Log Tab SDCardSync Utility. Once the entries are full, recycling will start from the oldest file. Shows the storage space of the designated Storage Space hard drive. Note: 1.
Page 220: Chapter 7 Dvr Configurations
Chapter 7 DVR Configurations The GV-System and GV-VMS provide a complete video management, such as video viewing, recording, playback, alert settings and almost every feature of the system. Note that GV-System version 8.5.5.0 or later or GV-VMS version 14.10 or later is required. TCP/ IP IP Camera GV-System / GV-VMS...
Page 221 DVR Configurations The compatible version of GV-System / GV-VMS for each camera model: Compatible version of Camera Models GV-System / GV-VMS GV-BX2400-1F ~ 2F V8.5.5 or later / GV-BX3400-5V V14.10 or later GV-BX5300-6V V8.5.7 or later / GV-BX1500-3V V14.10 or later GV-BX1500-8F V8.5.8 or later /...
Page 222 Compatible version of Camera Models GV-System / GV-VMS V8.6.2 (with patch files) or later / GV-BX12201 Camera V14.10.1 (with patch files) or later GV-UBX1301 Series V8.5.6 or later / Ultra Box GV-UBX2301 Series Camera V14.10 or later GV-UBX3301 Series GV-EBX1100 Series V8.5.9 or later / Target Box Camera...
Page 223 DVR Configurations Compatible version of Camera Models GV-System / GV-VMS V8.5.7 or later / GV-MFD1501 Series V14.10 or later GV-MFD2401 Series Mini Fixed V8.5.8 or later / GV-MFD3401 Series Dome V14.10 or later GV-MFD5301 Series V8.5.9 or later / GV-MFD2501 Series V14.10 or later GV-MDR220 V8.5 or later /...
Page 224 Compatible version of Camera Models GV-System / GV-VMS GV-EFD1100 Series V8.5.9 or later / Target Mini Fixed Dome GV-EFD2100 Series V14.10 or later Target Mini GV-EDR1100 Series V8.5.9 or later / Fixed Rugged GV-EDR2100 Series V14.10 or later Dome GV-BL2400 GV-BL3400 GV-BL1210 V8.5.6 or later /...
Page 225 DVR Configurations Compatible version of Camera Models GV-System / GV-VMS GV-UBL1211 GV-UBL2411 GV-UBL3411 V8.5.6 or later / GV-UBL1301 Series V14.10 or later GV-UBL2401 Series Ultra Bullet GV-UBL3401 Series Camera V8.5.8 or later / GV-UBL1511 V14.10 or later V8.5.9 or later / GV-UBL2511 V14.10 or later GV-EBL1100 Series...
Page 226 Compatible version of Camera Models GV-System / GV-VMS V8.6.2 (with patch files) or GV-EVD2100 later / GV-EVD3100 V14.10.1 (with patch files) Target Vandal or later Proof IP Dome V8.6.2.0 (with patch files) or later / GV-EVD5100 V15.10.1.0 or later GV-VD120D Series V8.4 (with patch files) or GV-VD220D Series later / V14.10 or later...
Page 227 DVR Configurations Compatible version Camera Models of GV-System GV-FD3400 V8.5.7 or later / V14.10 or later GV-FD3410 GV-FD1500 V8.5.8 or later / Fixed IP Dome V14.10 or later GV-FD1510 GV-FD2500 V8.5.9 or later / V14.10 or later GV-FD2510 V8.4.3 (with patch GV-CB120 Cube Camera files) or later / V14.10...
Page 228 • The maximum number of streams which the camera allows varies according to its resolution: Camera Models Max. No. of Streams GV-PTZ010D 1.3 M models except GV-PTZ010D 2 M models 3 M models 5 M models 8 M models 12 M models •...
Page 229: Setting Up An Ip Camera On Gv-System
DVR Configurations 7.1 Setting up an IP Camera on GV-System To set up the camera on the GV-System, follow these steps: Note: GV-System is not supported by the GV-IPCAM H.265 models (GV- VD3700 / 5700 and GV-BL3700 / 5700). On the main screen, click the Configure button, select System Configure, select Camera Install and click IP Camera Install.
Page 230 Click Add Camera. The dialog box appears. Figure 7-3 Type the IP address, username and password of the IP camera. Select the camera brand and device from the drop-down lists. This dialog box appears. Figure 7-4 The GV-System will automatically query for the IP camera, and the status will be indicated as “Standby”.
Page 231 DVR Configurations The options in the setup dialog box may vary depending on the camera model. Dual Stream: Click this button to set the codec type to H.264 in the main stream and to MJPEG in the sub stream, and each stream with a different resolution.
Page 232: Customizing Ip Camera Settings On Gv-System
7.1.1 Customizing IP Camera Settings on GV-System After the IP camera is connected and assigned with a display position, you can configure the camera’s settings such as frame rate, codec type and resolution. Right-click the desired camera to see the following list of options: Figure 7-6 Change Resolution: Changes the display ratio, live view resolution and record resolution...
Page 233 Recording Codec Format: Specifies whether to record in standard or GeoVision type of JPEG or H.264 codec. GIS Setting: Records the video with the GPS data. To record the GPS data, remember to also enable the GIS function of the GV- System (Configure button <...
Page 234: Setting Up Ip Cameras On Gv-Vms
7.2 Setting Up IP Cameras on GV-VMS Follow the steps below to manually connect your GV-IP Camera to GV- VMS. Note: The following instructions are based on V14.10 software and user interfaces. 1. To access the IP Device Setup page, click Home , select Toolbar , click Configure and select Camera Install.
Page 235 3. Type the IP address, username and password of the GV-IP Camera. Modify the default HTTP port 80 if necessary. 4. Select GeoVision and model name from the Brand drop-down list and select the GV-IP Camera from the Device drop-down lists. This dialog box appears.
Page 236 5. In the dialog box, configure the options which may vary depending on camera brands. Dual Streams: It is set to dual streams by default. Select this option to apply the dual-streaming settings (lower resolution for live view and higher resolution for recording) if the camera supports dual streams.
Page 237: Remote Monitoring With Multi View
DVR Configurations 7.3 Remote Monitoring with Multi View You can use the Multi View to monitor and manage the camera. Note: Multi View is not supported by GV-VMS. 7.3.1 Connecting to the IP Camera On the Multi View window, click the Edit Host button. The Edit Host window appears.
Page 238 For details on the Multi View functions, see “Multi View Viewer”, Remote Viewing, DVR User’s Manual on the Surveillance System Software DVD.
Page 239: Remote Monitoring With E-Map
DVR Configurations 7.4 Remote Monitoring with E-Map You can use the Remote E-Map to monitor and manage the camera. 7.4.1 Creating an E-Map for the IP Camera With the E-Map Editor, you can create an E-Map for the camera. The E- Map Editor is available in the two applications: Main System and E-Map Server.
Page 240 Click OK to save the settings. Expand the created host folder. Drag and drop the icons of camera and I/O devices onto the imported E-Map. Close the E-Map Editor. Click Yes when you are promoted to save the file. For details on creating an E-Map file on the E-Map Server, see “E-Map Applications”, GV-DVR User’s Manual or GV-VMS User’s Manual on the Surveillance System Software DVD.
Page 241: Connecting To The Ip Camera
DVR Configurations 7.4.2 Connecting to the IP Camera Depending on where you save the created E-Map file (DVR, E-Map Server or Control Center), the steps to open the Remote E-Map window for monitoring may vary slightly. The following is the connection example when you store the E-Map file on the DVR.
Page 242: Chapter 8 Cms Configurations
Chapter 8 CMS Configurations This section introduces the related settings to enable connecting to the camera in the central monitoring stations Center V2, Vital Sign Monitor and Dispatch Server. 8.1 Center V2 The Center V2 can monitor and manage the camera and I/O devices connected to the camera.
Page 243 CMS Configurations • To set the appropriate port for IP camera connection, click the Preference Settings button, select System Configure, click the Network tab, and select Accept connections from GV-Compact DVR, Video Server & IP Cam. Keep default port 5551, or modify it to match the Center V2 port on the IP camera.
Page 244 Manual close channel: Closes the triggered camera view manually. Close the camera view when motion stopped: Closes the triggered camera view automatically when motion stops. Post Motion: Specify the duration of the camera view remaining on the monitoring window after a motion stops. Camera send by I/O trigger will monitor: Specify the duration of the camera view remaining on the monitoring window when an I/O device is triggered.
Page 245: Vital Sign Monitor
CMS Configurations 8.2 Vital Sign Monitor The Vital Sign Monitor is designed to monitor and manage the camera and I/O devices connected to the camera under low bandwidth network. TCP/ IP IP Camera Text Data IP Camera Figure 8-4 • To set the appropriate port connecting to the IP camera, click Configure on the window menu, and select System Configure to display this dialog box.
Page 246: Dispatch Server
8.3 Dispatch Server The Dispatch Server minimizes overloading of Center V2 Servers by re- distributing the GV-IPCAM subscribers to the least busy Center V2 Server. TCP/ IP Center V2 IP Camera Video Data Text Data Dispatch Server IP Camera Center V2 Figure 8-6...
Page 247 CMS Configurations • To set the appropriate port connecting to the IP camera, click the Server Setting button on the toolbar, and select Allow GV IP devices to login as subscriber from port. Keep the default port as 5551, or modify it to match the Center V2 port on the IP camera. Figure 8-7 For further information on how to mange the video received from the IP camera, see GV-CMS Series User’s Manual on the Surveillance...
Page 248: Chapter 9 Smart Device Connection
GV-Eye. Android Smartphone, tablet, iPad, iPhone and iPod Touch are supported. For details on system requirements, installation and setup, visit our website: http://www.geovision.com.tw/english/5_4_iview.asp Note: To receive the live video from the camera, enter the TCP/IP port on your mobile phone.
Page 249: Appendix
Appendix Appendix A. Settings for Internet Explorer 8 If you use Internet Explorer 8, it is required to complete the following setting. Set the Security to Medium-high (default). Enable Allow previously unused ActiveX controls to run without prompt. Disable Only allow approved domains to use ActiveX without prompt.
Page 250: Resolution And Frame Rate
B. Resolution and Frame Rate Note that the frame rate and the performance may vary depending on the number of connections and data bitrates (different scenes). Max. Frame GV-IP Camera Stream Ratio Resolution Rate 1280 x 960 Main 16:9 1280 x 720 1280 x 1024 GV-BL1210 GV-BL1500...
Page 251 Appendix Max. Frame GV-IP Camera Stream Ratio Resolution Rate 1280 x 960 GV-UBL1301 Series 16:9 1280 x 720 GV-UBL1511 Main GV-UBX1301 Series 1280 x 1024 GV-VD120D 640 x 480 GV-VD121D 30 fps 320 x 240 GV-VD122D GV-VD123D 640 x 360 16:9 GV-VD1500 448 x 252...
Page 252 Max. Frame GV-IP Camera Stream Ratio Resolution Rate GV-BL2400 1600 x 1200 GV-BL2410 1280 x 960 GV-BL2500 Main 1920 x 1080 16:9 GV-BL2510 1280 x 720 GV-BL2510-E 1280 x 1024 GV-BX2400 Series 640 x 480 GV-BX2500 Series 320 x 240 GV-BX2600 * 640 x 360 GV-BX2400-E...
Page 253 Appendix Max. Frame GV-IP Camera Stream Ratio Resolution Rate 1280 x 960 640 x 480 320 x 240 1920 x 1080 1280 x 720 Main 16:9 GV-EBL2100 Series* 640 x 360 GV-EBX2100 Series* 448 x 252 GV-EFD2100 Series* 1280 x 1024 30 fps / GV-EDR2100 Series 640 x 512...
Page 254 Max. Frame GV-IP Camera Stream Ratio Resolution Rate 2048 x 1536 1600 x 1200 1280 x 960 640 x 480 320 x 240 1920 x 1080 Main 30 fps 1280 x 720 16:9 640 x 360 448 x 252 GV-EFD3101 1280 x 1024 GV-EVD3100 640 x 512...
Page 255 Appendix Max. Frame GV-IP Camera Stream Ratio Resolution Rate 2592 x 1944 2048 x 1536 1600 x 1200 1280 x 960 640 x 480 320 x 240 Main 30 fps 1920 x 1080 1280 x 720 16:9 640 x 360 448 x 252 GV-EFD5101 1280 x 1024...
Page 256 Max. Frame GV-IP Camera Stream Ratio Resolution Rate 4000 x 3000 15 fps 2560 x 1920 2048 x 1536 1600 x 1200 1280 x 960 Main 3840 x 2160 16.9 1920 x 1080 1280 x 720 1280 x 1024 GV-BX12201 30 fps 1024 x 768 640 x 480...
Page 257 Appendix Max. Frame GV-IP Camera Stream Ratio Resolution Rate GV-BL3400 2048 x 1536 20 fps GV-BL3410 1600 x 1200 GV-BX3400 Series Main 1280 x 960 GV-BX3400-E 1920 x 1080 GV-FD3400 16:9 1280 x 720 GV-FD3410* 1280 x 1024 GV-MDR320 GV-MDR3400 Series 640 x 480 GV-MFD3401 Series 320 x 240...
Page 258 Max. Frame GV-IP Camera Stream Ratio Resolution Rate 2560 x 1920 10 fps 2048 x 1536 20 fps 1600 x 1200 GV-BL5310 Main 1280 x 960 GV-BL5310-E GV-BX5300 Series 1920 x 1080 16:9 1280 x 720 GV-BX5300-E GV-MDR520 1280 x 1024 GV-MDR5300 Series 30 fps 640 x 480...
Page 259 Appendix Max. Frame GV-IP Camera Stream Ratio Resolution Rate 1600 x 1200 1280 x 960 Main 1920 x 1080 16:9 1280 x 720 30 fps 1280 x 1024 GV-UNP2500 640 x 480 320 x 240 640 x 360 16:9 448 x 252 640 x 512 320 x 256 Max.
Page 260 Max. Frame GV-IP Camera Stream Ratio Resolution Rate 2592 x 1944 2048 x 1536 1600 x 1200 1280 x 960 640 x 480 2592 x 1520 Main 2304 x 1296 1920 x 1080 16:9 1280 x 720 GV-VD5700 30 fps 640 x 360 GV-BL5700 1280 x 1024...
Page 261: Support Lists
Appendix C. Support Lists • Support List for GV-Backup Center, GV-Video Gateway and GV- Recording Server GV-IP Camera Model Supported Version GV-BX2400 Series V1.15 or later GV-BX3400 Series GV-BX5300 Series GV-BX12201 V1.12 or later for Box Camera GV-Backup Center / V1.2.6.0 or later for GV-Video Gateway and GV-Recording...
Page 262 GV-IP Camera Model Supported Version PTZ Camera GV-PTZ010D V1.08 or later GV-VD120D Series Vandal Proof IP V1.03 or later GV-VD220D Series Dome GV-VD320D Series GV-VD3700 *Vandal Proof IP V1.12 or later for GV- Dome (H.265) Backup Center GV-VD5700 GV-CB120 Cube Camera V1.03 or later GV-CB220 GV-CA120...
Page 263 Appendix • Support List for Transmit Audio GV-IP Camera Model Supported Version GV-BX1200 Series GV-BX2400 Series Box Camera V1.15 or later GV-BX3400 Series GV-BX5300 Series GV-MDR220 Mini Fixed Rugged GV-MDR320 V1.07 or later Dome GV-MDR520 PTZ Camera GV-PTZ010D V1.08 or later GV-VD120D Series Vandal Proof IP Dome GV-VD220D Series...
Page 264 • Support List for System Log GV-IP Camera Model Supported Version GV-BX1200 Series GV-BX2400 Series Box Camera GV-BX3400 Series V1.15 or later GV-BX5300 Series GV-MDR220 Mini Fixed Rugged GV-MDR320 V1.11 or later Dome GV-MDR520 PTZ Camera GV-PTZ010D V1.08 or later GV-VD120D Series Vandal Proof IP Dome V1.11 or later...
Page 265: Rtsp Protocol Command
Appendix D. RTSP Protocol Command The GV-IPCAM H.264 can support RTSP protocol for both audio and video streaming. If you use the QuickTime player, enter: rtsp://<IP of the GV-IPCAM H.264:8554/<CH No.>.sdp For example, rtsp://192.168.3.111:8554/CH001.sdp If you use the VLC, and if authentication is required, enter: rtsp://username:password@<IP of the GV-IPCAM H.264:8554/<CH No.>.sdp For example, rtsp://admin:admin@192.168.3.111:8554/CH001.sdp...
Page 266: Supported Umts Protocol (3G Modem)
E. Supported UMTS Protocol (3G Modem) Brand Model Huawei E220, E392 E169, E1692, E156, EC189, E1752, E1756, E1756C, E169C Novatel MC998D USB760, USB727, MC950D ONDA MSA523HS MF100...
Page 267: Dual Stream Support List
Appendix F. Dual Stream Support List The table lists the firmware versions of GV-IP Cameras that support dual stream and the default resolutions after the camera is added to GV-System. Resolution Supported GV-IP Camera Firmware Main Stream Sub Stream Version (H.264) (MJPEG) GV-BX1200 Series...
Page 268 Resolution Supported Firmware GV-IP Camera Main Stream Sub Stream Version (H.264) (MJPEG) GV-BX2400 Series V1.15 or later GV-MDR220 V1.07 or later GV-VD220D GV-VD221D V1.02 or later GV-VD222D 1920 x 1080 448 x 252 GV-VD223D GV-CB220 V1.03 or later GV-CA220 V1.15 or later GV-CAW220...
Page 269 Appendix Resolution Supported Firmware GV-IP Camera Main Stream Sub Stream Version (H.264) (MJPEG) GV-BX3400 Series V1.15 or later GV-MDR320 V1.07 or later GV-VD320D 2048 x 1536 320 x 240 GV-VD321D V1.02 or later GV-VD322D GV-VD323D GV-BX5300 Series V1.15 or later 2560 x 1920 320 x 240 GV-MDR520...
Page 270: The Cgi Command
G. The CGI Command Please note the supported version of the CGI command in different models: GV-IP Camera Supported Version GV-PTZ010D V1.07 or later GV-VD120D / 121D / 122D / 123D GV-VD220D / 221D / 222D / 223D V1.02 or later GV-VD320D / 321D / 322D / 323D GV-CB120 / 220 V1.03 or later...
Page 271 Appendix To obtain a snapshot of the live view, type the following into your web browser: http://192.168.2.11/PictureCatch.cgi?username=admin&password=admin& channel=1 To access the User Account Web interface, type the following into your web browser: http://192.168.2.11/ConfigPage.cgi?username=admin&password=admin&p age=UserSetting Note: For GV-BX12201, if you use the CGI command to obtain a snapshot, the images stem from the live view of Stream 2 with the maximum resolution of 1 MP.
Page 272: Power Supply Support List
H. Power Supply Support List The supported power type is indicated with a tick ( ) and the unsupported power type with a cross ( ). GV-IP Camera DC Power AC Power Box Camera Ultra Box Camera Target Box Camera GV-BX1500-E GV-BX2400-E GV-BX3400-E...
Page 273 Appendix GV-IP Camera DC Power AC Power All except GV-BL2510-E GV-BL5310-E Bullet Camera GV-BL2510-E GV-BL5310-E Bullet Camera (H.265) Ultra Bullet Camera Target Bullet Camera PTZ Camera PT Camera Vandal Proof IP Dome Vandal Proof IP Dome (H.265) Fixed IP Dome Cube Camera GV-CA120/220 Advanced...
Page 274: Supported Firmware For Flash Memory
I. Supported Firmware for Flash Memory The 128 MB flash memory is supported in V1.09 or later in all models of GV-IPCam H.264 Series except GV-PTZ010D. To look up if the camera contains a 128 MB type flash memory, access the web interface or the GV IP Device Utility: Web Interface Click Management and click Tools.
Page 275: How To Remotely Reboot Ip Cameras Via Ftp
Appendix J. How to Remotely Reboot IP Cameras via Note this function is only available for GV-BX12201 firmware V1.02 or later. Enable Act as FTP server under FTP, Events and Alerts. In CMD.exe, type ftp <IP address of the camera>, e.g. 192.168.0.10.

This manual is also suitable for:

Gv-bx2600 Gv-bx2400-2f Gv-bx2500-8f Gv-bx1500-8f Gv-bx3400-8f Gv-bx1500-3v ... Show all

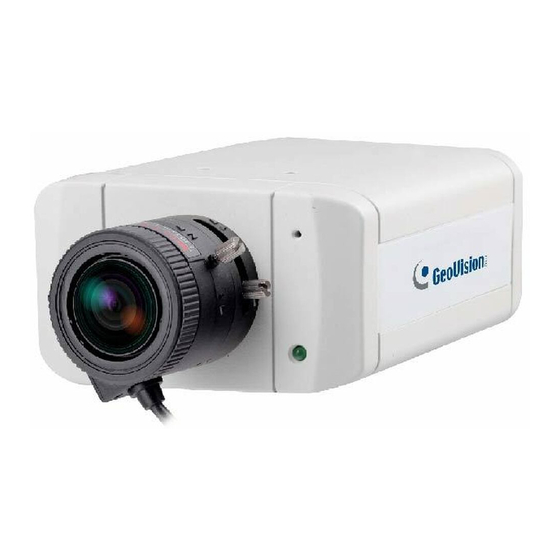

GeoVision GV-BX2400-1F Firmware User Manual

Preface

Naming and Definition

Note for Connecting to GV-System / GV-VMS

Note for Recording

Note for GV-BX2600

Note for GV-EVD5100 / EFD5101

Chapter 1 Introduction

System Requirement

Chapter 2 Getting Started

Accessing the Live View

Adjusting Image Clarity

Configuring the Basics

Chapter 3 Accessing the Camera

Accessing Your Surveillance Images

Functions Featured on the Main Page

Chapter 4 Administrator Mode

Video and Motion

Video Analysis

I/O Settings

Events and Alerts

Monitoring

Recording Schedule

Remote Viewlog

Network

Management

Chapter 5 Recording and Playback

Chapter 6 Advanced Applications

Upgrading System Firmware

Backing up and Restoring Settings

Changing Password

Verifying Watermark

Downloading Videos from the Micro SD Card

Chapter 7 DVR Configurations

Setting up an IP Camera on GV-System

Setting up IP Cameras on GV-VMS

Remote Monitoring with Multi View

Remote Monitoring with E-Map

Chapter 8 CMS Configurations

Center V2

Vital Sign Monitor

Chapter 9 Smart Device Connection

Appendix

Settings for Internet Explorer 8

Resolution and Frame Rate

Support Lists

RTSP Protocol Command

Supported UMTS Protocol (3G Modem)

Dual Stream Support List

The CGI Command

Power Supply Support List

Supported Firmware for Flash Memory

How to Remotely Reboot IP Cameras Via FTP

Quick Links

Need help?

Questions and answers

Related Manuals for GeoVision GV-BX2400-1F

Summary of Contents for GeoVision GV-BX2400-1F
