REED R5015 Instruction Manual

True rmsma clamp meter
Hide thumbs

Advertisement

Quick Links

Download this manual

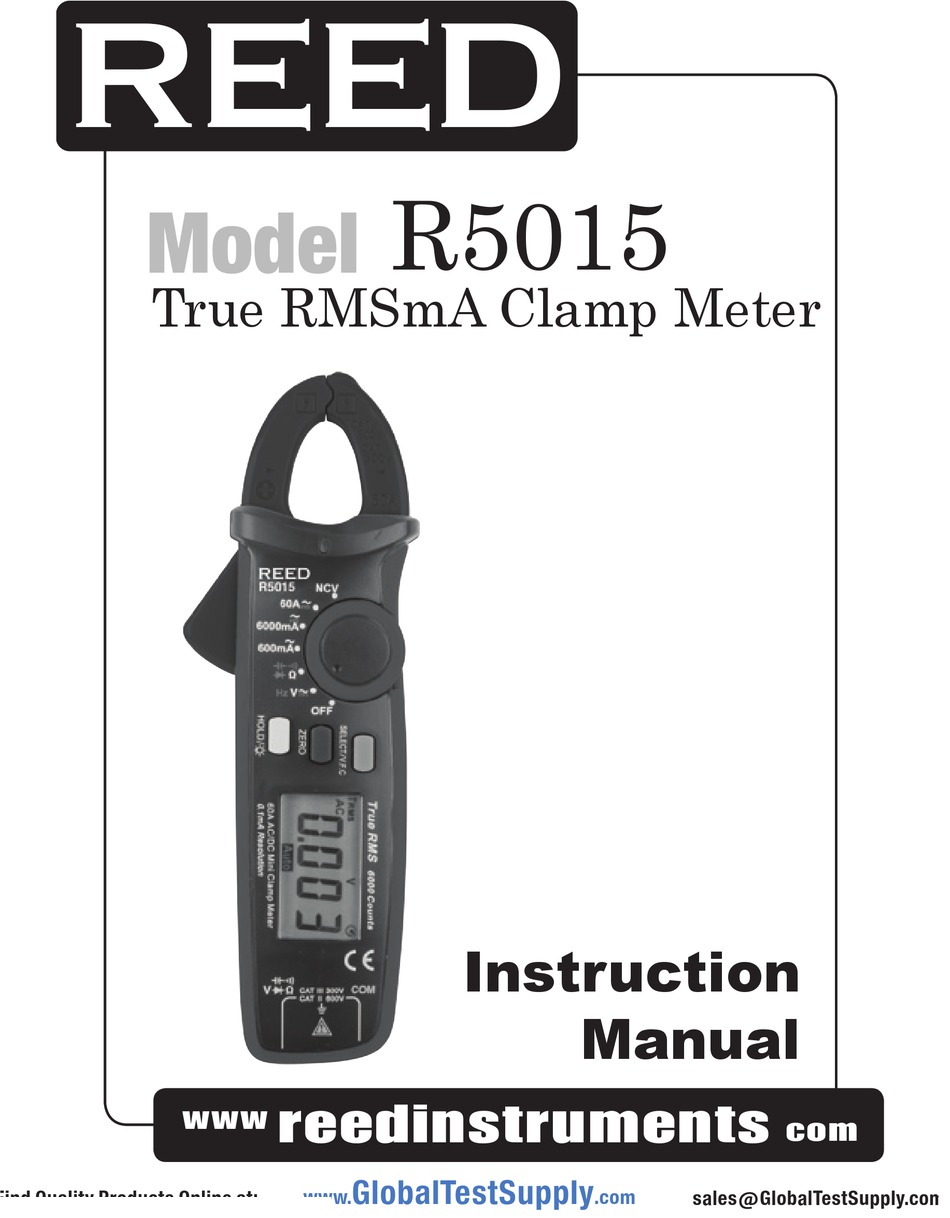

INSTRUMENTS
INSTRUMENTS
R5015
Model
True RMSmA Clamp Meter
Instruction
Manual
reedinstruments
www
com
GlobalTestSupply
www.
.com
Find Quality Products Online at:
sales@GlobalTestSupply.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the R5015 and is the answer not in the manual?

Questions and answers

Related Manuals for REED R5015

Summary of Contents for REED R5015

  • Page 1 INSTRUMENTS INSTRUMENTS R5015 Model True RMSmA Clamp Meter Instruction Manual reedinstruments GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...

  • Page 2: Table Of Contents

    Table of Contents Safety ......................2 Features .......................3 Specifications ..................3-5 Electrical Symbols ..................6 Product Description ..................6 LCD Description ..................7 Operating Instructions ................8-11 Battery Replacement .................11 Safety The unit complies with CE/ETL certification (EN61010-1, EN61010-2-30, and EN61010-2-32), CAT II 600V & CAT III 300V overload protection. Please read the manual carefully before use.

  • Page 3: Features

    Features • Measures AC/DC current/voltage, resistance and capacitance • High resolution 0.1mA (AC) and 1mA (DC) • True RMS for AC current/voltage • 6000-count backlit LCD display • Built-in non-contact voltage detector with LED indicator • V.F.C (variable frequency control) mode for air-conditioner maintenance and diagnostics • Low battery and over range indicators • Diode test and continuity check functions • Durable double molded plastic housing • Cat. II 600V & CAT III 300V safety rating • Auto shut-off • Includes test leads, batteries and carrying case Specifications AC/DC Current Range AC: 600mA, 6000mA, 60A / V.F.C 600mA-60A DC: 6000mA, 60A Accuracy AC (@ 50/60Hz): 600mA ±(1.5% rdg.
  • Page 4 AC/DC Voltage Range AC: 6, 60, 600V / V.F.C 200-600V DC: 600mV, 6, 60, 600V Accuracy AC: ±(0.8% rdg. +3 dgt.) / ±(4.0% rdg. +3 dgt.) DC: 600mV ±(0.7% rdg. +5 dgt.) ±(0.7% rdg. +3 dgt.) Resolution AC: 1mV, 10mV, 0.1V, 1V / 0.1V DC: 10µV, 1mV, 10mV, 0.1V Resistance Range...
  • Page 5 Overrange Indicator Continuity Check Audible signal if resistance <10Ω Non-Contact Voltage Detector Autoshut off Yes (after 15 mins) Power Supply 2 AAA Batteries Low Battery Indicator Jaw Opening 0.67” (17mm) Overvoltage Category CAT. II 600V, CAT. III 300V Product Certifications CE, ETL, RoHS Operating Temperature 32 to 104°F (0 to 40°C) Storage Temperature 14 to 122°F (-10 to 50°C) Dimensions 6.9x 2.4 x 1.3” (175 x 60 x 33.5 mm) Weight 6oz (170g) Overload protection: 100A • Accuracy guarantee scale: 5~100% of measuring range, <20 digit residual reading is allowed for 600mA open circuit. • AC crest factor may reach 3.0 at 4,000 counts; for non-sinusoidal waveform, the error of crest factor increases with the following formula: a.

  • Page 6: Electrical Symbols

    Electrical Symbols Product Description 1. Clamp Jaws 2. Clamp Trigger (Press the trigger to open the clamp) 3. Non Contact Voltage Indicator 4. Function Button (Change from ACV/DCV/Hz, Resistance Ω/Diode/Capacity, Current ACA/DCA, NCV, Off) 5. HOLD/Backlight Button (To keep the current measurement on the screen / Hold button for 2 seconds for backlight to turn on) 6. ZERO Button (Return DCA to zero, measure the relative value of capacity &...

  • Page 7: Lcd Description

    LCD Description INSTRUMENTS reedinstruments INSTRUMENTS GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...

  • Page 8: Operating Instructions

    Operating Instructions Measuring AC/DC voltage/HZ 1. Select AC voltage and Hz or DC voltage. 2. Insert the red probe in the red jack (positive terminal) and black probe in the black jack (COM terminal). 3. Touch the red and black probe to item under test. 4. The value will appear on the LCD. Note: Do not exceed 600V (AC/DC) as there is a risk of electric shock and potential damage to the instrument that may occur. Measure Resistance/Diode/Circuit On/Off/Capacity • Insert the red probe in the red jack (positive terminal) and black probe in the black jack (COM terminal).
  • Page 9 Measuring AC/DC Current AC current • Select your desired range for AC current (600mA~, 6,000mA~, 60A~). Open the clamp head and attach the wire on the hook. Ensure that the hooks are firmly closed. Value will display on the LCD. DC current • Press the SELECT button and enter in the DC current range (6,000mA, 60A). Press the ZERO button to bring the reading back to zero. Press it multiple times if pressing it once doesn’t work. Open the clamp head and attach the wire on the hook. Ensure that the hooks are firmly closed. Value will display on the LCD. NOTE: Pull out the testing probe to avoid electric shock. The clamp should be in the same direction as the measured object in process of zeroing obtain accurate reading because of the product’s high sensitivity.
  • Page 10 Measuring Non-Contact Field Measurement To measure the detected AV voltage or magnetic field close the clamp around the object to detect the motion. The analog quantity is “EF” when it is ≤ critical voltage and will display as “———“, different variations of buzzing will distinguish the intensity of detected field. Note: When the unit is in NVC measurement mode, pull out the testing probe to avoid electric shock. Backlight Press the HOLD button for 2 seconds to turn on the LCD backlight. Automatically Turns Off If the unit is left unused for 15 minutes it will automatically turn off to save power.

  • Page 11: Battery Replacement

    2. Remove the battery cover with a screwdriver. 3. Install two new AAA batteries. 4. Replace the cover and screw in the battery cover. For service on this or any other REED product or information on other REED products, contact REED Instruments at info@reedinstruments.com. INSTRUMENTS reedinstruments INSTRUMENTS GlobalTestSupply www.
  • Page 12 Notes _________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ INSTRUMENTS reedinstruments INSTRUMENTS GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
