REED R5007 Instruction Manual

True rms digital multimeter
Hide thumbs Also See for R5007:
Table of Contents

Advertisement

Quick Links

Download this manual

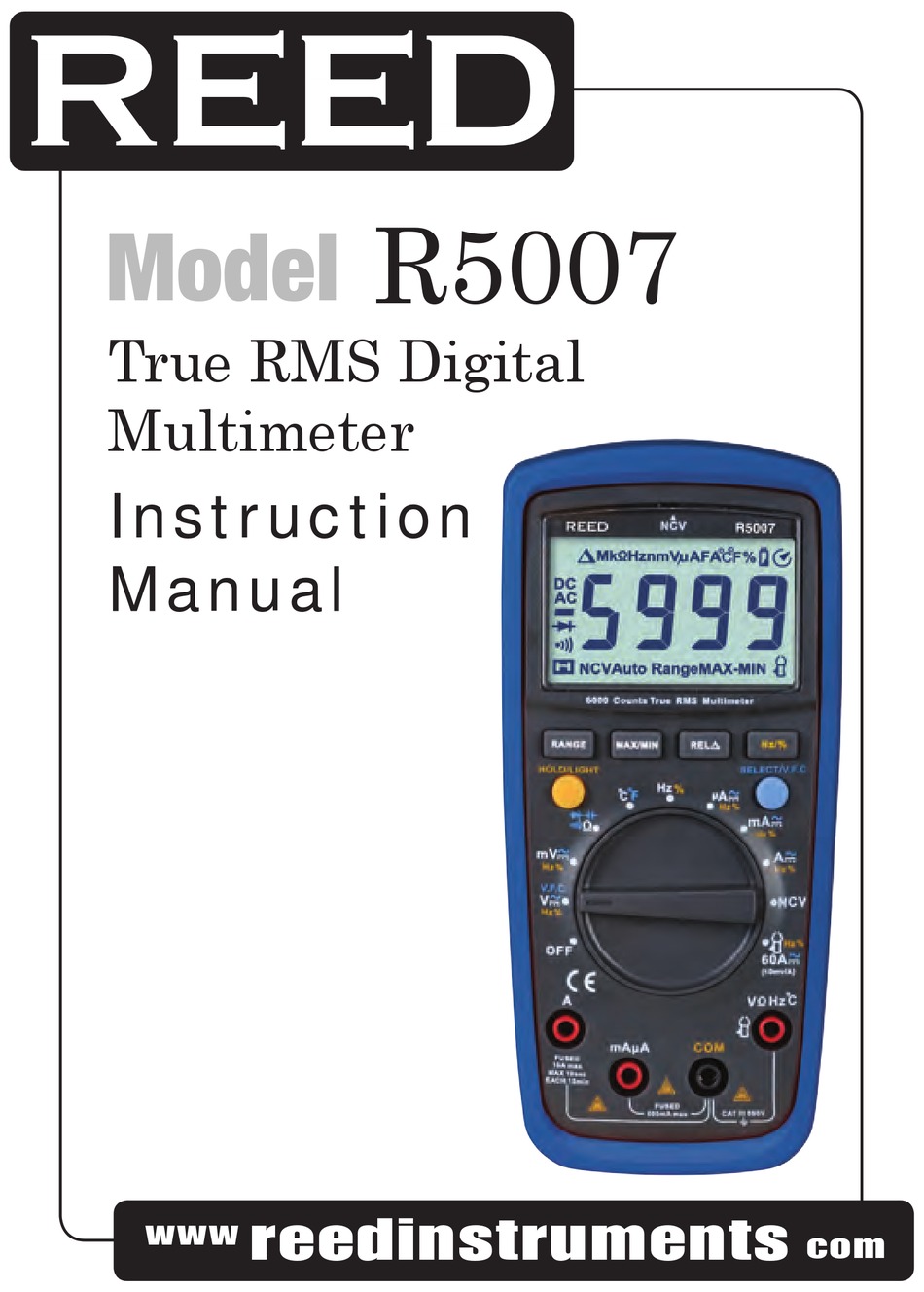

Model
Pantone 534 Blue - 100/80/30/5
True RMS Digital
Pantone 485 Red - 10/100/100/5
Pantone 123 Yellow - 0/27/100/
Multimeter
Instruction
Manual
www
R5007
reedinstruments
Black
com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the R5007 and is the answer not in the manual?

Questions and answers

Related Manuals for REED R5007

Summary of Contents for REED R5007

  • Page 1 Black R5007 Model Pantone 534 Blue - 100/80/30/5 True RMS Digital Pantone 485 Red - 10/100/100/5 Pantone 123 Yellow - 0/27/100/ Multimeter Instruction Manual reedinstruments...

  • Page 2: Table Of Contents

    Table of Contents Safety .................... 3 Features ..................3 Specifications ................3-5 Instrument Description ..............6 Operating Instructions ..............7-11 AC/DC Voltage Measurements ........... 7 Resistance Measurements ............7 Circuit On/Off Measurement ............8 Diode Measurements ..............8 Capacitance Measurements ............8 Frequency/Duty Ratio Measurements .........

  • Page 3: Safety

    Safety • Designed in compliance with the following: IEC/EN61010-1, Pollution Grade II, Overvoltage CATIII600V and Double Insulation • Take caution when measuring Voltages above 60DC or 30AC RMS Features • Measures AC/DC Voltage, AC/DC Current, Variable Frequency Voltage (VFC), Resistance, Capacitance, Frequency Ratio, Non-Contact AC Voltage Sensing (NCV), Clamp Meter measurements (with optional clamp meter) and Temperature •...
  • Page 4 Measurement Specifications Function Range Resolution Accuracy 60.00mV 10µV ±(0.5% rdg + 2 dgts) 600.0mV 0.1mV 6.000V DC Voltage 60.00V 10mV ±(0.7% rdg + 3 dgts) 600.0V 0.1V 600V 60.00mV 10µV ±(1.0% rdg + 3 dgts) 600.0mV 0.1mV 6.000V AC Voltage 60.00V 10mV ±(0.8% rdg + 3 dgts)
  • Page 5 Measurement Specifications Cont. Function Range Resolution Accuracy 600.0Ω 0.1Ω ±(1.0% rdg + 2 dgts) 6.000KΩ 1Ω 60.00KΩ 10Ω ±(0.8% rdg + 2 dgts) Resistance 600.0KΩ 100Ω 6.000MΩ 1kΩ ±(1.2% rdg + 3 dgts) 60.00MΩ 10KΩ ±(1.5% rdg + 5 dgts) 9.999nF Under REL (±4%+10) 99.99nF to...

  • Page 6: Instrument Description

    Instrument Description LCD Screen REL Button HZ/% Button SELECT/VFC Button VΩHz Input COM Input mAµA Input A Input Function Switch 10. HOLD/LIGHT Button 11. RANGE Button 12. MAX/MIN Button Display Description Relative Icon Units of Measurement Low Battery Icon Auto-Power Off 6000 Count Display Current Clamp Icon MAX/MIN Icon...

  • Page 7: Operating Instructions

    Operating Instructions AC/DC Voltage Measurements Set the Function Switch to the V or mV position. Insert the Red test lead to the VΩHz% Input and the Black test lead in the COM Input. Press the RANGE Button to select the range manually. Start from a higher range if you are not sure about the flow under test.

  • Page 8: Circuit On/Off Measurement

    Circuit On/Off Measurement Set the Function Switch to the Ω position. Insert the Red test lead to the VΩHz% Input and the Black test lead in the COM Input. Turn the circuit power off and discharge all residual charges to ensure accuracy.

  • Page 9: Frequency/Duty Ratio Measurements

    Frequency/Duty Ratio Measurements Set the Function Switch to the HZ position. Press the Hz/% button for Frequency measurements. Insert the Red test lead to the VΩHz% Input and the Black test lead in the COM Input. Connect the test leads to the load under test. Read the results on the LCD.

  • Page 10: Current Clamp Measurements

    Current Clamp Measurements Note, the Optional Clamp Meter is required to make Current Clamp Measurements. Set the Function Switch to the 60A position. Insert the Red wire into from the Clamp Meter into the VΩHz% Input and the Black wire into the COM Input. Press the jaw trigger on the Clamp Meter and place it around one wire to be measured.

  • Page 11: Auto Power Off

    Unscrew the rear cover and remove from the meter. Replace the dead batteries with new ones. Be sure to fully reassemble the meter before turning it on. For service (repairs or calibration) on this or any other REED product or information on other REED products, contact REED Instruments at info@reedinstruments.com...
  • Page 12 Notes _________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ Blue - 100/80/30/5 Pantone 534 Blue Yellow - 0/27/100/0 Pantone 123 Yellow ________________________________________________ Red - 10/100/100/5 Pantone 485 Red Yellow - 0/27/100/0 Pantone 123 Yellow Blue - 100/80/30/5 Pantone 534 Blue...
