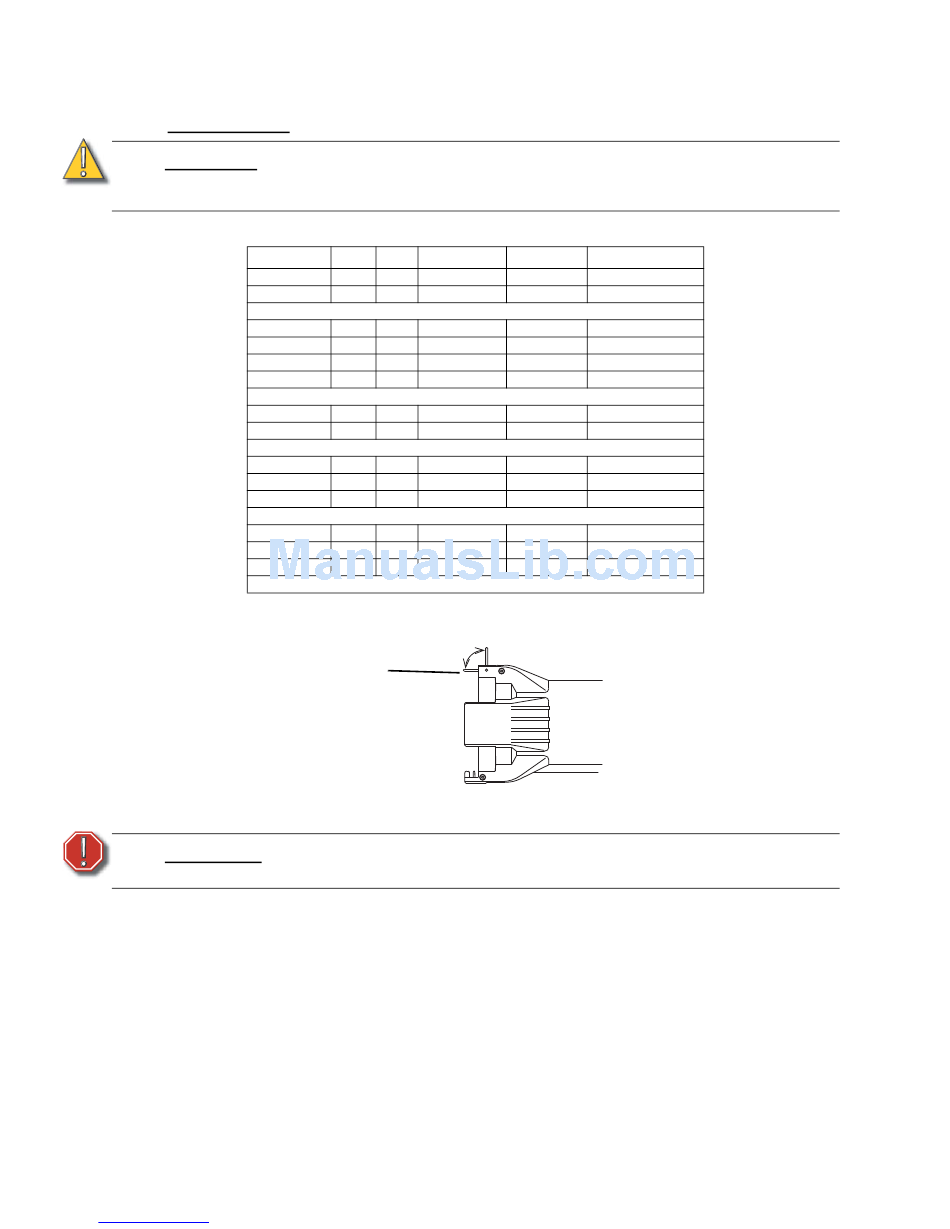

F i x t u r e i n f o r m a t i o n
H P L l a m p t a b l e
C A U T I O N :
C o l o r f r a m e h o l d e r
The color frame holder is equipped with a spring-loaded retaining clip that prevents color frames
and accessories from falling out. See
W A R N I N G :
Step 1:
Step 2:
2
Downloaded from www.Manualslib.com
The Source Four jr is rated for 575w maximum lamp. Do not use lamps other than
the HPL in Source Four fixtures. Use of lamps other than HPL or greater than
575w will void your warranty.
Lamp code Watts Volts Initial Lumen Color temp. Average rated life
HPL 550/77* 550 77
HPL 550/77X* 550 77
HPL 575/115 575 115
HPL 575/115X 575 115
HPL 375/115 375 115
HPL 375/115X 375 115
HPL 575/120 575 120
HPL 575/120X 575 120
HPL 575/230 575 230
HPL 575/230X 575 230
HPL 375/230X 375 230
HPL 575/240 575 240
HPL 575/240X 575 240
HPL 375/240X 375 240
* To be used with ETC Dimmer Doubler™
Retaining clip
Make sure all color frame accessories are locked in position with the
retaining clip before hanging the Source Four.
Release the retaining clip by pushing it sideways while gently pulling backwards.
Insert the color frame.
manuals search engine
16,170 3,250°
12,160 3,050°
16,520 3,250°K
12,360 3,050°K
10,540 3,250°K
8,000 3,050°K
16,520 3,250°K
12,360 3,050°K
14,900 3,200°K
11,780 3,050°K
7,250 3,000°K
14,900 3,050°K
11,780 3,050°K
7,250 3,000°K
Figure 2.
300 hours
2000 hours
300 hours
2000 hours
300 hours
1000 hours
300 hours
2000 hours
400 hours
1500 hours
1000 hours
400 hours
1500 hours
1000 hours
Figure 2
