S e t t i n g t h e a n g l e w i t h i n t h e y o k e
Step 1:
Step 2:
Step 3:
8
Downloaded from
www.Manualslib.com
Yoke locking knob
Loosen the yoke locking knobs (see
Tilt the fixture to the desired position.
Tighten the yoke locking knobs to secure in position.
manuals search engine

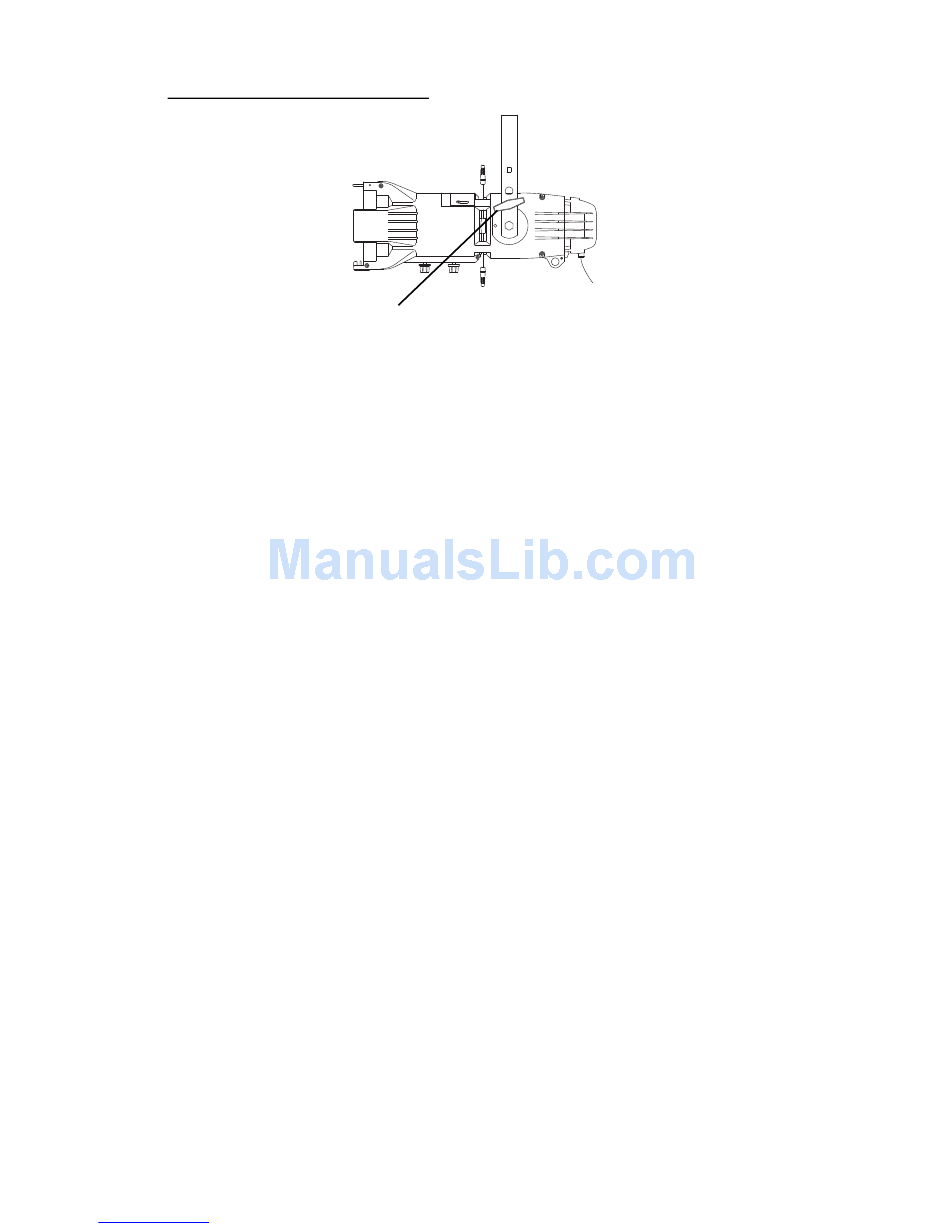

Figure 11
Figure
11). Do not remove them.
Source Four jr / jr Zoom User Manual
