Lens and Reflector

S w i t c h i n g l e n s a s s e m b l i e s
Follow these procedures to replace a fixed field lens with Zoom lens.
Step 1:
Step 2:
Step 3:
Step 4:
Step 5:
Step 6:
N o t e :
Downloaded from www.Manualslib.com

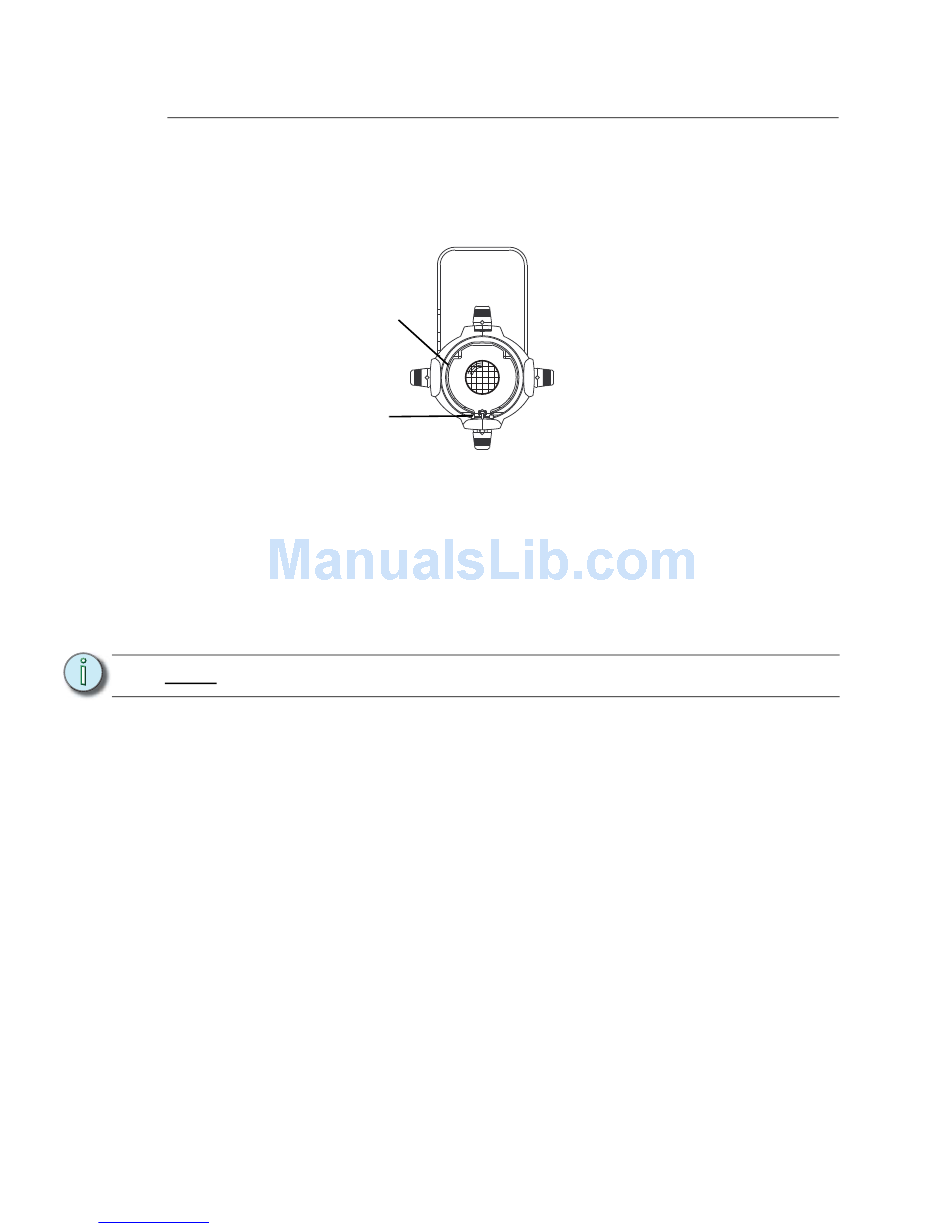

Lens tray
Light baffle and
retaining screw
Loosen the screw at the front of the baffle. See
Pull the light baffle out of the barrel.
Remove the beam focus knob from the bottom of the barrel and slide the lens assembly
from the barrel.
Slide the Zoom lens rear assembly into the barrel and install its beam focus knob.
Slide the Zoom lens front assembly into the barrel and install its beam focus knob.
Reinstall the light baffle and secure it with the retaining screw.
Reverse steps 1-6 to replace Zoom lens with a standard lens.
manuals search engine
Figure 12
Figure 12.
