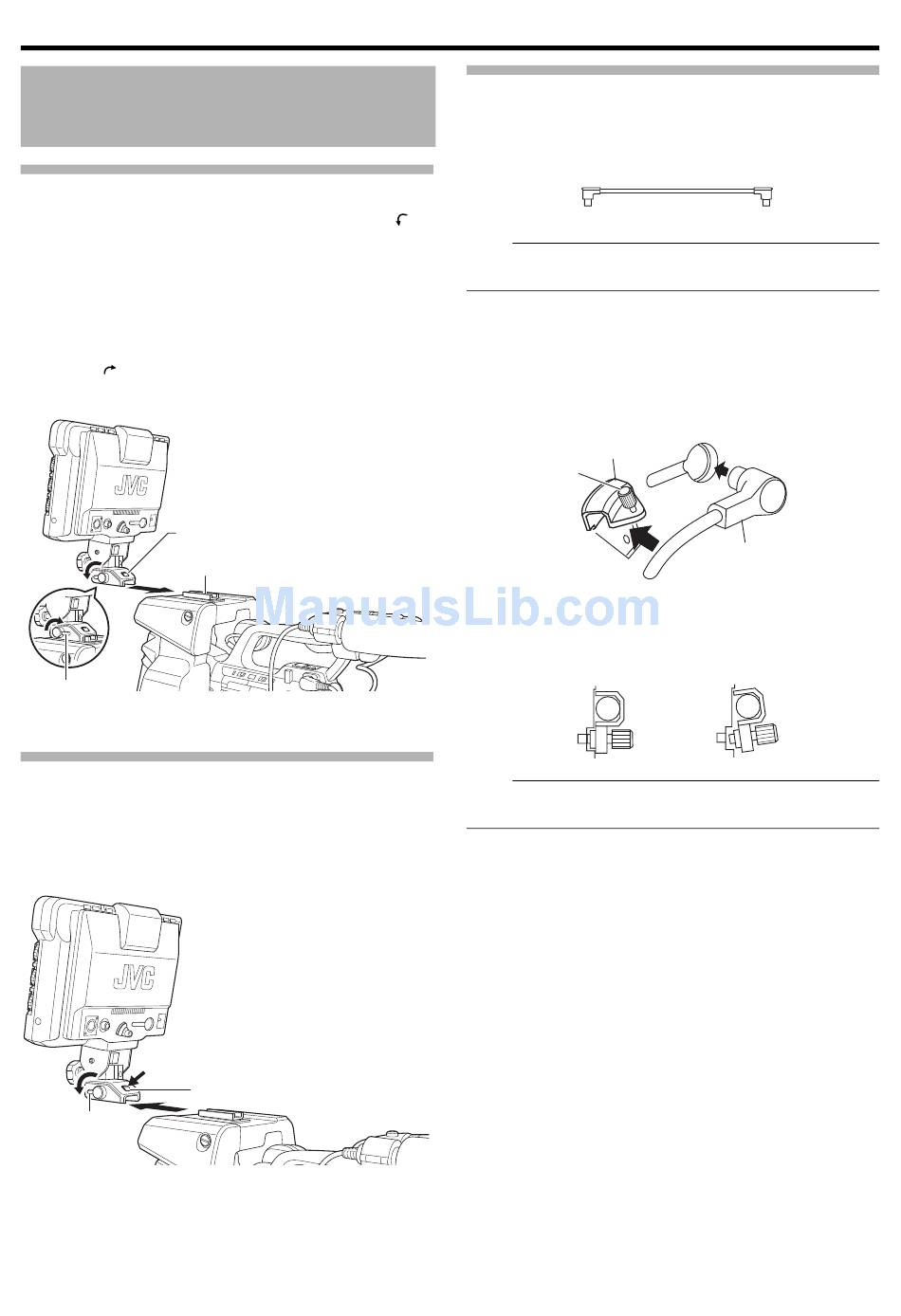

Setup

Installation

Mounting on KA-790G

1
Rotate the lock lever in the arrow direction ( )
as shown in the diagram below.
2
Align the bracket for viewfinder mount on top of
KA-790G with the groove at the viewfinder mount
base and insert from the back of the camera head.
3
Rotate the viewfinder lock lever in the arrow
direction ( ) as shown below and secure the
viewfinder to KA-790G.
Mount Base
1
Bracket for Viewfinder Mount
2
3
Lock Lever

Removing the Viewfinder

1
While pressing the Release button, slide the
viewfinder toward the back of the camera head and
remove.
2
Push
1
Lock Lever
Release Button

Connecting VF Cable

Before connecting the VF cable, be sure to turn off the
POWER switch on the camera or on the remote control unit.
Connect the viewfinder's [VF CABLE] terminal to the [VF]
terminal of the GY-HM790 series with the provided VF cable.
VF Cable
Note ：
● Be sure to use the cable provided with this viewfinder.
The cable provided with VF-HP840U cannot be used.
1
Insert the provided VF cable fully to the [VF
CABLE] terminal.
2
Loosen the set screw on the cable holder, tilt the
holder at an angle and insert the VF cable from the
bottom into the groove on the holder.
Cable Holder
Set Screw
3
Press the cable holder squarely against the
viewfinder and secure the set screw.
If the cable holder is slanted, the set screw cannot be secured
and it may damage the screw hole on the viewfinder.
(Good)
Note ：
● Be sure to turn off the viewfinder and the camera before
connecting or disconnecting the cable.
VF Cable
(No good)
5
