Others

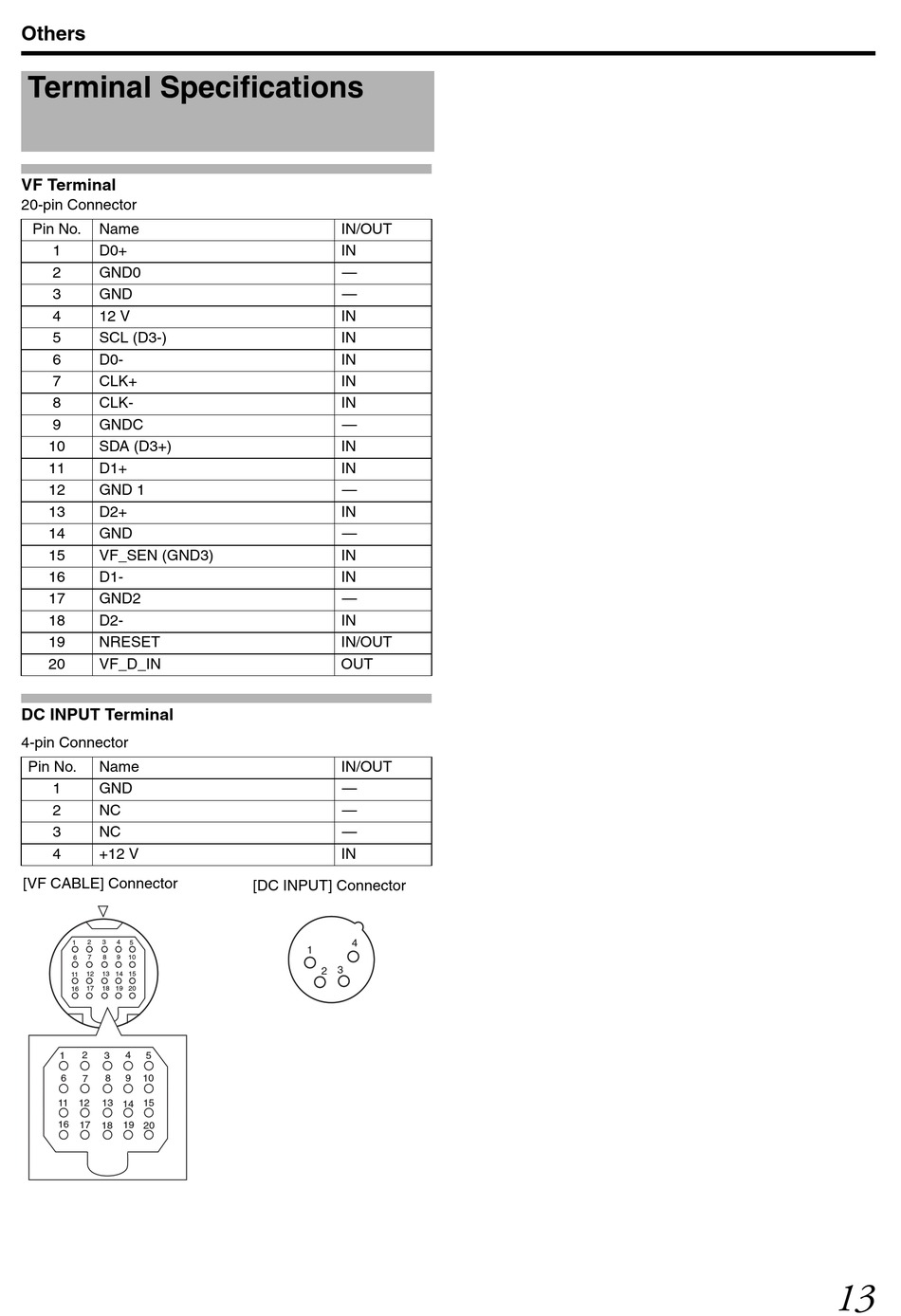

Terminal Specifications

VF Terminal
20-pin Connector
Pin No. Name
1 D0+
2 GND0
3 GND
4 12 V
5 SCL (D3-)
6 D0-
7 CLK+
8 CLK-
9 GNDC
10 SDA (D3+)
11 D1+
12 GND 1
13 D2+
14 GND
15 VF_SEN (GND3)
16 D1-
17 GND2
18 D2-
19 NRESET
20 VF_D_IN
DC INPUT Terminal
4-pin Connector
Pin No. Name
1 GND
2 NC
3 NC
4 +12 V
[VF CABLE] Connector
2 3 4
1 5
7 8 9 10
6
11 12 13 14 15
17 18 19 20
16
1 2 3 4 5
6 8 9 10
7
11 12 13 14 15
16
17 18 19 20
IN/OUT
IN
^
^
IN
IN
IN
IN
IN
^
IN
IN
^
IN
^
IN
IN
^
IN
IN/OUT
OUT
IN/OUT
^
^
^
IN
[DC INPUT] Connector
4
1
2 3
13
