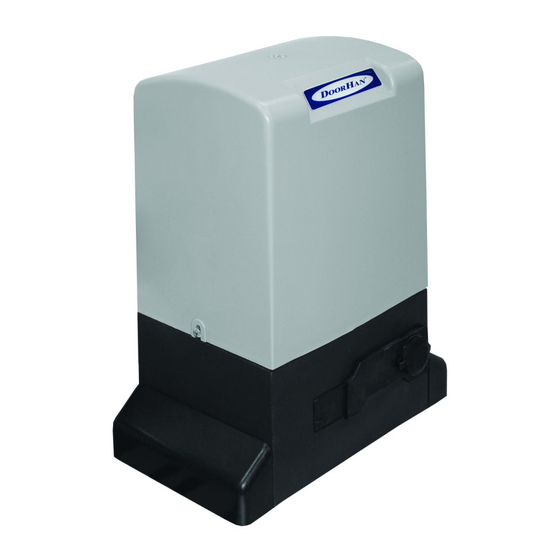

DoorHan SLIDING-1300 Installation And Operating Manual
Hide thumbs
Also See for SLIDING-1300:
- Installation and operating manual (16 pages) ,
- Installation and operation manual (12 pages)
Table of Contents
Advertisement
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for DoorHan SLIDING-1300
Summary of Contents for DoorHan SLIDING-1300
- Page 1 InstallatIon and operatIng Manual for slIdIng-1300/2100...
-
Page 2: Table Of Contents
Contents 1. Contents ..........................2 2. general safety instructions for installation and maintenance ..........3 3. tools materials ........................3 4. Warnings for the installer .......................4 5. Functions ..........................4 6. technical specifications ......................5 7. dimensions ..........................5 8. Components set ........................5 9. assembly ..........................6 10. -
Page 3: General Safety Instructions For Installation And Maintenance
GeneRAL sAFetY InstRUCtIons FoR InstALLAtIon AnD MAIntenAnCe 2. GENERAL SAFETY INSTRUCTIONS FOR INSTALLATION AND MAINTENANCE • For an efficient and safe automated door, correctly observe the installation procedures and instructions for use. • Incorrect installation and use can cause serious damage to persons and property. • Carefully read the whole installation manual before you begin installing. -
Page 4: Warnings For The Installer
intended. -
Page 5: Technical Specifications
6. TECHNICAL SPECIFICATIONS the table 1. Main technical parameters sliding-1300(2100) Model SLIDING-1300 SLIDING-2100 Power supply Absorbed power (W) Reduction ratio 1:32 Rack М4x12,566 mm Type of pinion 1350 Max. linear force (N ) 27,5 Max. output torque (N•m ) -
Page 6: Assembly
AsseMBLY 9. ASSEMBLY Preliminary checks For safe and effective work of a drive observe following conditions: the design of a gate should provide installation of automatics. the ground should be strong enough and stable for installation of the assembly basis of a drive. -
Page 7: Adjustment The Limit Switch
11. Adjustment the limit switch an operator slIdIng-1300 (2100) is equipped magnetic contacts which react on moving of the magnet installed on rack, also a command on a stop of gate. Installed trailer magnets in the following sequence: 1.unblock a drive (look “emergency manual release lever”). -
Page 8: Control Board
ContRoL BoARD 13.Control Board Technical specifications power supply 230 V~ ( +6% -10%) - 50 Hz absorbed power 10 W Motor max. load 800 W accessories max. load 0,5 a electric lock max. load 15 Va operating ambient temperature -20 °C +55 °C protection fuses 2 (see fig. - Page 9 PRoGRAMMInG The description of sockets of electric connections. ~220 (N, L, PE) the socket on the block serves for connection to the block of pressure of a food pe: earth connection n: a Food (neutral) l: a Food (phase) MOTOR (N, L1, L2) the socket on the block serves for connection to the electric motor block LAMP the socket on the block serves for connection of an alarm lamp 230V, max.
-
Page 10: Electrical Connections
14. Electrical connections IMPORTANT: Before attempting any work on the board (connections, maintenance), always cut off power. Opening photocells connection If you use photocells (DoorHan) set jumper in NC Radio Closing photocells connection Capacitor... -
Page 11: Programming
(doorHan) does not handle direct control of installation, maintenance and operation of the doors and the automatics and shall not be responsible for safety of installation, maintenance and operation of the doors, road gates and the automatics. - Page 12 We hope you will be satisfied with the quality of our product. If you need any further information about purchasing, distribution and maintenance, contact our regional agents or refer to our central office to the following address: russia, 143002, Moscovskaya oblast, odintsovskiy r-n, s.
