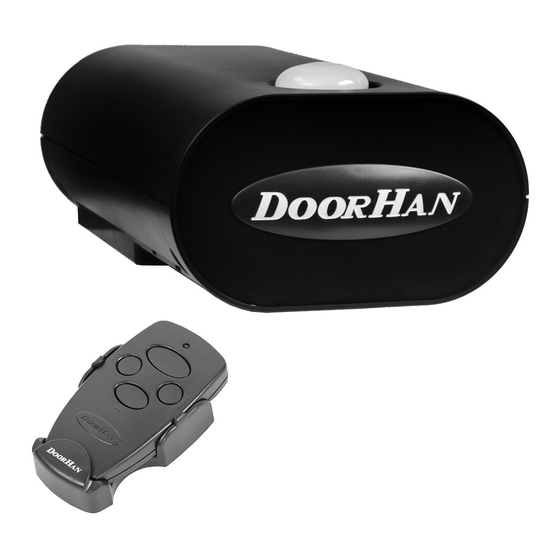

OPERATOR
SECTIONAL-750/1000/1200/FAST-750
Installation and Operating Manual
© DoorHan, 2014
GENERAL INFORMATION
SAFETY INSTRUCTIONS
OPERATOR UNIT
OPERATOR INSTALLATION
ELECTRICAL CONNECTIONS
OPERATOR PROGRAMMING
REMOTE CONTROL PROGRAMMING
MANUAL OPENING
MAINTENANCE
TROUBLESHOOTING
Actual versions
soft - v 1.0
pcb - v 1.0
2
CONTENTS
2
4
5
6
9
10
13
14
15
15

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Sectional-1000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for DoorHan Sectional-1000

  • Page 1 CONTENTS GENERAL INFORMATION SAFETY INSTRUCTIONS OPERATOR UNIT OPERATOR INSTALLATION ELECTRICAL CONNECTIONS OPERATOR PROGRAMMING REMOTE CONTROL PROGRAMMING MANUAL OPENING MAINTENANCE TROUBLESHOOTING OPERATOR SECTIONAL-750/1000/1200/FAST-750 Installation and Operating Manual Actual versions soft - v 1.0 pcb - v 1.0 © DoorHan, 2014...
  • Page 2: Table Of Contents

    Remote programming for Doorhan remote controllers ........
  • Page 3: Specifications

    ПРАВИЛА БЕЗОПАСНОСТИ УСТРОЙСТВО ПРИВОДА УСТАНОВКА ЭЛЕКТРИЧЕСКИЕ ПОДКЛЮЧЕНИЯ ПРОГРАММИРОВАНИЕ ПРИВОДА ПРОГРАММИРОВАНИЕ ПУЛЬТОВ ДУ РУЧНОЕ ОТКРЫВАНИЕ ПРИВОД ОБСЛУЖИВАНИЕ ДИАГНОСТИКА НЕИСПРАВНОСТЕЙ SECTIONAL-750/1200/FAST-750 Инструкция по монтажу и эксплуатации © DoorHan, 2012 Slotted bushing Guide fastening bracket Headroom bracket Straight arm fastening bracket Mounting bracket to the ceiling Remote control Fastening set № Name Quantity № Name...
  • Page 4: Track

    You should use additional DoorHan accessories, since the accessories of third party manufacturers can damage the auto-  matic system. DoorHan is not liable for unstable work of the automatic system, if you use safety devices and accessories, produced by other  manufacturers without securing approval of DoorHan.
  • Page 5: Operator Unit

    SAFETY INSTRUCTIONS You should not allow children to play in the door movement area during the operator operation. All remote control panels and  also stationary control buttons must be absolutely inaccessible for possible use by children. It is allowed to drive in and to pass only when the doors do not move and the operator is switched off. ...
  • Page 6: Operator Installation

    OPERATOR INSTALLATION 4. OPERATOR I NSTALLATION Set of spanners Set of drills for concrete Electric drill Set of slotted and cross screwdrivers Pliers Tape measure (folding rule) Set of drills for metal Hacksaw for metal 4.2. Requirments to door installation Prior to installation check if the door is properly bal- 45 мм...
  • Page 7 OPERATOR INSTALLATION NON-STANDARD INSTALLATION When doing a non-standard installation of the operator (at an angle of 90°). the microswitch.must be moved to a special place. To do this: Disconnect the bottom cover of the housing and disconnect the microswitch contact of the board. b) Disconnect the microswitch of the top housing cover.
  • Page 8: Track Installation

    OPERATOR INSTALLATION 4.4. TRACK INSTALLATION The operator suspension height is determined by the maximum lift of upper edge of the door leaf. After preliminary assembly (see p. 4.3) you can start to install the track: If it is required to shorten a guide, it is necessary to fulfill operations, described in Appendix 1. You should mark a vertical line, corresponding to the horizontal door centre (Fig.
  • Page 9: Electrical Connections

    ELECTRICAL CONNECTIONS 5. ELECTRICAL CONNECTIONS 5.1. Сontrol block technical specifications Parameters Specifications Power voltage 180–240 V / 50 Hz Accessories power voltage 24 V DC Accesories max. current 200 mA Working temperature range –20…+55°C Radio control frequency 433 MHz Operating logics Automatic/semiautomatic Connecting sockets Open button / safety device Lamp lighting time 3 min...
  • Page 10: Photocell Installation (Option)

    Install a jumper on the photodetector for work with the NC (normally closed) contacts.  Figure 6. OPERATOR PROGRAMMING 6.1. Operator control keys To gain access to the panel programming, remove the protective cover with the logo DoorHan. Radio code recording button –— «R» Programming button — «Р» Display unit Setting buttons — «+», «–»...
  • Page 11: Prepartion

    OPERATOR PROGRAMMING 6.2. Preparation Block the carriage. Turn on power, the indicator of the operator will light, sound signal will be heard. If programming has not been completed, the settings will not be stored. If there is a mistake in one of the settings, you can turn off power and reprogram.
  • Page 12: Warning Alarm Setup

    OPERATOR PROGRAMMING 6.7. Absolute cycle counter Press «+» «5» will light, press The 1st digit will be The 2nd digit will be «P» displayed displayed When entering the 5th point of menu, two digits will be displayed sequentially. After having displayed the digits, the program returns to main menu.
  • Page 13: Remote Control Programming

    4. All the remote controls will be added sequentially into the control block. 5. When the maximum quantity of remote controls is exceeded; three long beeps will sound. 7.2. Remote programming for Doorhan remote controllers 1. To press and hold the button «2» of the programmed remote control.
  • Page 14: Manual Opening

    MANUAL OPENING 8. MANUAL OPENING 8.1. Opening by means of integrated carriage releasing device Manual disengagement of automatic system Manual door control Figure Locked position Pull the cord down and Unlocked position move the rod to the position shown in the Figure Automatic door control Figure Unlocked position Pull the cord down and Locked position move the rod to the position shown in the Figure In the event of main power failure...
  • Page 15: Maintenance

    9. MAINTENANCE The Sectional-750/1000/1200/Fast-750 automatic system does not require any special servicing.  Repairs may be carried out only by a qualified technician trained and certified at an authorized DoorHan  centre. Be sure that after completion of installation the installer has shown the user how to release the door in case ...
  • Page 16: Appendix 1

    APPENDIX 1 APPENDIX 1 GUIDE CUTTING Unpack a guide and inspect it. Make sure that the guide is not damaged. If you have found any damages, please contact the supplier. Disassemble a chain tensioner mechanism, pos. 1 (Fig. 1). Figure 1 Unfasten screws of a sprocket holder, pos.
  • Page 17 APPENDIX 1 Disassemble a support, pos. 4, into two parts (Fig. 4). Figure 4 Cut the guide and shorten the chain to the required dimensions (Fig. 5). Figure 5 After cutting assemble the guide in reverse order.
